Mindray DC-70 Service Manual

Structure and Assembly/Disassembly 9-51
No. Device Name Port Description

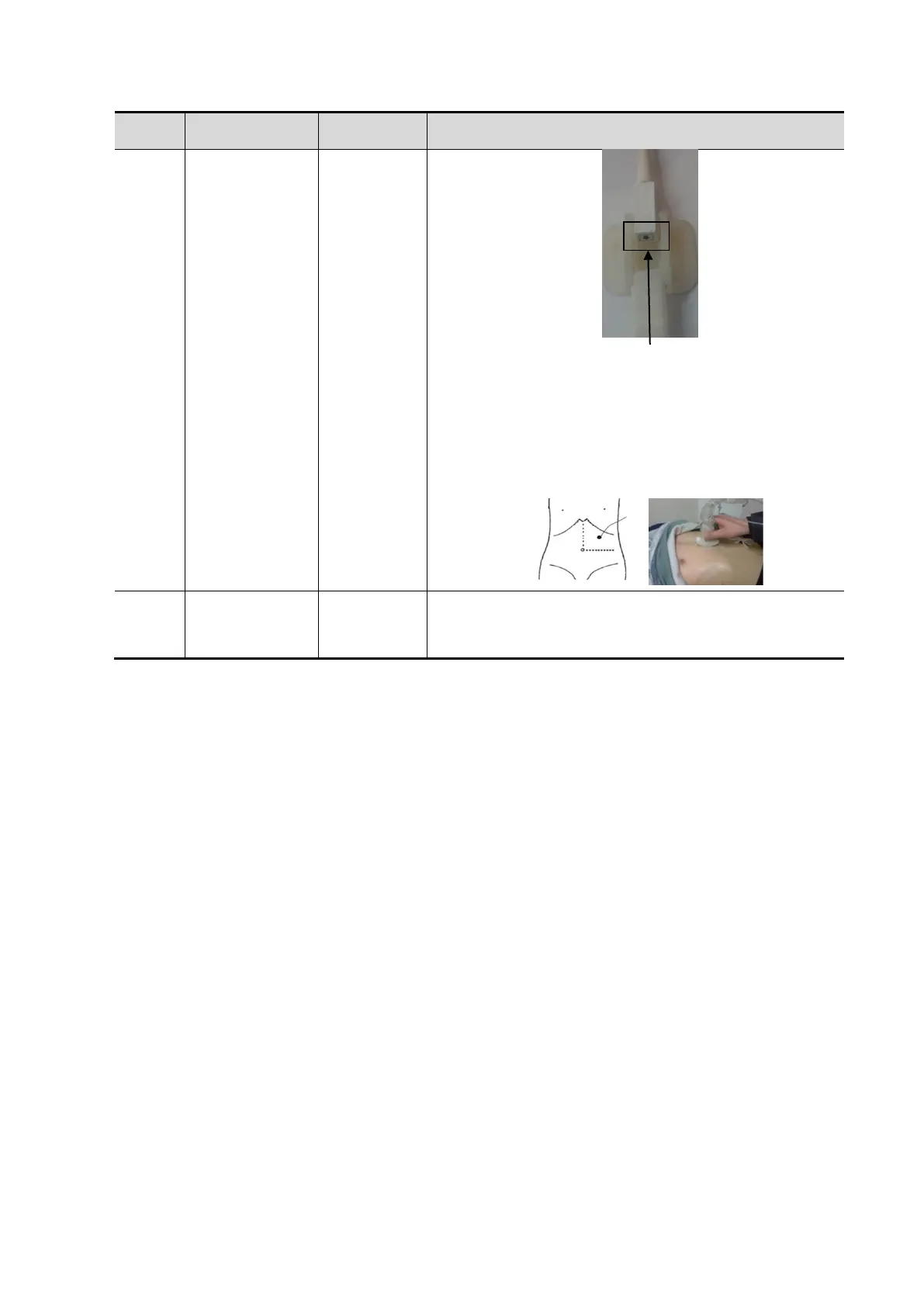

5. Motion (abdomen) sensor support: stick the sensor
support against the top left of the patient’s
abdomen with the medical plasters (below left
costal arch, right above the navel, the area where
the skin moves apparently with the respiration).
<9>
Magnetic
navigator
/
Place the magnetic navigator behind the Ultrasound
System. Power on the navigator to enable the
positioning function.
Face downward

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
