Mindray DC-70 Service Manual

Optional Installation/Assembly 10-5
10.2.1 ECG Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. Remove the left/right side panels and the front cover (refer to chapter 9.3.2).

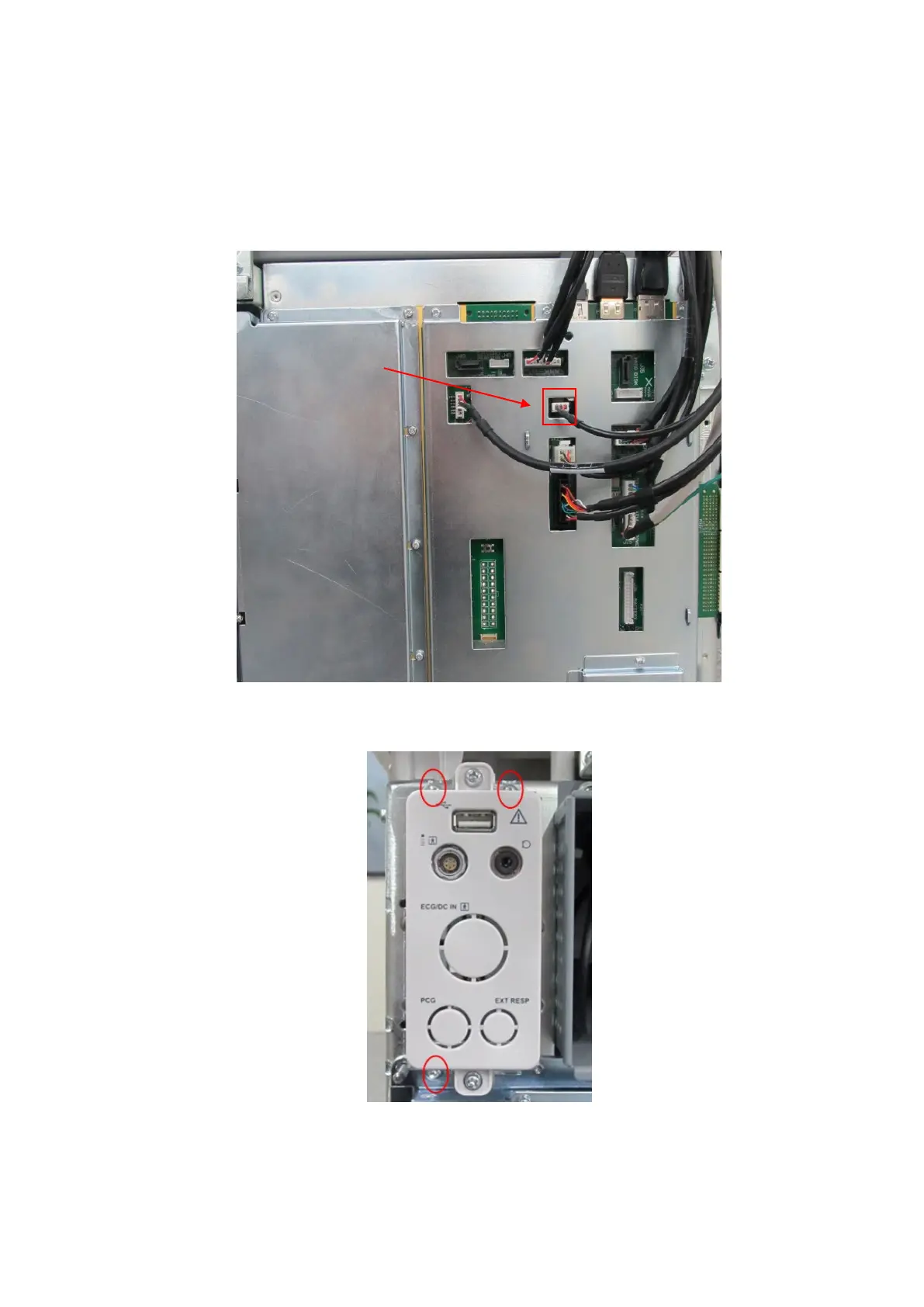

2. Unplug MIC cables of front output panel, and release the clasp.
3. Unscrew three M4 X 8 screws fixing the assembly of front output panel, and pull the assembly
of front output panel out.
4. Fix three M4 X 8 screws on ECG assembly and assemble ECG.
MIC

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
