Mindray DC-70 Service Manual

10-6 Optional Installation/Assembly

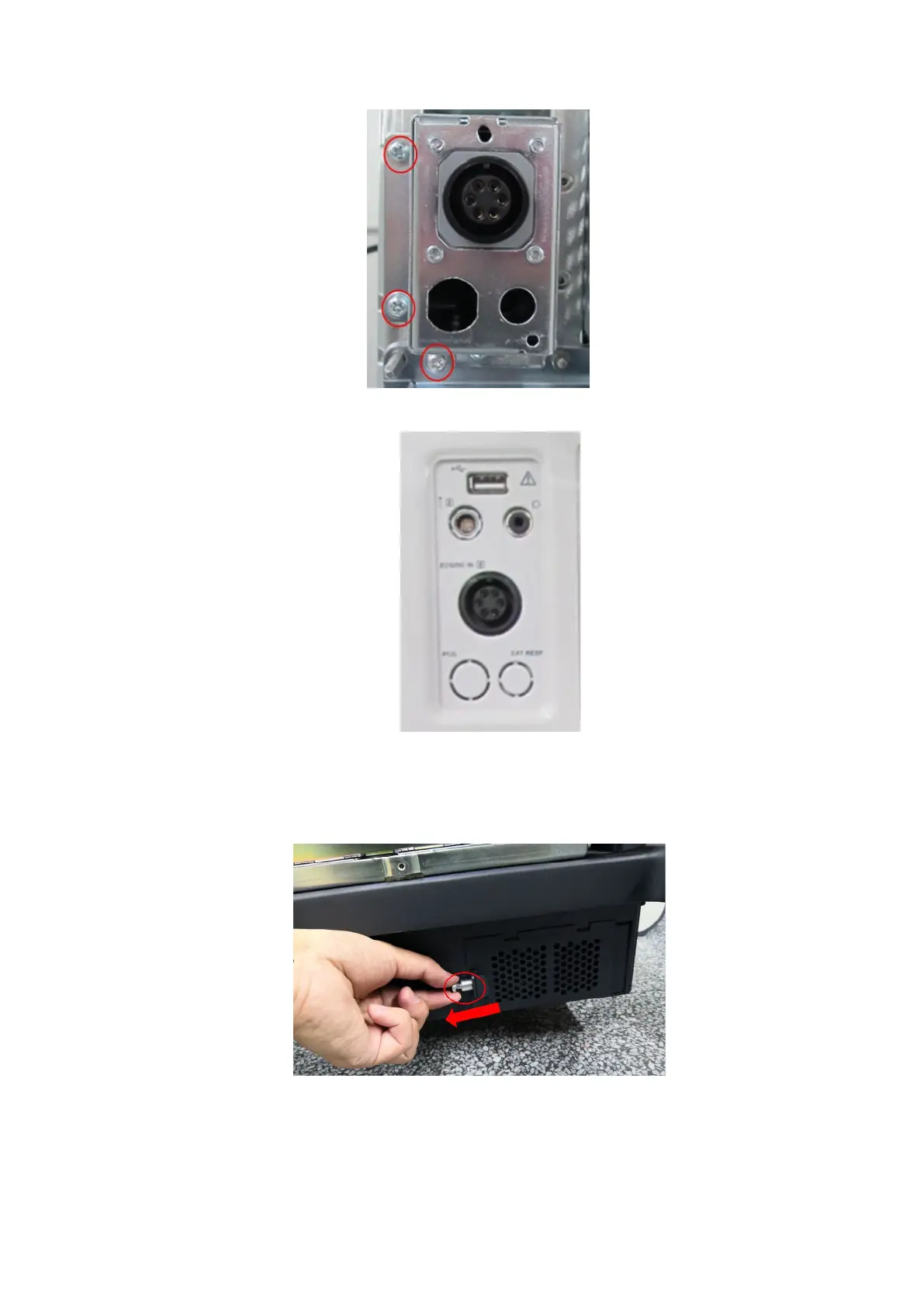

5. Install the output board, left/right side panels and front cover in reverse order.
10.2.2 Battery Assembly
1. Pull out the spring plunger in the direction of the arrow, and open the electronic assembly door
on the base.
2. Mount the battery on the electronic assembly.

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
