Field Replaceabl
e Unit
7-3
7.2

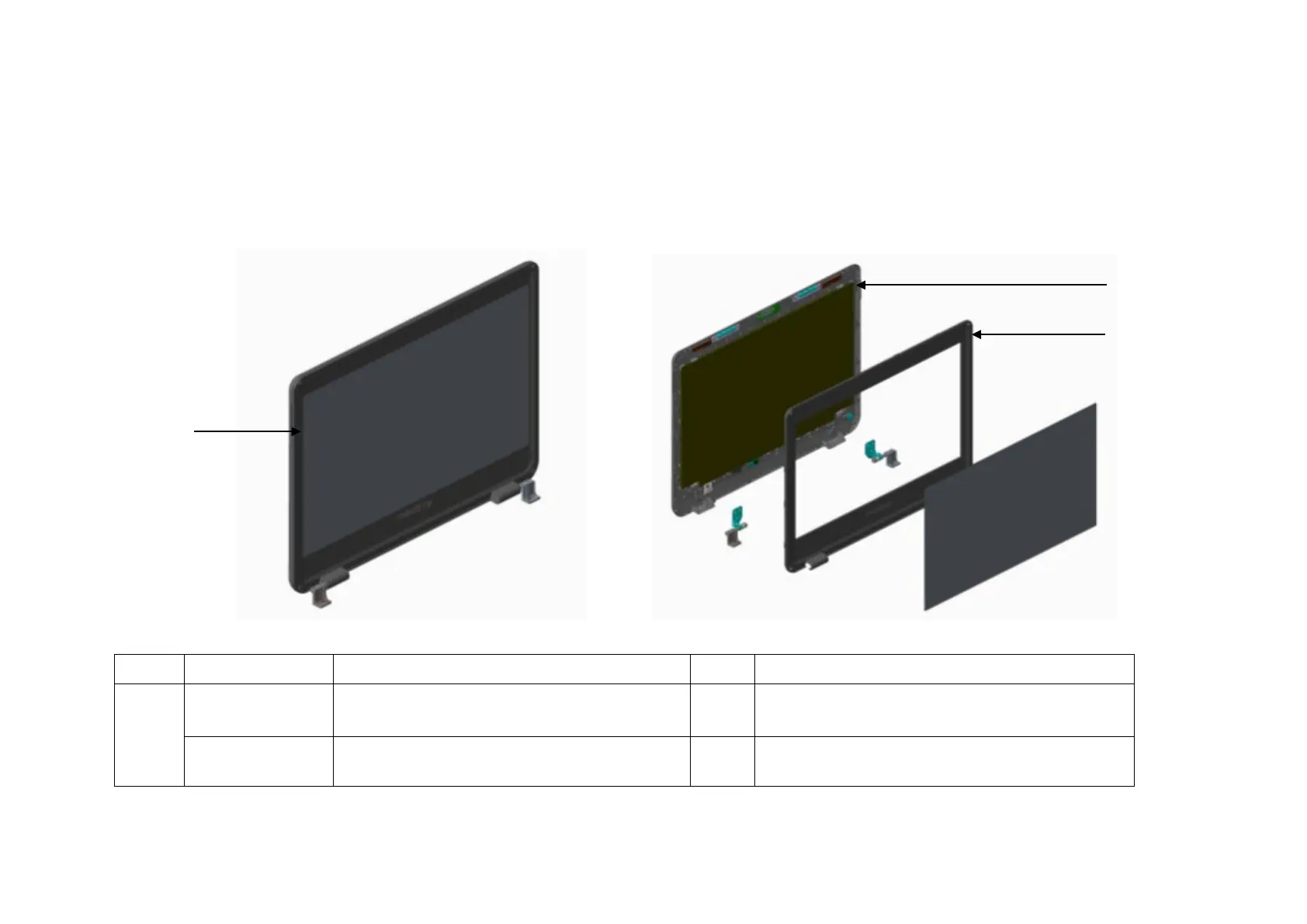

Assembly
Explosi
ve
Vi
e
w
7.2.1
Monitor Assembly
(A0)
No.
Order Number
Part Name
Qty.
Remark
A1
115
-
048328
-
00
Monitor Assembly (eDP screen/FRU)
1
eDP signal, for repairing new M9(SN starts with
CC1,CC2,CC3, CC4,CC5) only
115
-
048329
-
00
Monitor Assembly (LVDS2eDP/FRU)
1
LVDS
to eDP
signal, for repairing old M9 (SN
starts with 7B, 7C,7D,8K,CAW) only
A1
-1
A1
A1
-2
116
118
Table of Contents
Table of Contents
3
Version Information
9
Intellectual Property Statement
11
Applicability
11
Responsibility of Mindray
11
Warranty Statements
12
Customer Service Department
12
Descriptions Committed
13
Safety Precautions
15
Meaning of Signal Words
15
Symbols
15
Meaning of Safety Symbols
15
Warning Labels
16
General Symbols
16
Safety Precautions
17
Electric Safety
18
Mechanical Safety
19
Personnel Safety
19
Others
19
Product Specifications
21
Introduction
21
Intended Use
21
System Appearance
21
Trolley Appearance
30
Peripherals Supported
33
Specifications
34
External Dimensions and Weight
34
Electric Specifications
34
Environment Specifications
35
Monitor Specifications
35
System Installation
37
Installation Preparations
37
Electrical Requirements
37
Installation Condition
38
Installation Confirmation
38
Unpacking
38
Unpacking Process
38
Check
43
Installation of Whole Device
43
Connecting Power Cable
43
Connecting ECG
43
Connecting a Ultrasound Probe
43
Installing Peripherals
44
Connecting the Footswitch
44
Connecting/Removing a USB Memory Device
44
Graph/Text Printer
45
Video Printer
47
Barcode Reader
48
Wired Network Connection
53
System Configuration
53
Power-On Running
53
Enter Doppler
53
System Preset
54
Print Preset
55
Network Preset
56
Network Configure
60
DICOM/HL7 Preset
66
Security
68
System Information Verification
71
Product Principle
73
General Structure of Main Unit's Hardware System
73
Main Board
74
Power Supply
75
Backend
75
Front-End of Main Board
77
TR64 Board
78
Probe Board
78
PHV Power Supply Board
79
ECG Unit
79
Control Panel
81
Main Display Unit
82
Probe Extension Board
83
Audio/Video Transfer Module
84
USB HUB Board
85
Trolley Power Supply
85
Connection Board of Trolley Power Supply
86
AC_DC Power Supply
86
Management Board of Trolley Battery
86
System Power-On Control
87
Internal Connection Diagram of Main Unit and Trolley
89
Details in Main Unit's Power-On
89
Checking Performance and Functions
91
Description
91
Checking System Status
91
Running Status
91
Working Condition
91
General Check
92
Check Flow
92
Check Content
92
Functions Checking
95
Checking Flow
95
Checking Content
95
Performance Test
101
Test Procedures
101
Test Content
102
Software Installation & Maintenance
107
Enter Maintenance
107
Software Installation/Restoration
108
Enter Windows
111
Software Maintenance
112
Log Export
112
Data Backup and Storage
112
Preset Data Management
112
Patient Data Backup and Restoration
113
Introduction on HDD Partition Data
113
Field Replaceable Unit
115
Explosive View
116
Assembly Explosive View
117
Monitor Assembly (A0)
117
Control Panel Assembly (B0)
119
Main Unit Assembly (C0)
121
Cables (D0)
126
Accessories (E0)
127
Mobile Trolley (F0)
129
Structure and Assembly/Disassembly
131
Structure of the Complete System
131
Main Unit
131
Mobile Trolley
132
Main Unit Assembly/Disassembly
133
Preparation
133
Battery
134
Dust-Proof Mesh of Main Unit
135
Network Adaptor
136
SSD Card
137
Control Panel and Monitor
138
ECG Assembly
140
Fan
142
Probe Board Assembly
142
Machine Board Assembly
144
Control Panel Assembly
148
Display (Monitor) Assembly
153
Trolley Assembly/Disassembly
157
Preparation
157
Storage Box
158
Power Supply Assembly
159
Trolley Panel Board Assembly
163
Spring Assembly
164
Cast-Aluminum Base of Trolley Panel
170
Lifting Column
172
Trolley Base Assembly
173
Installation of Probe Holder
175
Disassembly of the Probe Holder
177
Disassembly of Intracavity Probe Holder
177
Installation of Option Modules
181
Installation of Optional Devices to Software
181
Installation of the Accessory Kits and Optional Devices to Hardware
183
Storage Tray
184
Probe Extender Assembly
184
Audio/Video Extender Assembly
185
Trolley Installation
186
System Diagnosis and Support
189
General Status Indicator
189
Indicators of Control Panel
189
Status of Whole Machine
190
Get Whole Machine Started
191
Power-On Process of Whole Machine Supplied by AC
192
The Start-Up Process of BIOS
192
Windows Start-Up
192
The Start-Up of Doppler
193
Alarming and Abnormal Information
195
Power Error
195
Abnormal Voltage of System Power
197
Abnormal Temperature
197
Fan Error
198
PHV Error
198
Other Errors
199
Self-Test
199
Self-Test Introduction
199
Operation Procedure of Maintenance Self-Test
200
User Self-Test
204
Test Report
206
Care and Maintenance
209
Overview
209
Tools, Measurement Devices and Consumables
209
Routine Maintenance Items
210
Cleaning
211
System Cleaning
211
Peripherals Cleaning
215
Check
215
General Check
215
System Function Check
216
Check for Peripherals and Optional Functions
216
Mechanical Safety Inspection
217
Troubleshooting of Regular Malfunctions
219
Troubleshooting as the System Is Disabled to Power on
219
Related Modules or Boards
219
Key Points Supporting Troubleshooting
219
The System Cannot Perform Troubleshooting
220
Related Modules or Boards
220
Key Points Supporting Troubleshooting
220
The System Cannot Perform Troubleshooting
221
Image Troubleshooting
221
Related Modules or Boards
221
Key Points Supporting Troubleshooting
221
Image Troubleshooting
222
Troubleshooting Control Panel
222
Related Modules or Boards
222
Key Points Supporting Troubleshooting
222
Troubleshooting Control Panel
223
Troubleshooting LCD Display
223
Related Modules or Boards
223
Key Points Supporting Troubleshooting
224
Troubleshooting Monitor
224
Troubleshooting for ECG Module
224
Related Modules or Boards
224
Troubleshooting for ECG Module
225
Appendix A Electrical Safety Inspection
227
Appendix B Phantom Usage Illustration
245
Appendix C Description of Self-Test Test Items
247
