Mindray M8 User Manual

8-14 Structure and Assembly/Disassembly

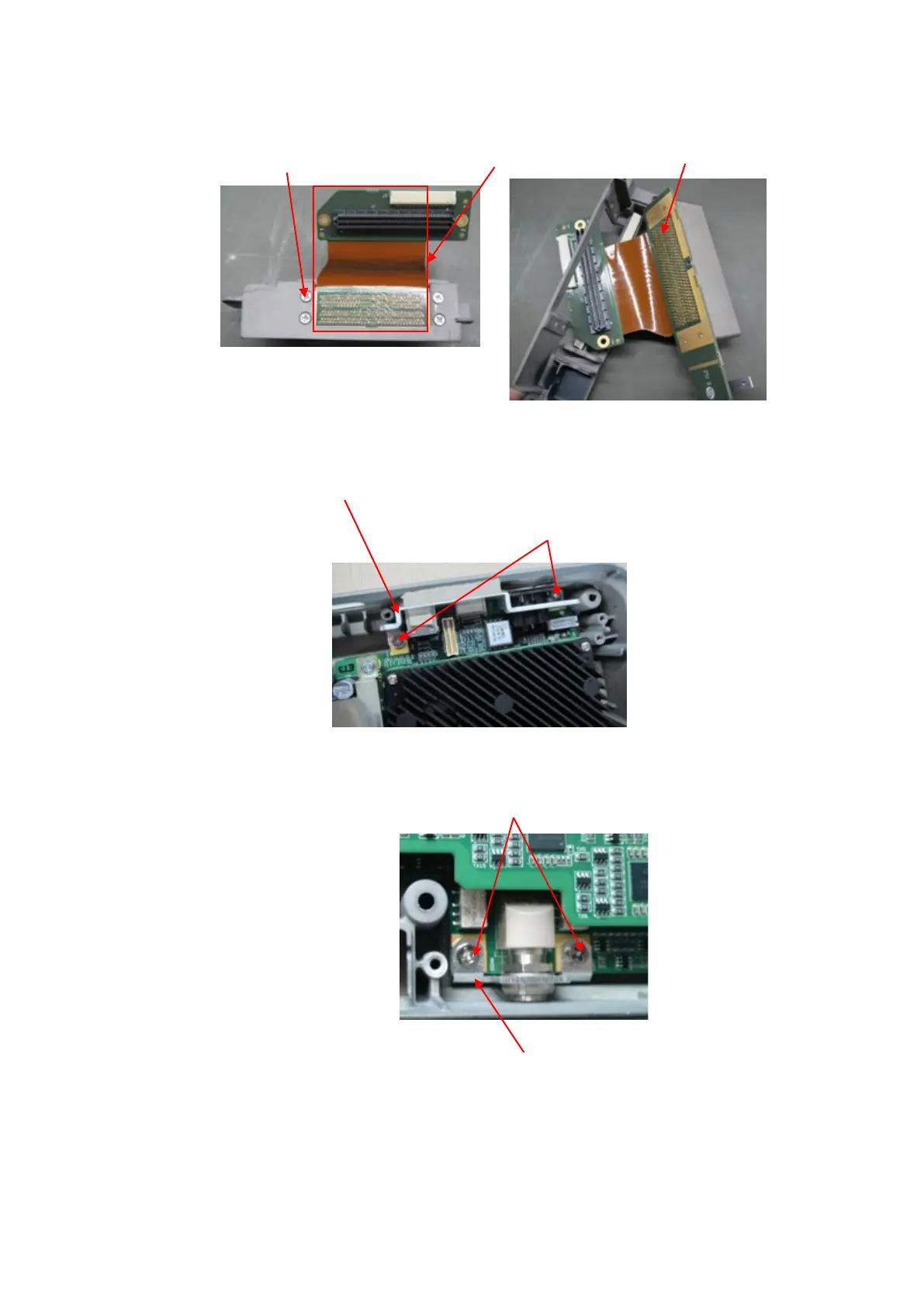

6. Disassemble IO fixing bracket, fixing bracket of pencil probe structure.
Unscrew 2 screws on IO fixing bracket (M3 X 8 Nylok screw). Take out IO fixing bracket.
Unscrew 2 screws on the fixing bracket of pencil probe (M3 X 8 Nylok screw).
8.2.10 Machine Board Assembly
1. Remove control panel and monitor assembly. See Chapter 9.2.4 for details.
M3 X 8 Nylok screw (2 screws)
Fixing bracket of pencil probe
M3 X 8 Nylok screw (2 screws)
IO fixing bracket
M3 X 8 Nylok screw (4 screws)
Probe board
Probe socket
