9-6 Installation of Option Modules
9.2.4 Trolley Installation
The service staff installs the trolley according to the following steps after receiving the package:
1. Open the package. See Chapter 3.2.1.1 for details.
2. Install the holders on right and left sides.
As shown in the following figure a) and b), place the probe holder into the holes of the left and
right plate of the trolley. The probe holders that are installed are shown in figure c.

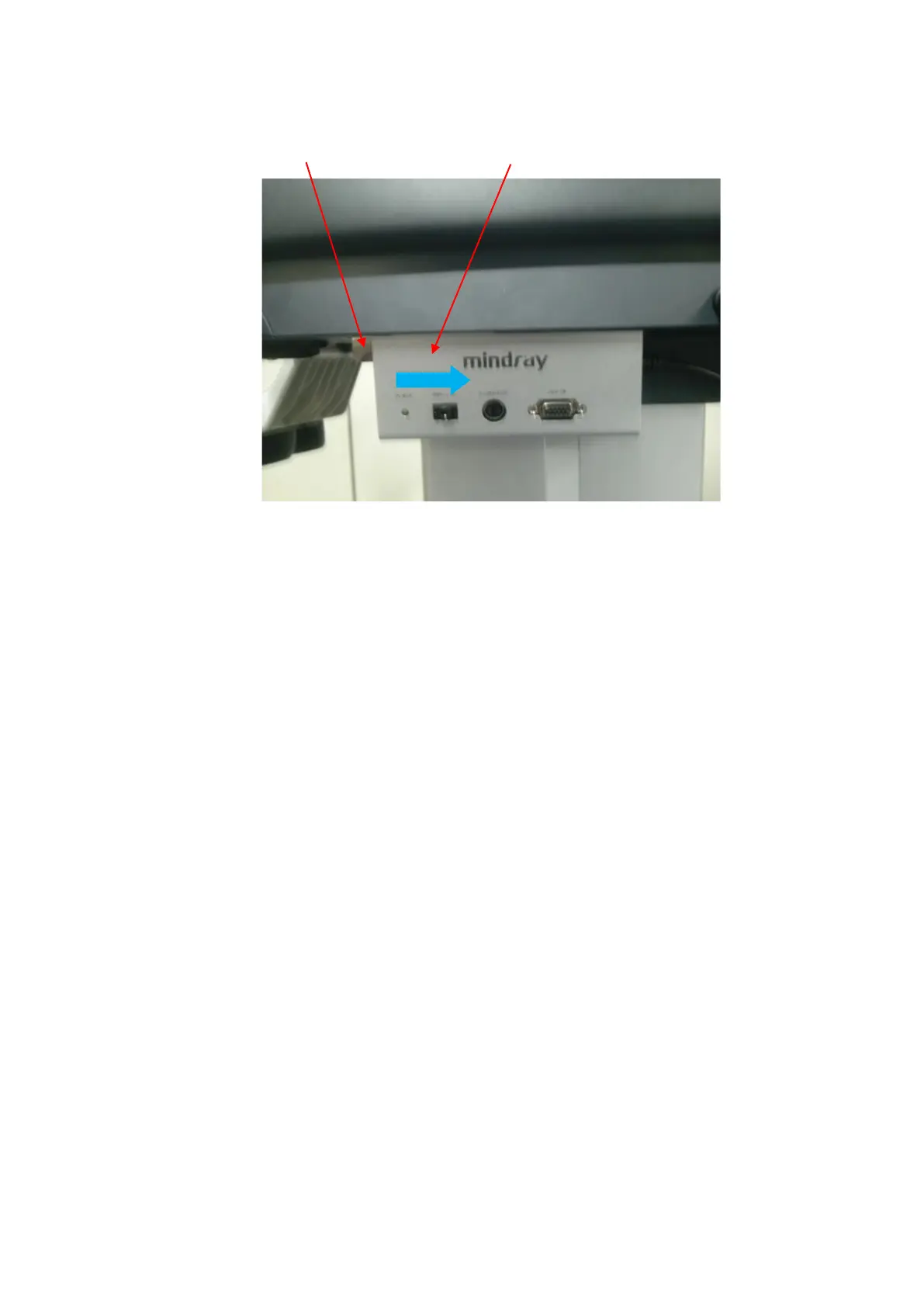

Audio/video extender assembly
