Installation of Option Modules 9-7
Figure 9-4 Installation for holders on right and left sides
3. Install cable hook

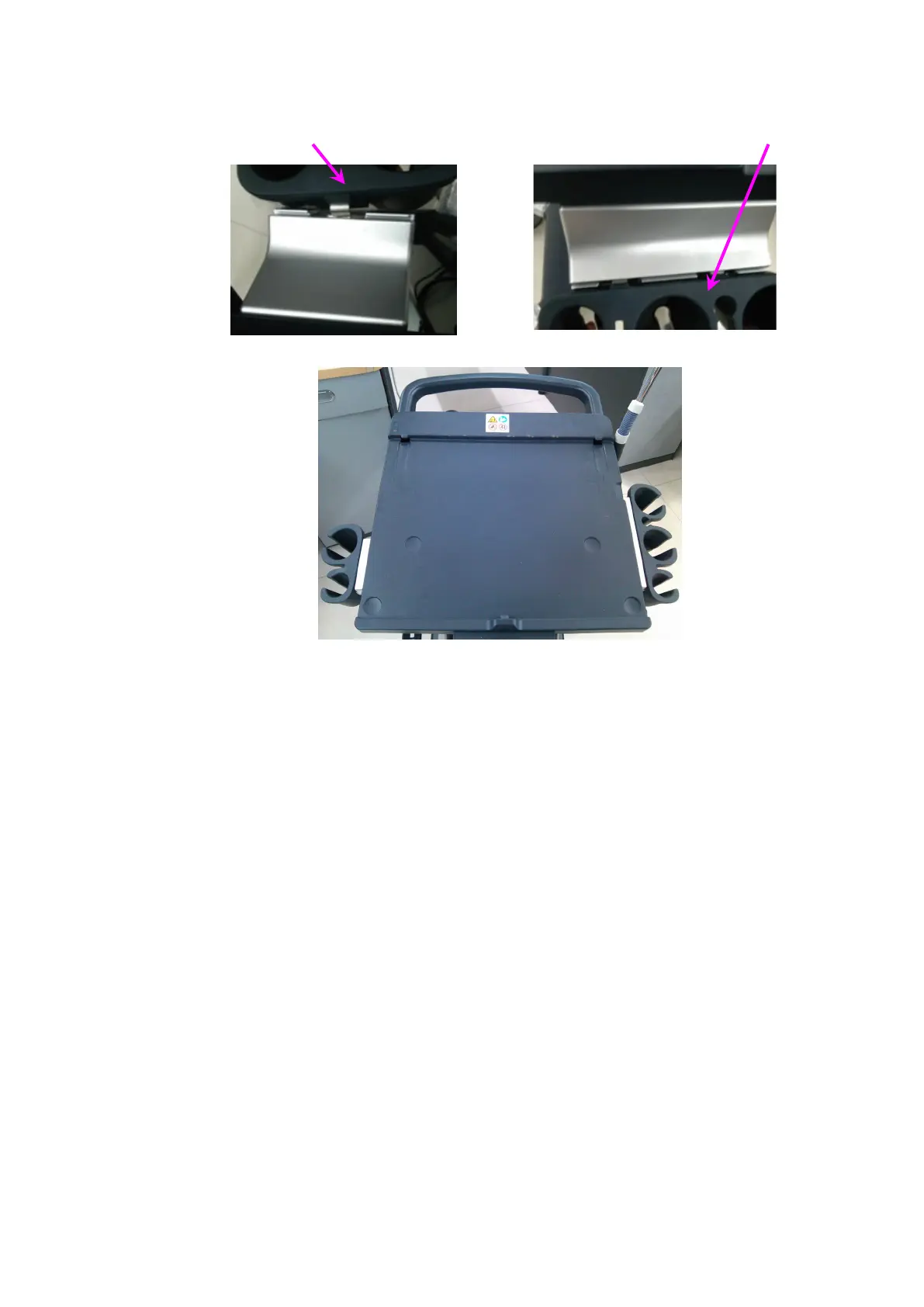

As shown in figure 1, aim the installation axis’s rabbet of probe hook assembly at the screw of
fixing base, and then insert the probe hook assembly to the fixing base. Rotate the assembly
anticlockwise to fix it (see figure b).The probe holders that are installed are shown in figure c.
Holder on right side
Holder on left side
a)
b)
c)
