10-16 System Diagnosis and Support

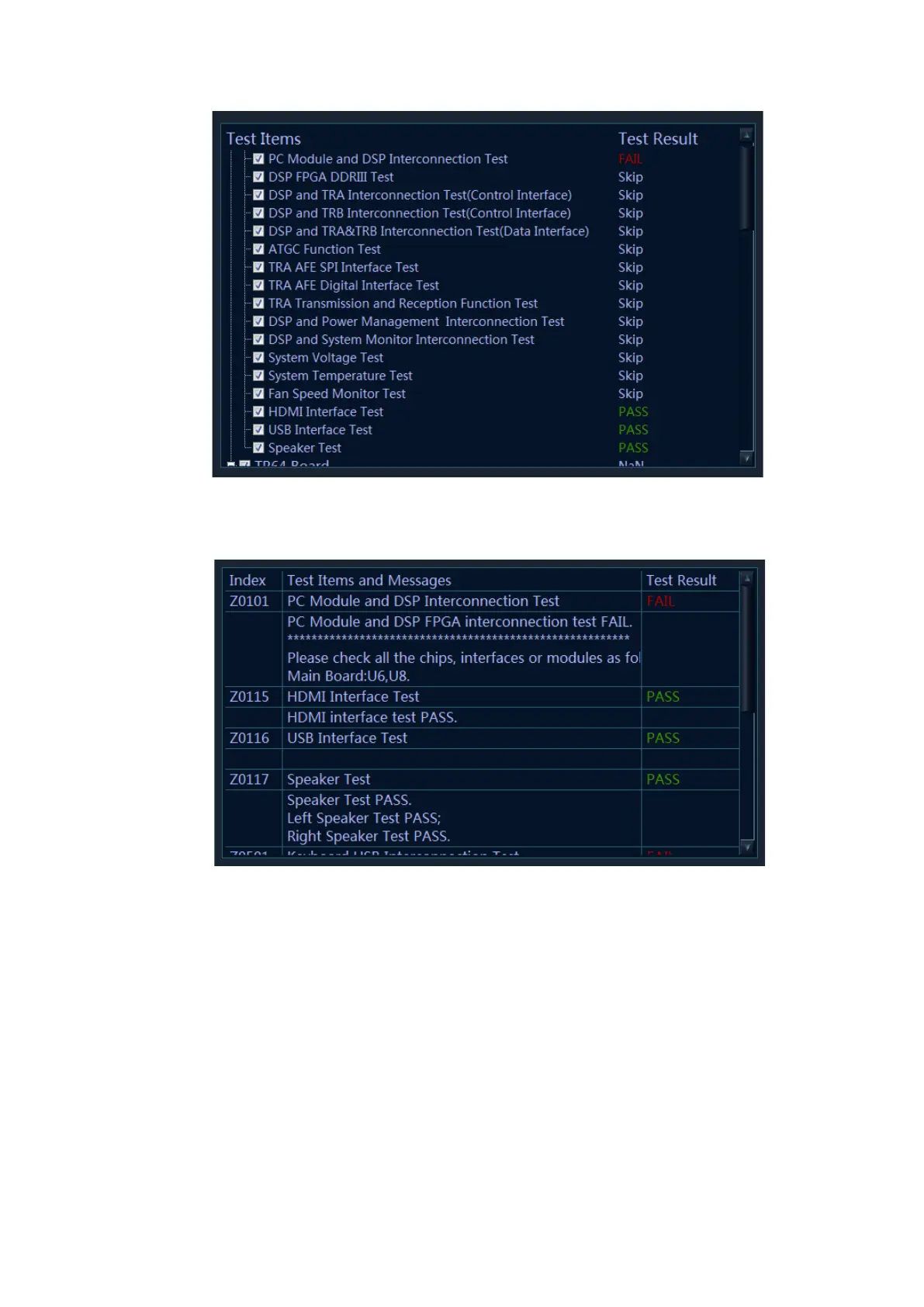

Figure 10-4 Display of test result in Testitems table
Click each test item in Testitems list. The program search for corresponding test result of test
item and displays it in details, as shown below.
Figure10-5 Display of test result in Messages table
The number to the test item appears in front of the name of test item. The number format is:
ZXXYY and all test items are started with "Z". XX represents sequence number of the first
level for item test and YY represents the second level. For example: the number of System
Voltage Test is Z0210, in which 02 is the second test item of the first level directory in Main
Board, and 10 is the tenth test item of System Voltage Test in Main board.
10.4.3 User Self-test
Start the device. Press <Setup> button. Select [Maintenance]-[Setup]-[Self Test] to perform the
operation.
