Field Replaceabl
e Unit
7-5

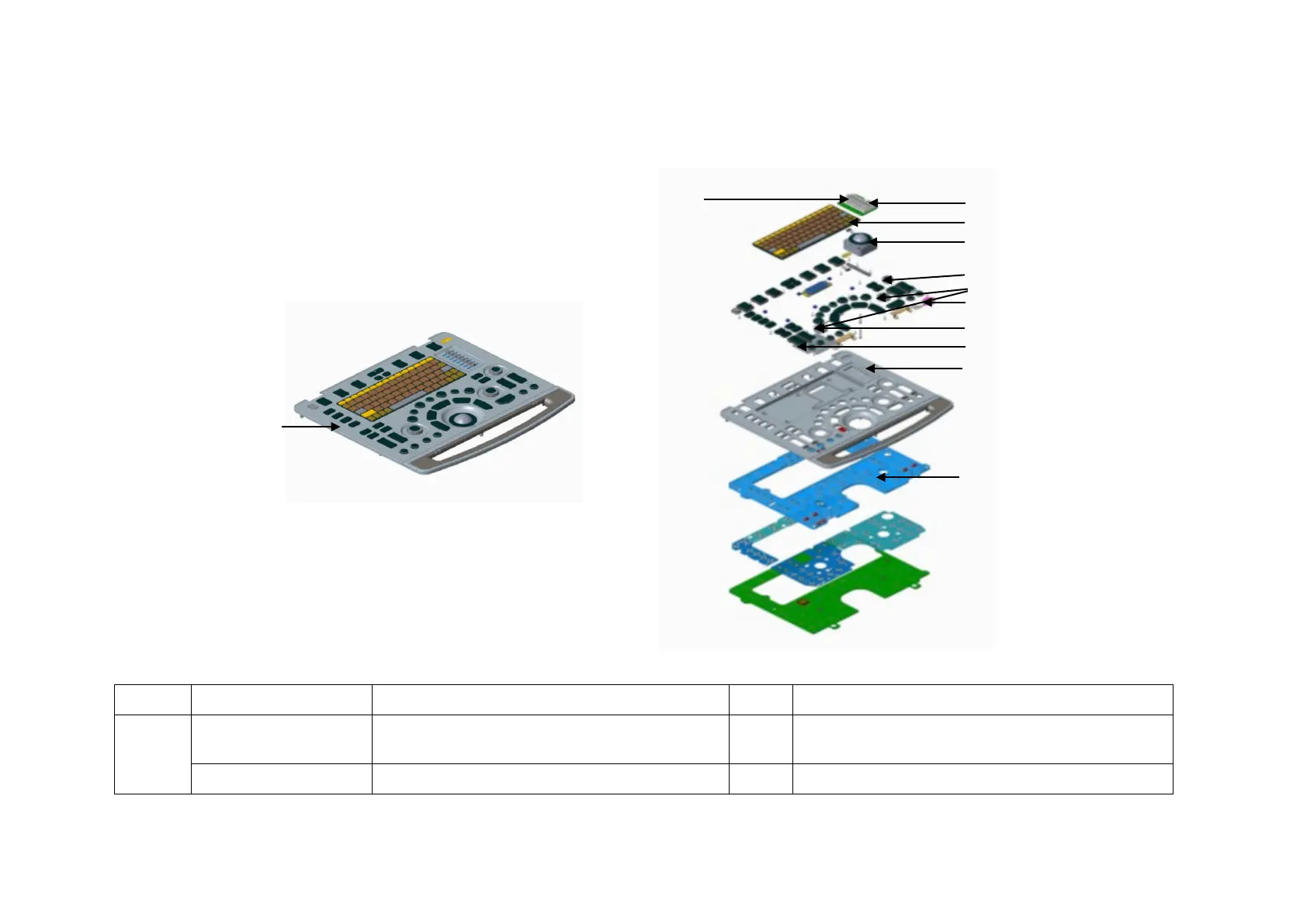

7.2.2
Control
Panel Assembly
(B0)
No.
Order Number
Part Name
Qty
.
Remark
B1
115
-
023071
-
03
Control Panel Assembly(FRU)
1
For M9 series, not including trackball, small PC
keyboard, and TGC board.
115
-
055540
-
02
Control Panel Assembly(M8 Series/FRU)
1
For M8 series, not including trackball, small PC
B1
B4
B2
B3
B5
B1
-6
B1
-2
B1
-3
B1
-4
B1
-5
B1
-1
B1
-7
118
120
