Mindray M8 User Manual

Structure and Assembly/Disassembly 8-29
8.3.3 Power Supply Assembly

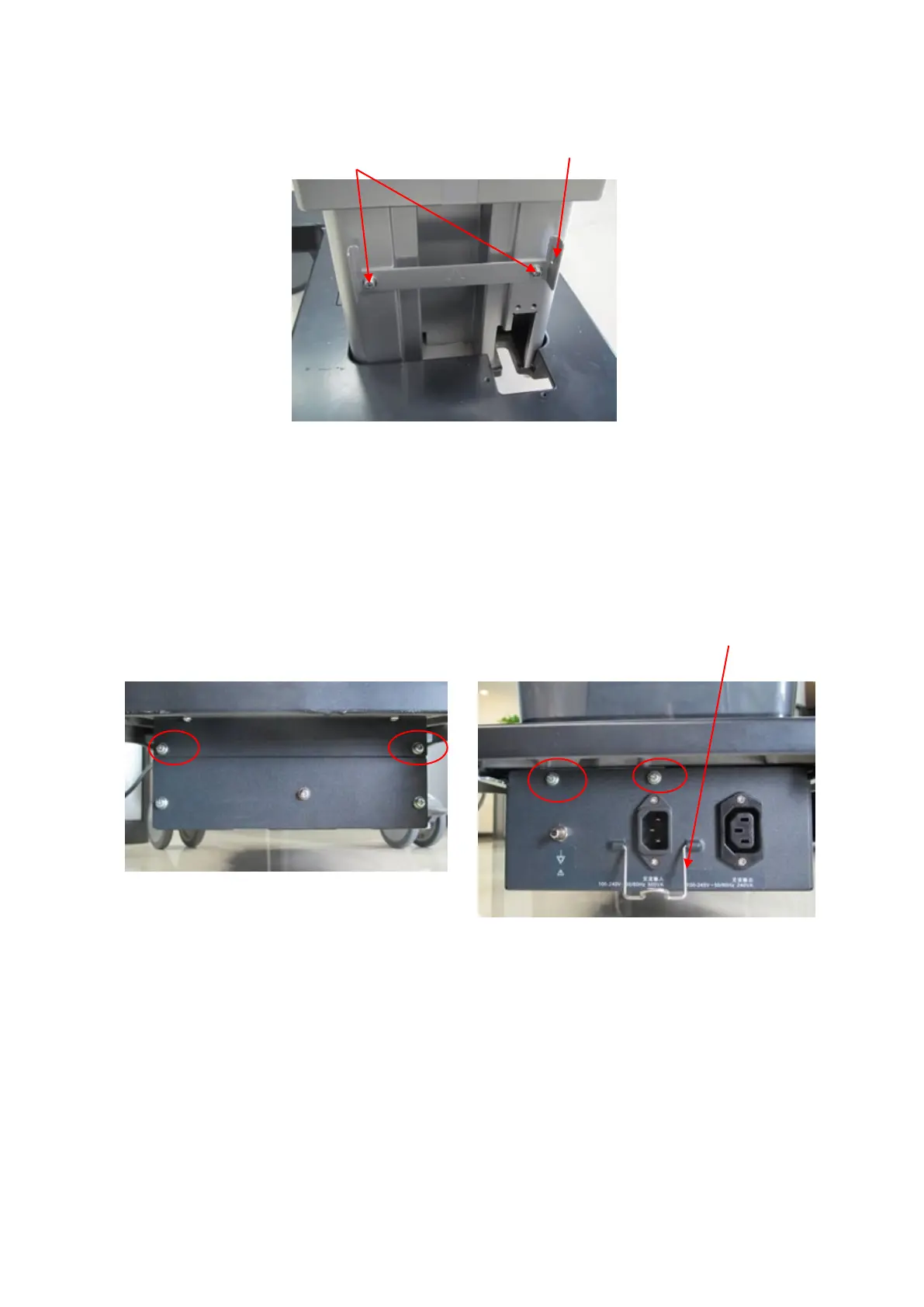

1. Unscrew two M4X10 stainless steel round inner head screws (with the pad) on the front of the
main unit, and then disassemble two M4X10 stainless steel round inner head screws (with the
pad) on the back of the main unit. Pull out the power supply assemble by the metal handle.
2. Remove dust-proof mesh
Press the clip outwards (arrow 1). Pull out the plastic clasp towards the arrow 2’s direction.
Two M4X10 stainless steel
round inner head screws
(with the pad)
Metal handle of
power supply
assembly
Two M4X10 stainless steel
round inner head screws
(with the pad)
M4X12 cross panhead
screw (2 screws)
Bracket of storage box
