System Diagnosis and Support 10-17
D
i
s
p
l
a
y
a
r
e
a
o
f
-
t
e
s
t
i
t
e
m
s
S
t
a
t
u
s
b
a
r
M
o
n
i
t
o
r
i
n
g
i
n
f
o

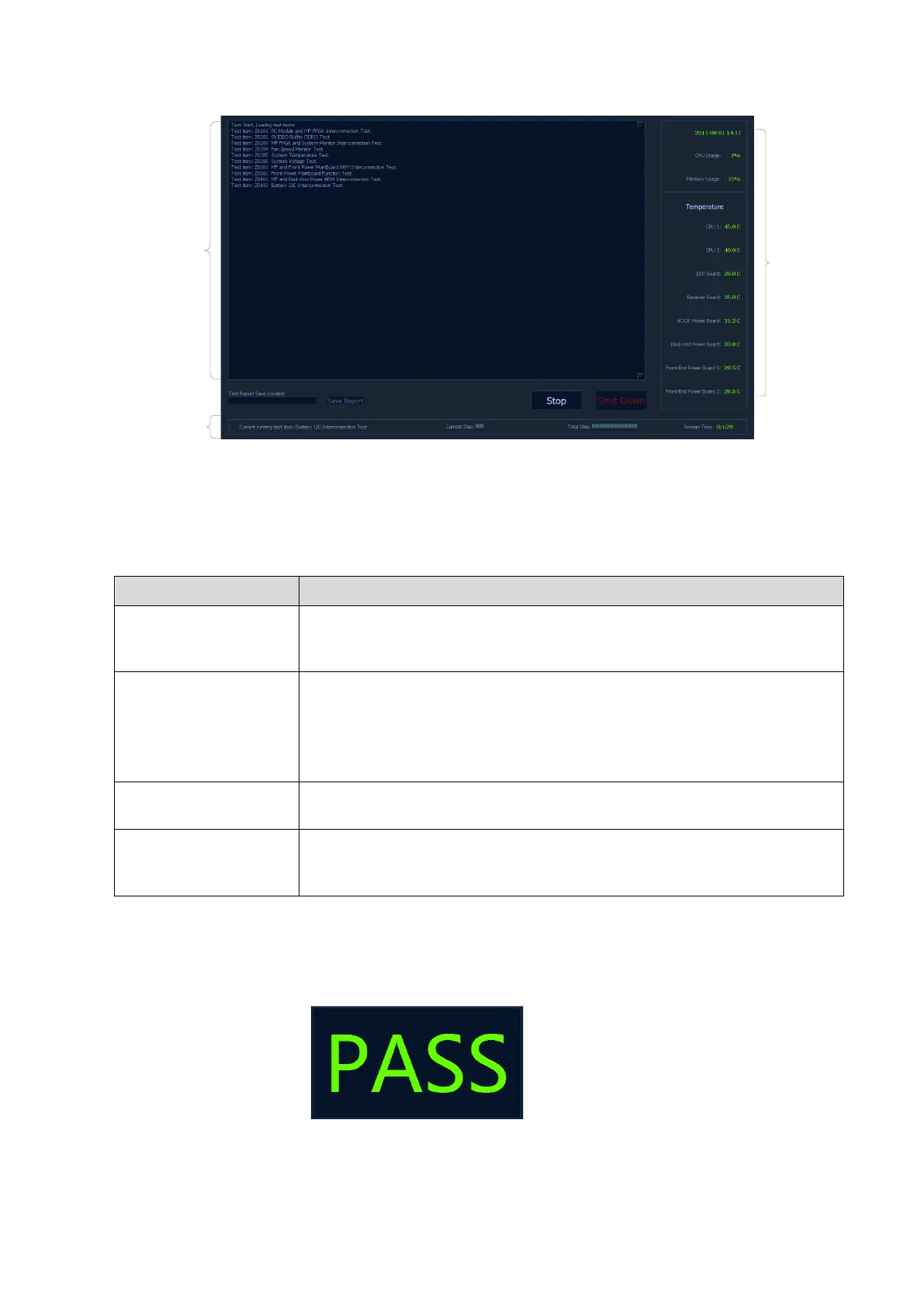

Figure 10-6 User self-test interface
There are three divisions in user self-test interface: display area of self-test item, monitoring
information bar and status bar. The functions on monitoring information bar are same with those
on user self-test interface. The self-test area only displays the item that has been tested, but not
the test result.
Start the test when entering user self-test. After finishing the test, the number of test item only
displays on the screen if there is FAIL test item. For example, if System Voltage Test fails, only
does Z0210 display on the screen. It is available for user to notice that Z0210 corresponds with
test item System Voltage Test by viewing Appendix.
The dialog box of PASS appears only with all test items passing, as shown below:
Item Description
[Start/Stop] button Click to perform tests for checked items one by one while the button turns
to [Stop]. During the test, if you click [Stop], the test stops. After the test is
completed, the [Stop] button turns to [Start], and waits for the next test.
[Test Report Save
Location] Check box
Displays the logic drive of removable storage medium (USB flash disk,
removable hard disk, etc) connecting to the system. The check box is
disabled in test process.
If there is no removable storage medium, click the control which reminds
the user of inserting the removable storage medium.
[Save Report] button Save the test data to the root directory of selected logic drive. The button
is disabled when the logic drive is deselected or in test process.
[Shut Down] button Close the program, and shut down the device. The system reminds the
user of saving the test report to removable storage device when shutting
down the device.
