Mindray M8

Structure and Assembly/Disassembly 8-15

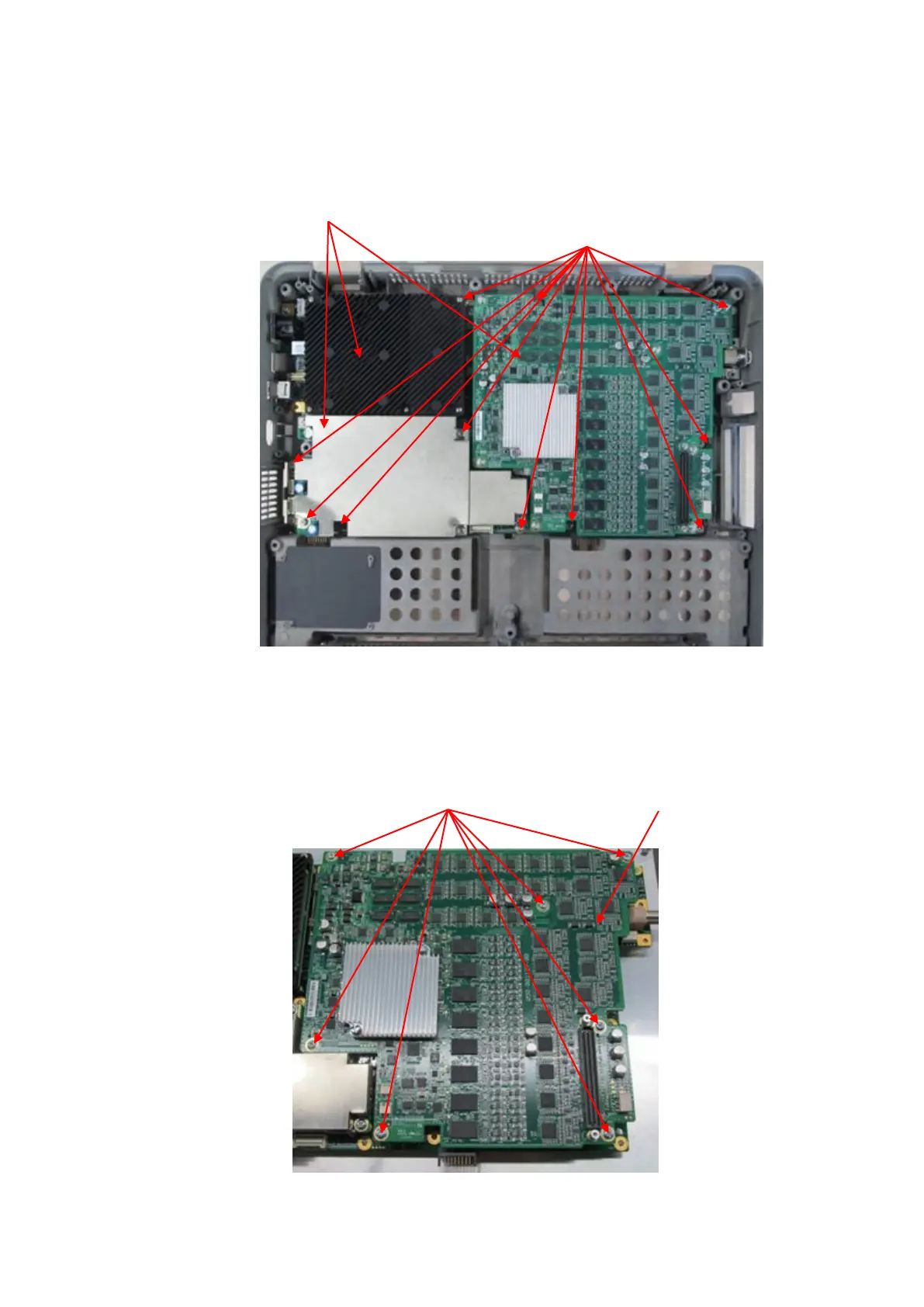

2. Disassemble machine board assembly.
Unscrew 11 screws (M3 X 6 cross panhead screw). Take out the machine board assembly.
3. Disassemble TR64 board
Unscrew 7 screws on TR64 board (M3 X 6 cross panhead screws). Take out TR64 board with
forces.
M3 X 6 cross panhead screw
(7 screws)
TR64 board
Machine board
assembly
M3X6 cross
panhead screw
(11 screws)
