8-16 Structure and Assembly/Disassembly
4. Disassemble PHV power supply board

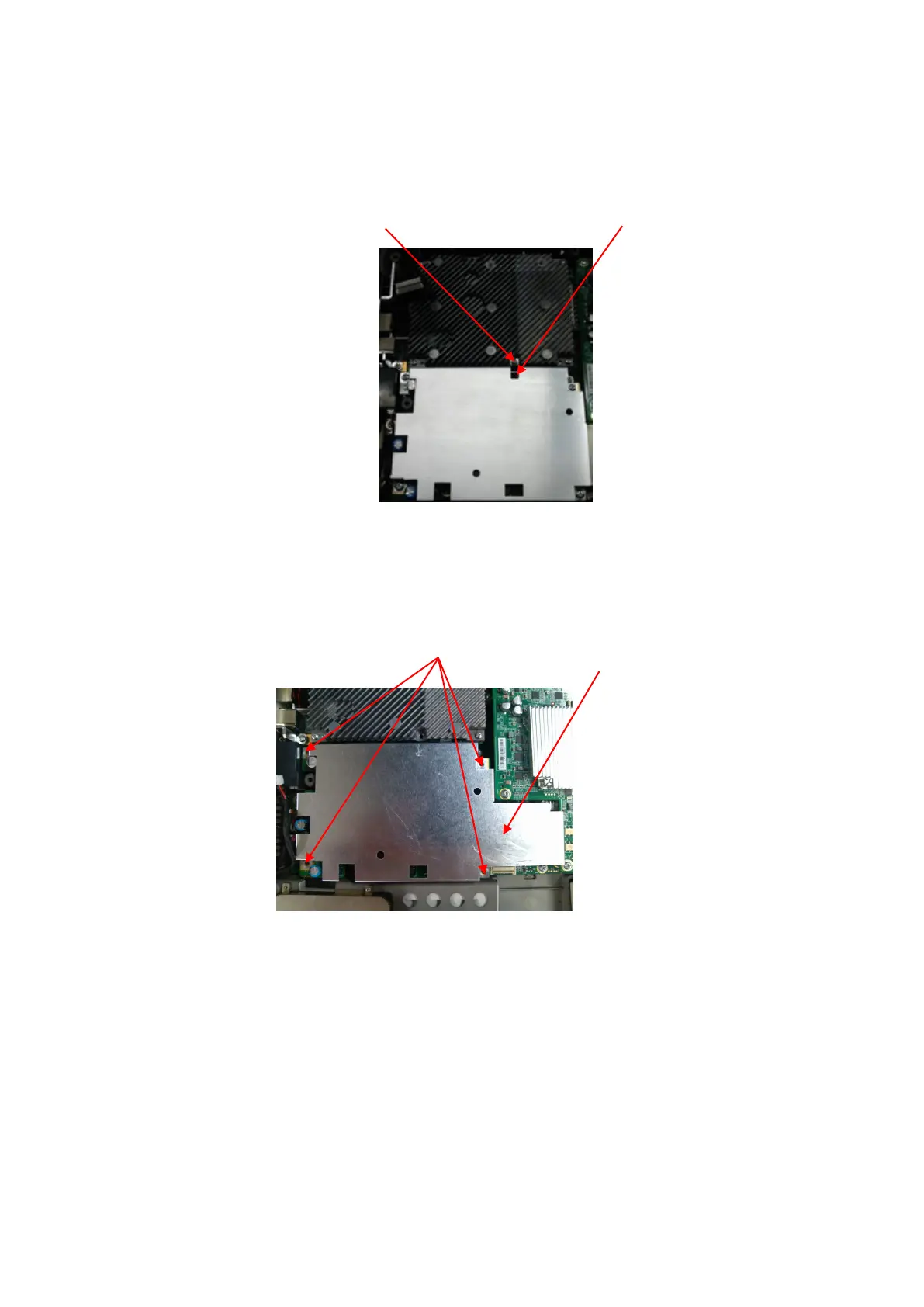

Unscrew one screw on grounding elastic sheet (M2.5 X 12 cross panhead screw)
Unscrew 4 screws on larger shield cover of PHV board (M3 X 6 cross panhead screw).
Remove the larger shield cover of PHV board.
Unscrew 1 screw on smaller shield cover of PHV board (M3 X 6 cross panhead screw).
Remove the smaller shield cover of PHV board and PHV board.
M3 X 6 cross
panhead screw
(4 screws)
Larger shield
cover of PHV
board
M2.5 X 12 cross panhead
screw (1 screw)
Grounding elastic sheet
