Structure and Assembly/Disassembly 8-19

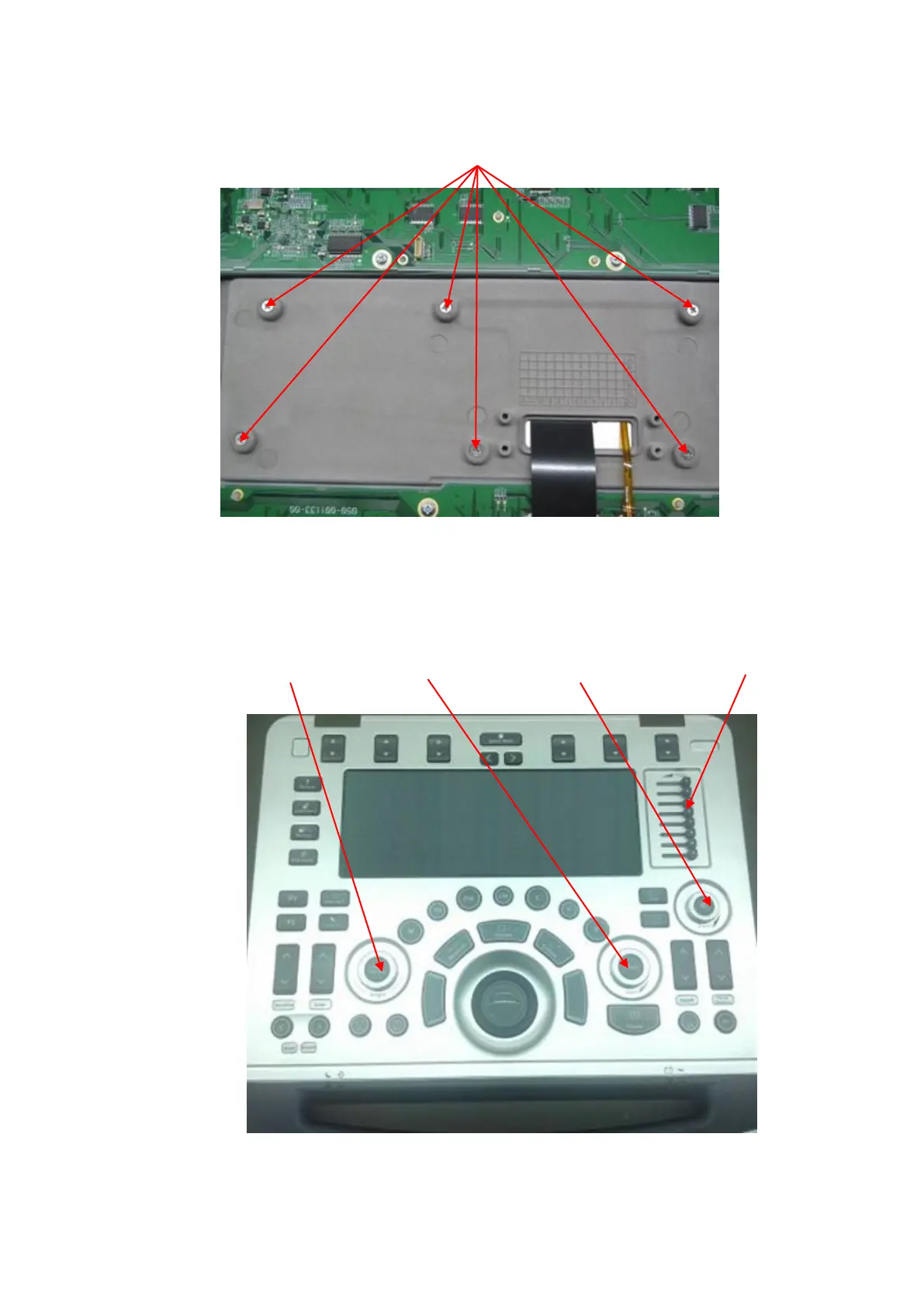

3. Remove the caps on the control panel.
Pull out the cap upwards. Caps for: small encoder button (Zoom), TCG cap (8 caps), large
encoder button (Auto Correct), large encode button (iTouch).
4. Disassemble the buzzer.
button (Auto
Large encoder
button (iTouch)
button (Zoom)
TGC cap (8 caps)
M3X6 cross slot screw (6 screws)
To Next Page
