8-22 Structure and Assembly/Disassembly
8. Disassemble caps

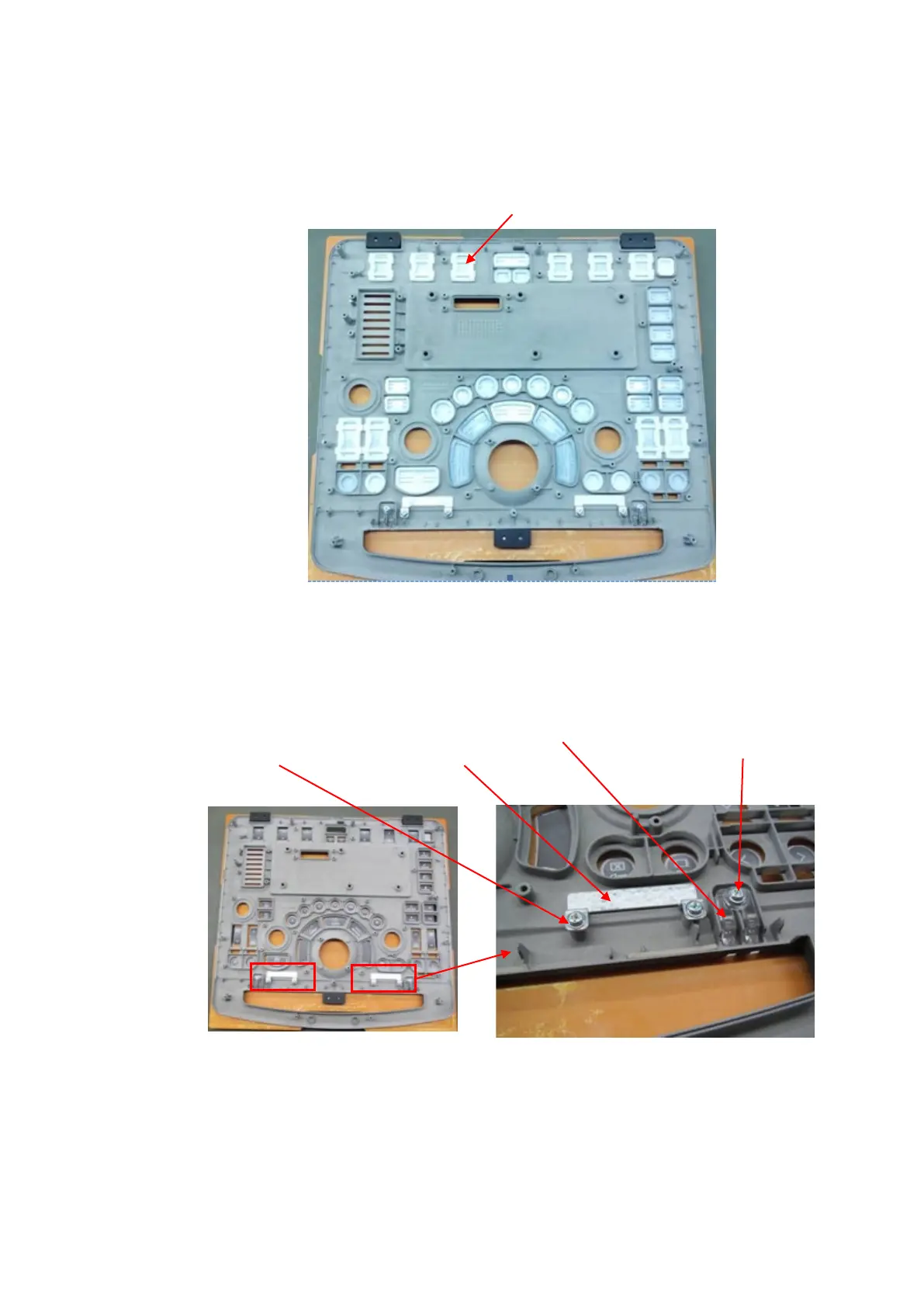

Remove button caps on the control panel.
9. Disassemble magnetic induction chip and status indicator.
Unscrew 4 screws (M3 X 6 cross panhead screw, 2 screws for each left and right side) from
magnetic induction clip. Take out the magnetic chip. Unscrew 2 screws (M3 X 6 cross panhead
screw, 1 screw for each left and right side) from status indicator. Take out the status indicator.
10. Disassemble silicon keyboard
Silicon keyboard is installed on the control panel PCBA via interference fit of silicon bearings
(back of PCBA). Remove the silicon keyboard from control panel.
M3 X 6 cross panhead
screw (4 screws, 2 screws
for each left and right side)
Magnetic
induction
chip
Status
indicator
M3 X 6 cross panhead
screw (2 screws, one screw
for each left and right side)
Disassemble button caps
