8-26 Structure and Assembly/Disassembly

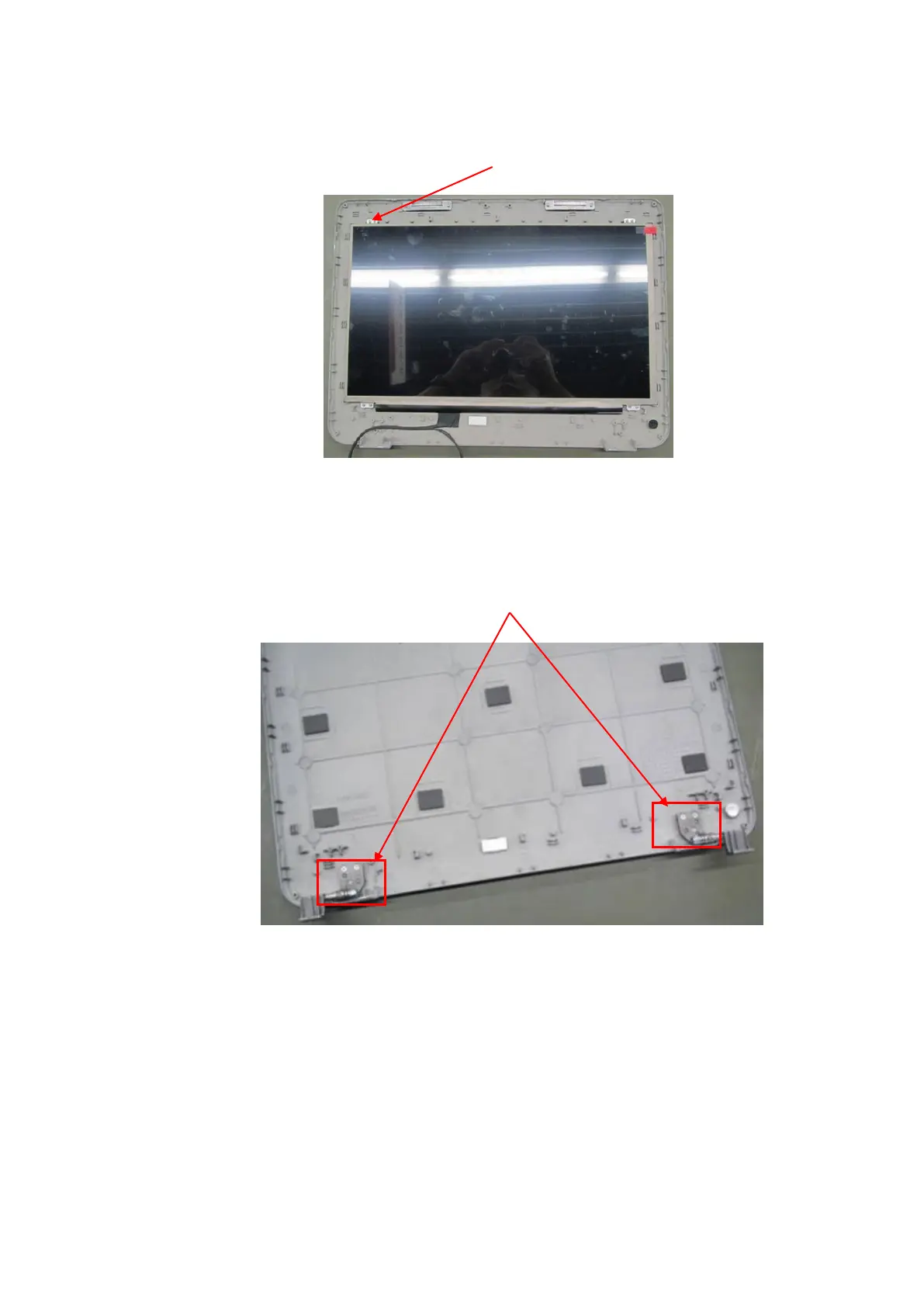

7. Disassemble left/right damping axis
Unscrew 6 screws on damping axes from left and right sides (M2.5 X 5 cross slot screw, 3
screws for each left and right side), and remove damping axis.
8. Disassemble the magnetic snap closure of the monitor.
Unscrew four screws on the magnetic snap closure (M2.5 X 4 cross panhead screw, 2 screws
for each left and right side), and remove the metal part and the magnet.
M2.5 X 5 cross slot screw (6
screws, 3 screws for each
left and right side
M2 X 4 cross panhead
screw (2 screws)
