8-
36
S
truc
ture and Assembly/
Disassembly
4.

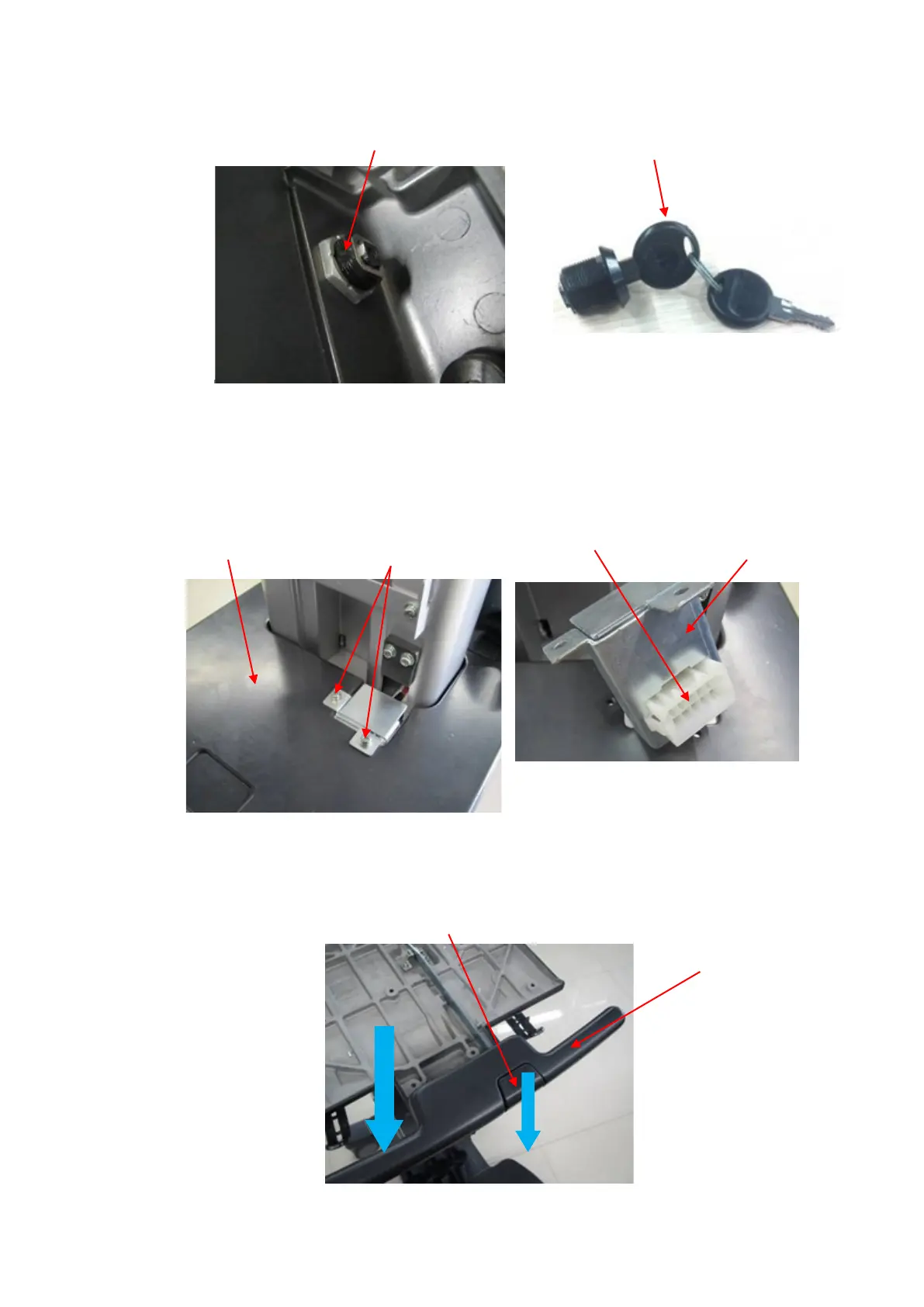

Remove spring cable
a)
Remove the fixing bracket of spring cabl
e
Unscrew 2 screws
(M4 X 12 cross panhead screw) on the base,
and take out the bracket
of spring cable.
b)
Remove spring cable
Press
gas spring but
ton. Press t
he device to the lowest by the handle.
Hexagon screw
D
rawer lock
Gas spring
Handle
The socket of
spring cable
Fixing bracket of
spring cable
T
r
olley b
ase
M4X12 cross panhead
screw (2 screws)
165
167
