8-44 Structure and Assembly/Disassembly

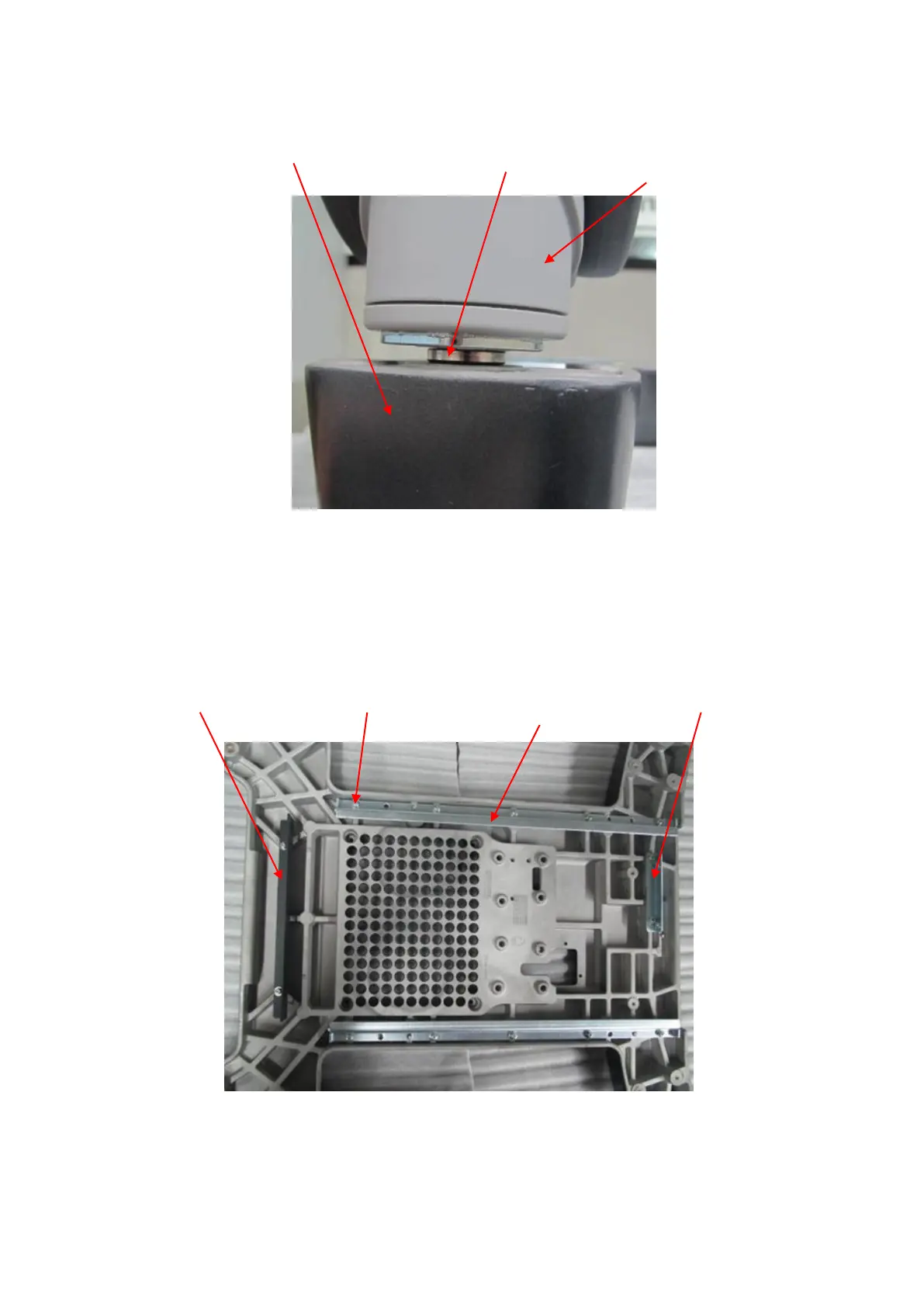

4. Remove metal strips
Unscrew 14 screws (M4 X 12 cross panhead screw) at the bottom of cast-aluminum base.
Remove the front pegboard, back pegboard and the strip of power supply box (one piece for
each left and right side).
5. Remove the decorative cover of the base.
Unscrew 4 screws (M3 X 8 cross panhead screw) on cast-aluminum base. Remove the
decorative cover upwards.
Strip of power
supply box (one
piece for each left
and right side)
panhead screw
(14 screws)
Unscrew the screws
To Next Page
