Probes and Biopsy 13-33

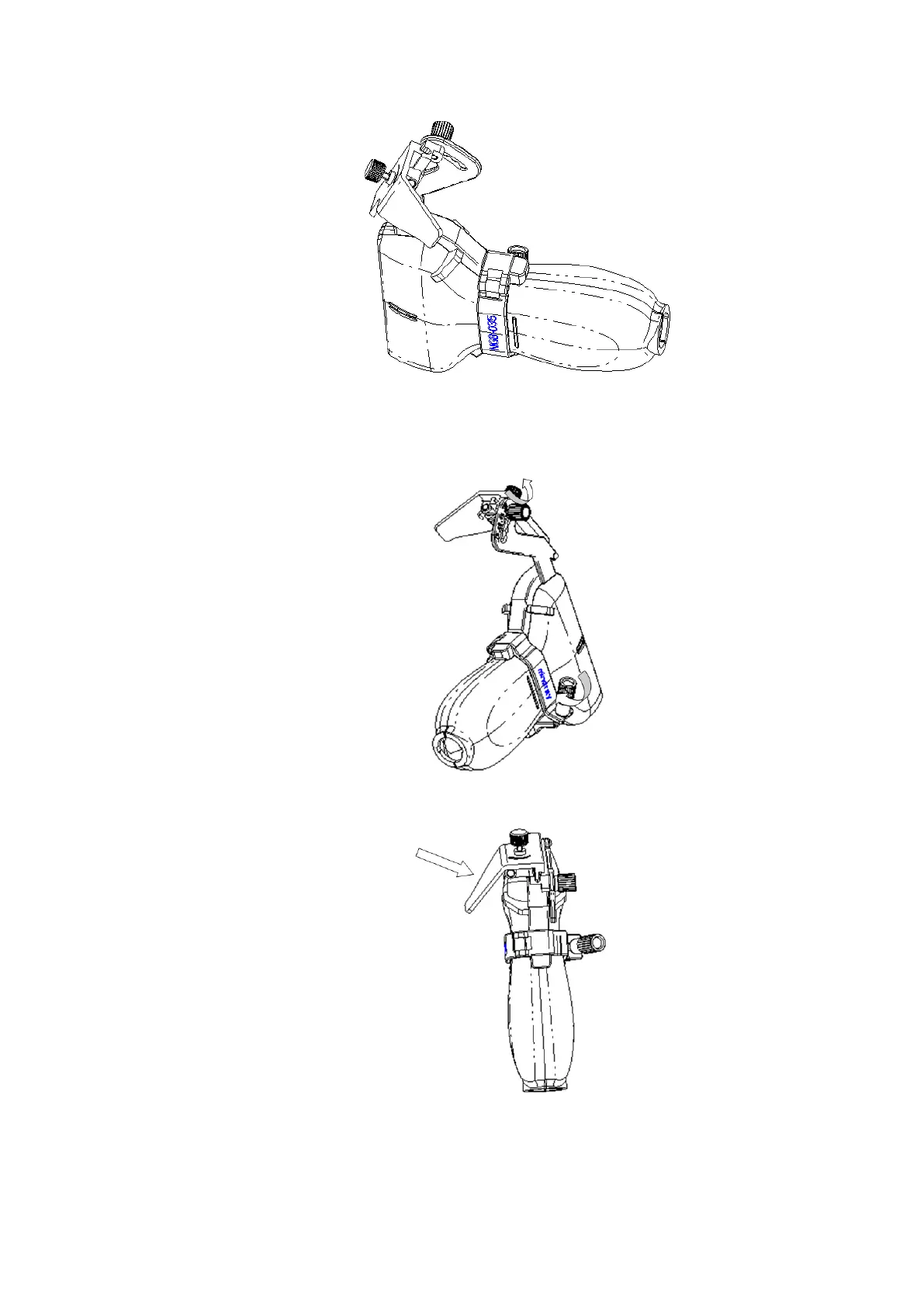

3. Tighten the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the probe. Loosen the angle adjusting nut.
4. Hold the probe and press the pressing block to separate V-shaped guiding block from the
pressing block.
5. Insert the needle into V-shaped guided block.
