Mindray TE7 User Manual

System Preparation 3-13
3.11.2 Operating panel

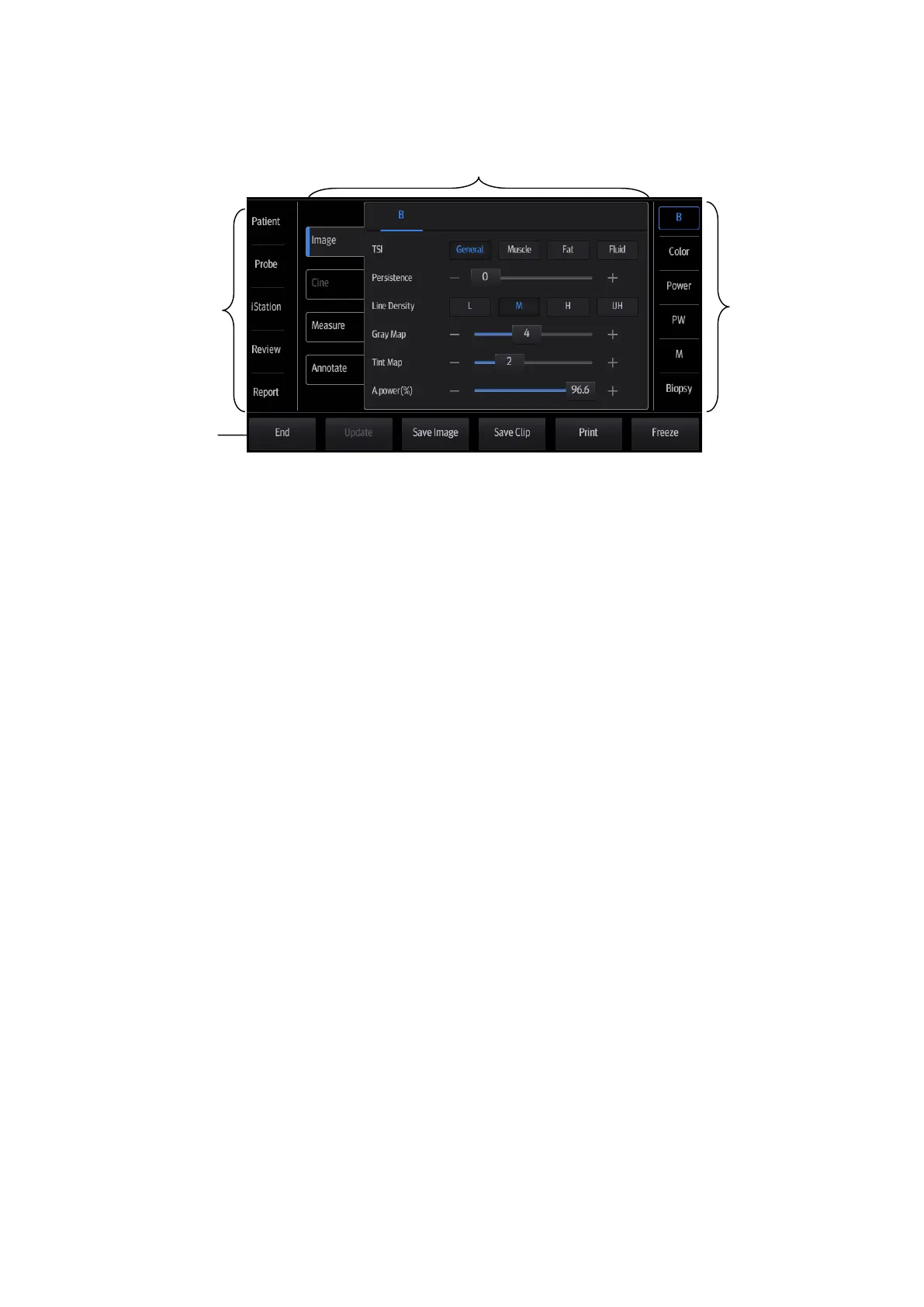

Operating panel located under the image area; consists of imaging mode buttons, menu area and
exam related buttons.
1. Imaging mode area
Tap imaging buttons to start imaging.
2. Menu area
 Imaging parameter menu: swipe the menu downwards/upwards to see parameter controls;
 Cine review menu (under frozen or cine review status);
 Measurement menu;
 Annotation and body mark menu.
3. Exam operating area
Tap each button to enter the screen.
 Patient information;
 Exam mode and probe switching;
 iStation;
 Image review;
 Report review.
4. Other buttons
You can perform operations using those buttons, including end exam, switching modes, save
an image/cine, print single frame image or freeze/unfreeze image, etc.
1
3
4
2

Mindray TE7 Specifications

General

Display Size	15 inch
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Tissue Doppler
Connectivity	USB, HDMI, DICOM, Wi-Fi
Probe Connectors	3
Image Storage	External USB storage
