Mindray TE7 User Manual

2-10 System Overview
No.
Name
Function
<12>
Network port
Connects to network.
NOTE:
Mindray recommends using Category 2-certified HDMI output cables (marked as “High
Speed”) according to HDMI 1.3 standard for a good output effect. Otherwise, abnormal
display effect may result. You can use a HDMI-to-DVI adapter for outputting to a
display with DVI input.
When connecting TE7/TE5 with an external display or recording devices via HDMI,
choose a right output setting resolution ([Setup] ->[System] ->[Peripheral] -> [Display]),
and please make sure the scan rate of 60Hz progressive is supported by the external
device, otherwise malfunction may result.

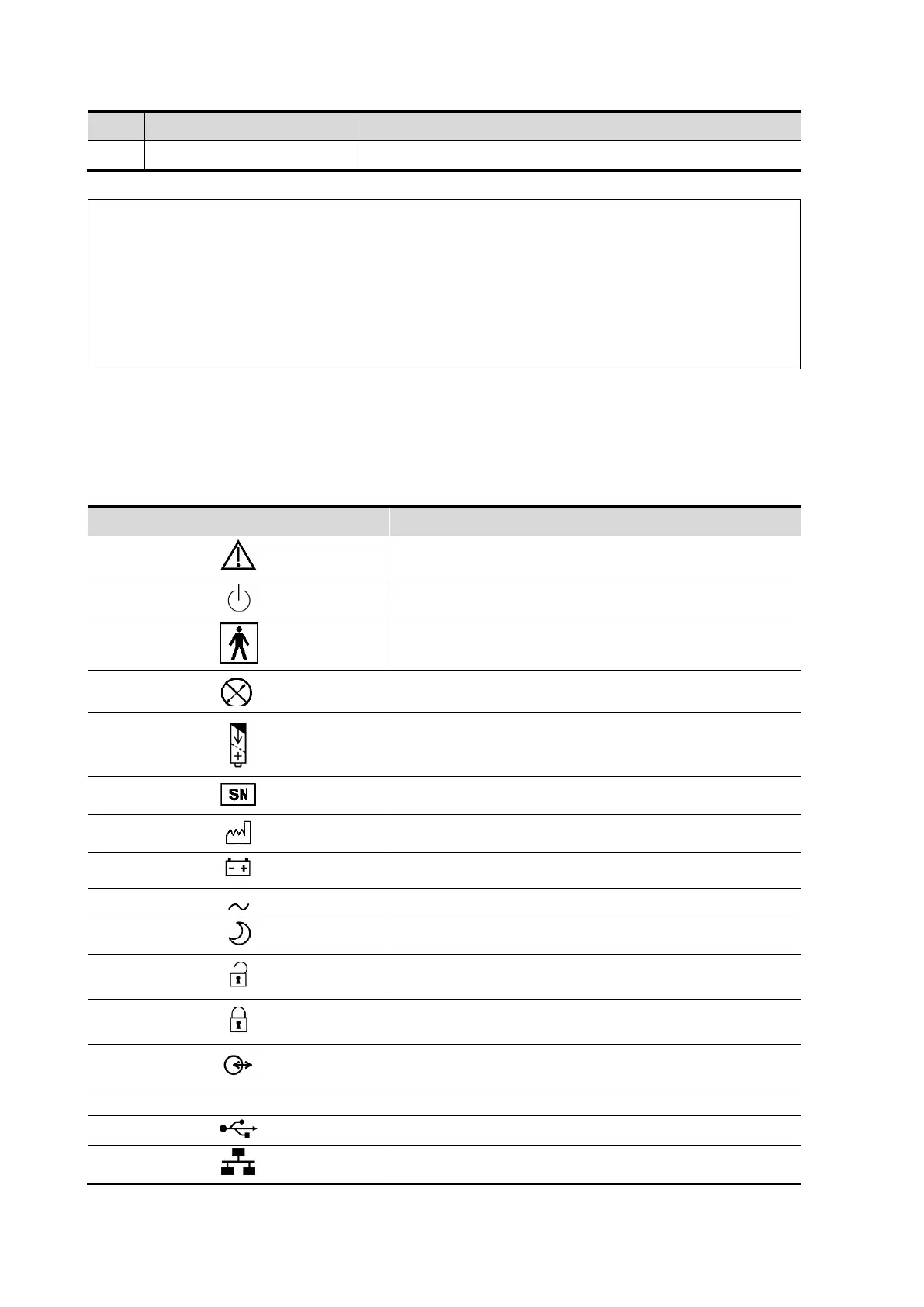

2.5 Symbols
This system uses the symbols listed in the following table. Their meanings are explained as
follows:
Symbol
Description
Caution!
Standby
Type-BF applied part
No user serviceable parts (power adapter)
Battery installation position
Product serial number
Manufacture date
Battery status indicator
AC (Alternating current)
Standby status indicator
Probe connector unlocking symbol
Probe connector locking symbol
Extending port
HDMI
HDMI port
USB port
Network port

Mindray TE7 Specifications

General

Display Size	15 inch
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Tissue Doppler
Connectivity	USB, HDMI, DICOM, Wi-Fi
Probe Connectors	3
Image Storage	External USB storage
