3-12 System Preparation
3.11 Basic Screen & Operation

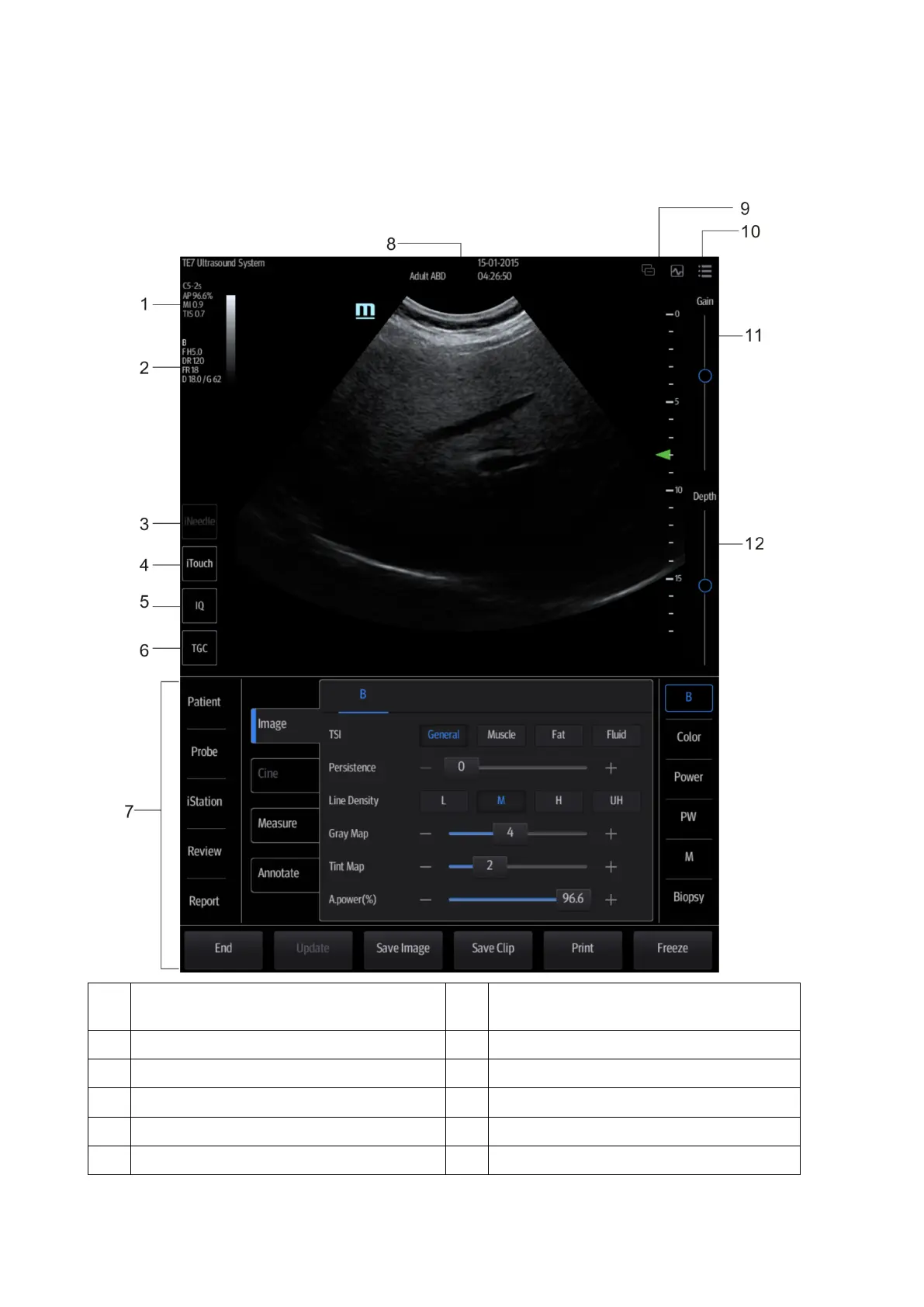

3.11.1 Screen Display
1.
Probe model, acoustic output value and
MITI index
2.
Parameter area
3.
iNeedle
4.
iTouch
5.
Frequency adjustment
6.
TGC control
7.
Operating panel
8.
Patient Information area
9.
System status icon
10.
System tool bar
11.
Gain control
12.
Depth control
