Mindray TE7 User Manual

C-8 Barcode Reader
C.2 2-D Barcode Reader (Take DS4308 as an
example)
The 2-D barcode reader supports hand-held operation mode.
Hand-held mode: press the trigger to decode.

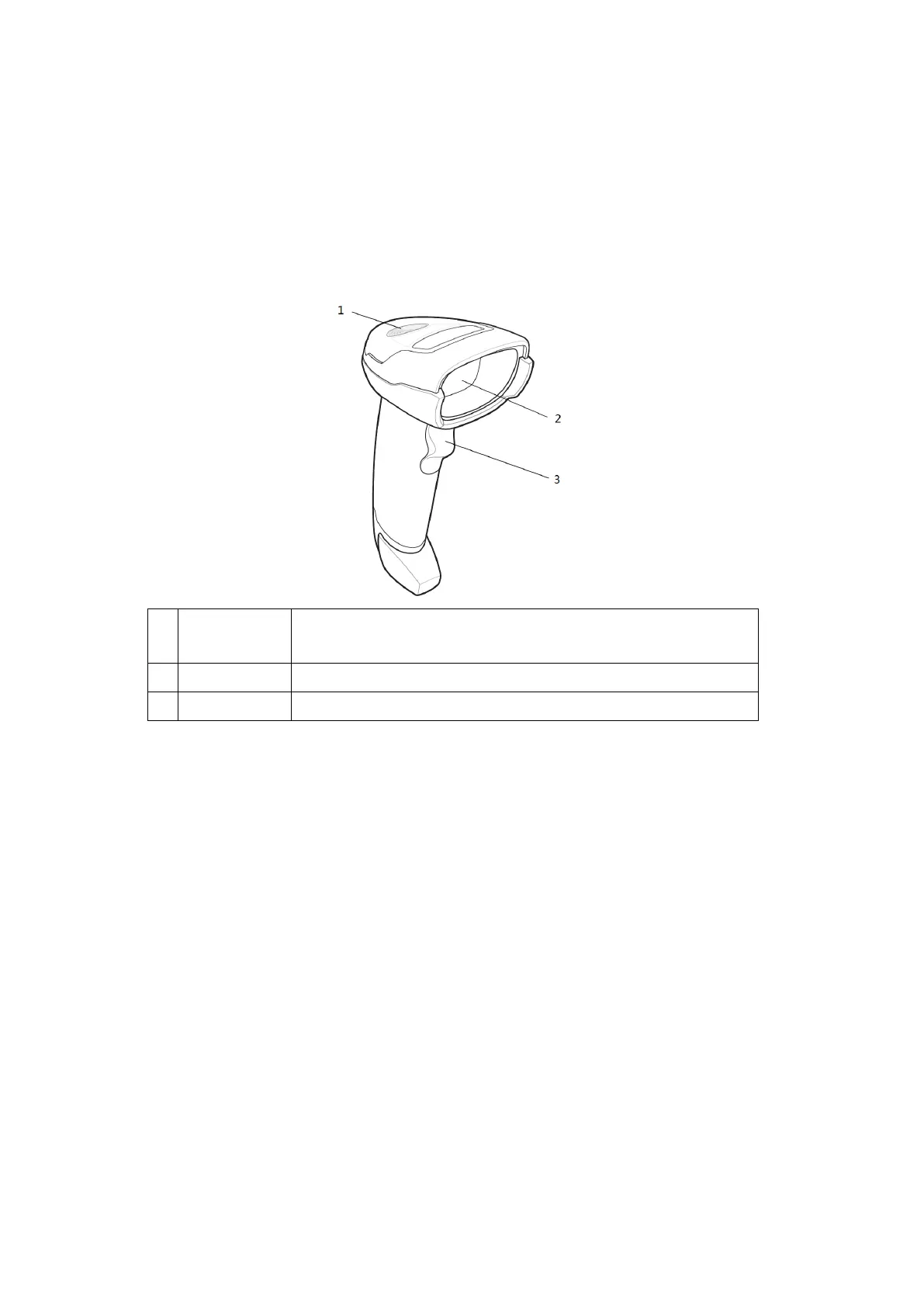

C.2.1 Overview
1.
LED
Green: A barcode was successfully decoded.
Red: A data transmission error or reader malfunction occurred.
2.
Scan window
Scan the barcode.
3.
Trigger
Press to decode
C.2.2 Setting Up the Digital Imager Reader
C.2.2.1 Installing the Interface Cable
1. Plug the interface cable modular connector into the cable interface port on the bottom of the reader
handle and ensure the connector is properly secure.
2. Connect the other end of the interface cable to the host.

Mindray TE7 Specifications

General

Display Size	15 inch
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Tissue Doppler
Connectivity	USB, HDMI, DICOM, Wi-Fi
Probe Connectors	3
Image Storage	External USB storage
