Mindray TE7 User Manual

13-42 Probes and Biopsy

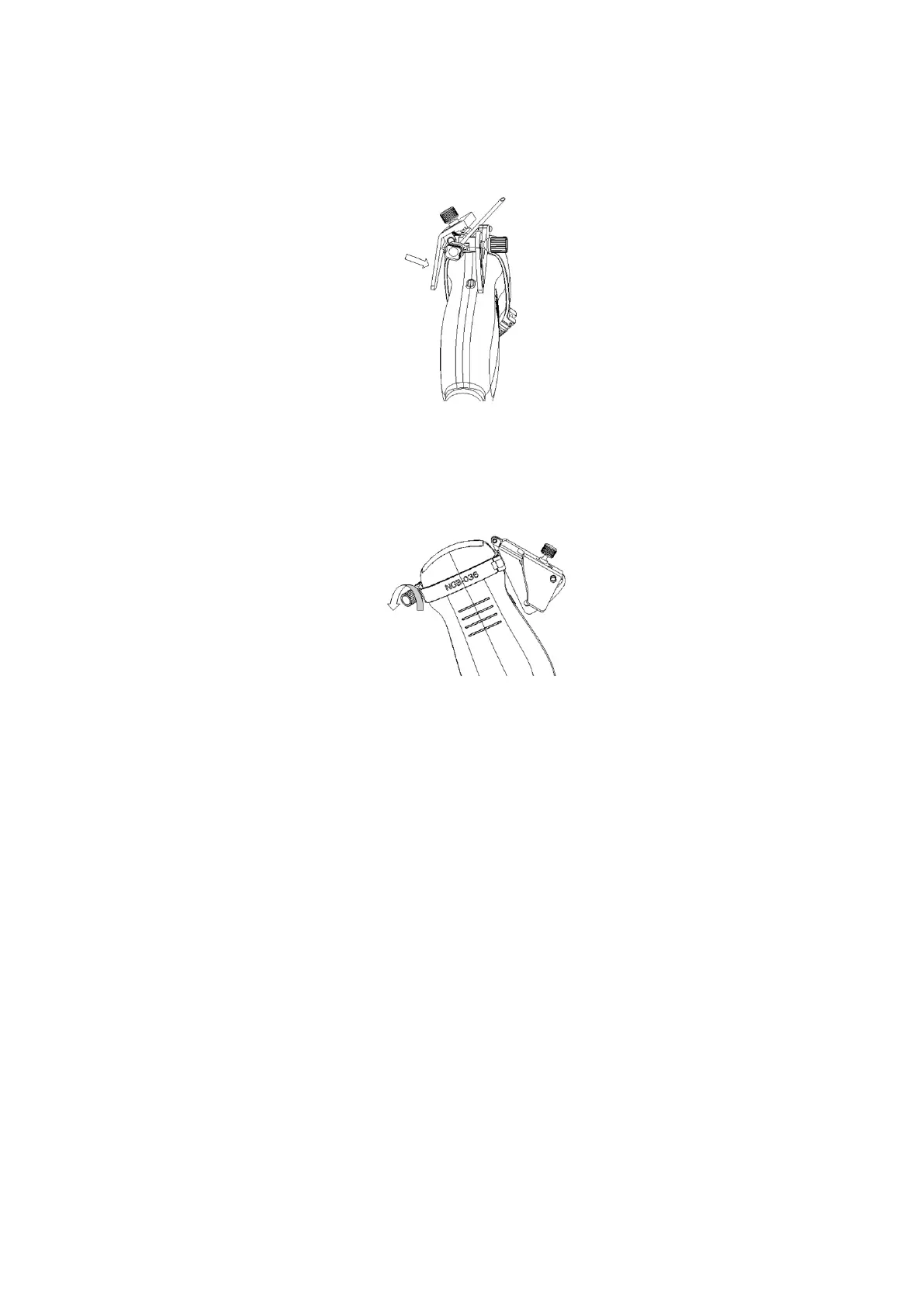

 NGB-036
1. Hold the transducer. Press the biopsy needle to separate the needle from pressure
position of the needle.
2. Separate the bracket and the transducer from the needle.
3. Rotate the clamping nuts of the needle guided-bracket on right and left side (following the
direction of the arrow). The needle guided-bracket is separate from the transducer. Hold
the transducer and take out the bracket.

Mindray TE7 Specifications

General

Display Size	15 inch
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Tissue Doppler
Connectivity	USB, HDMI, DICOM, Wi-Fi
Probe Connectors	3
Image Storage	External USB storage
