Mindray TE7 User Manual

Barcode Reader C-11

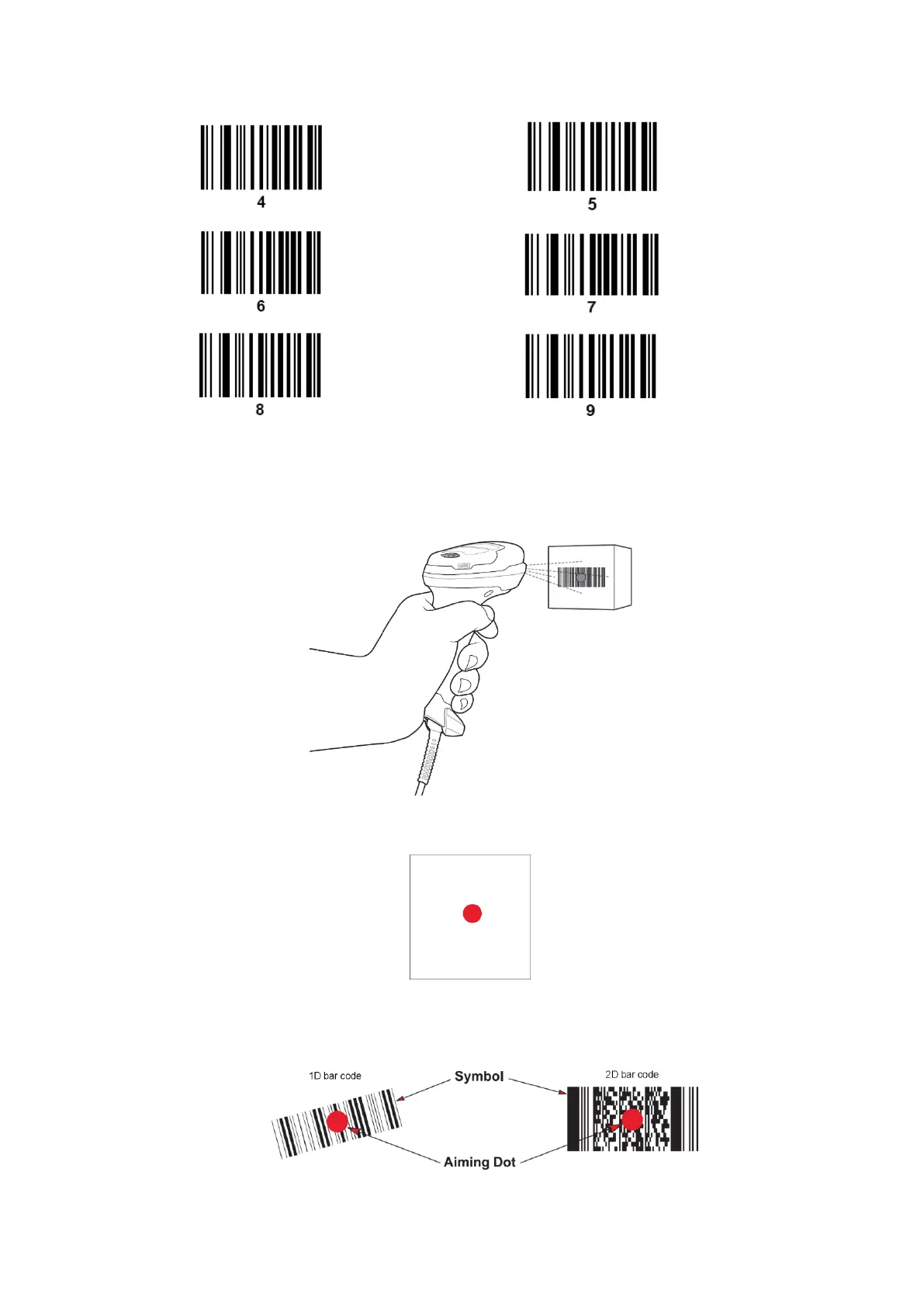

C.2.4 Scanning in Hand-Held Mode
1. Ensure all connections are secure (see the appropriate host chapter.)
2. Aim the digital imager reader at the barcode.
3. When the digital imager reader senses movement, in its default Auto Aim trigger mode, it projects
a red LED dot which allows positioning the barcode within the field of view.
If necessary, the digital imager reader turns on its red LEDs to illuminate the target barcode.
4. Center the symbol. Be sure the entire symbol is within the rectangular area formed by the
illumination LEDs.

Mindray TE7 Specifications

General

Display Size	15 inch
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Tissue Doppler
Connectivity	USB, HDMI, DICOM, Wi-Fi
Probe Connectors	3
Image Storage	External USB storage
