V Series Operating Instructions 11 - 9
Invasive Blood Pressure (IBP) Measuring ICP

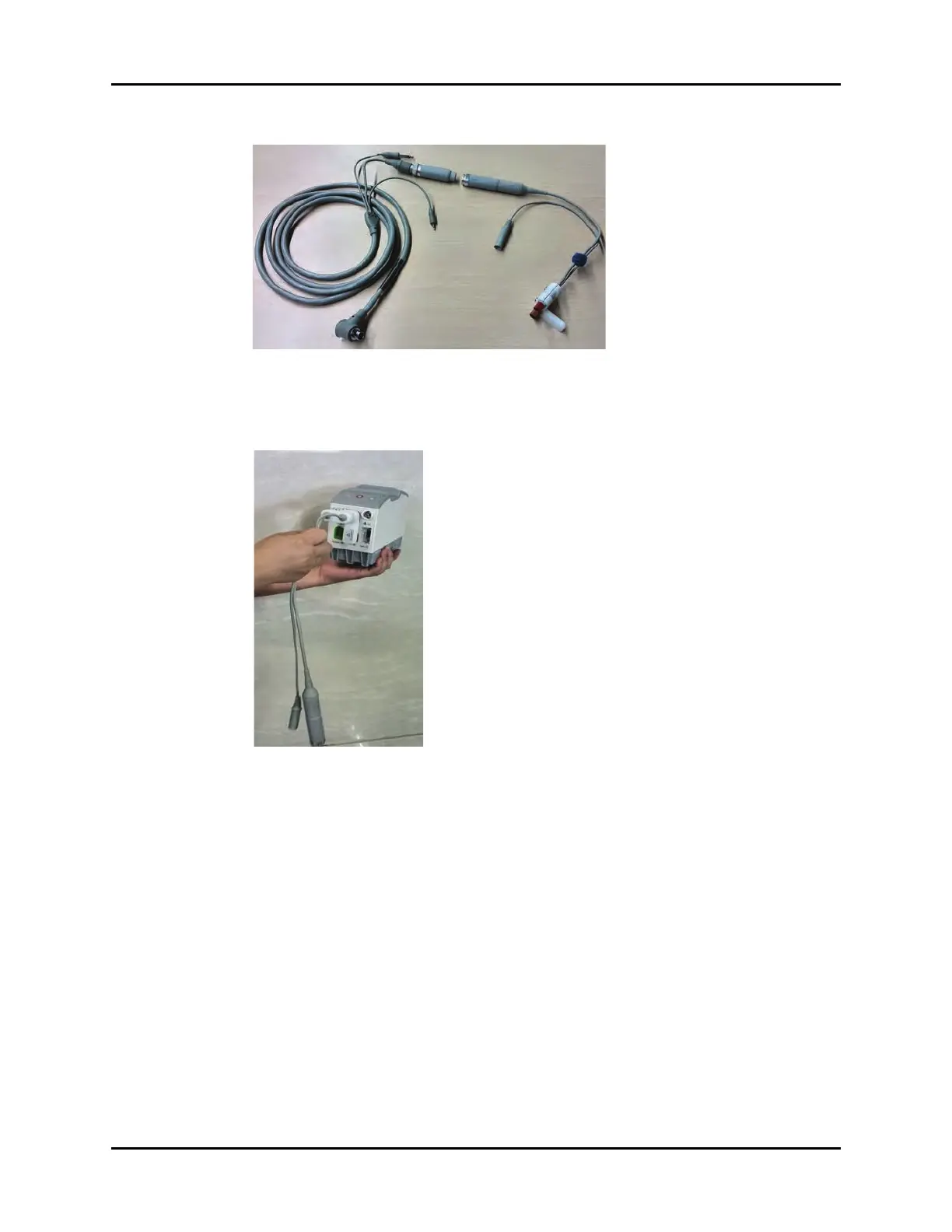

FIGURE 11-7 Connecting Camino Bedside Monitor Connector and Camino Adapter Kit
2. Insert the Camino Adapter Kit Connection Cable into the VPS IBP connector beside the Temp
connector (as shown in FIGURE 11-8).
FIGURE 11-8 Camino Adapter Kit Cable Inserted into VPS
3. For Camino operating instructions, including starting the Camino device, zeroing pressure
transducers, and calibrating the bedside monitor, refer to the Advanced Monitoring CAM01
Operating Manual.
