V Series Operating Instructions 24 - 3
Remote View Remote View
3. Optional - select the Select Location button, then choose the Off button to stop viewing the
remote view location.
4. Optional - select the Done button to close the Remote View dialog.
24.1.2 Configuring the Remote View Display Dialog
Customize the Remote View dialog to view the parameters and waveforms which are especially
useful in managing a patient remotely. The Remote View dialog displays the parameters and
waveforms, including the waveform speed, size, and color based on the configuration settings at the
Source monitor, unless they are customized at the Host monitor to display differently.
NOTE: Any customizations made in the Remote View dialog are only
temporary. Once the dialog closes or the location is changed, the
settings from the source location are reloaded.
E

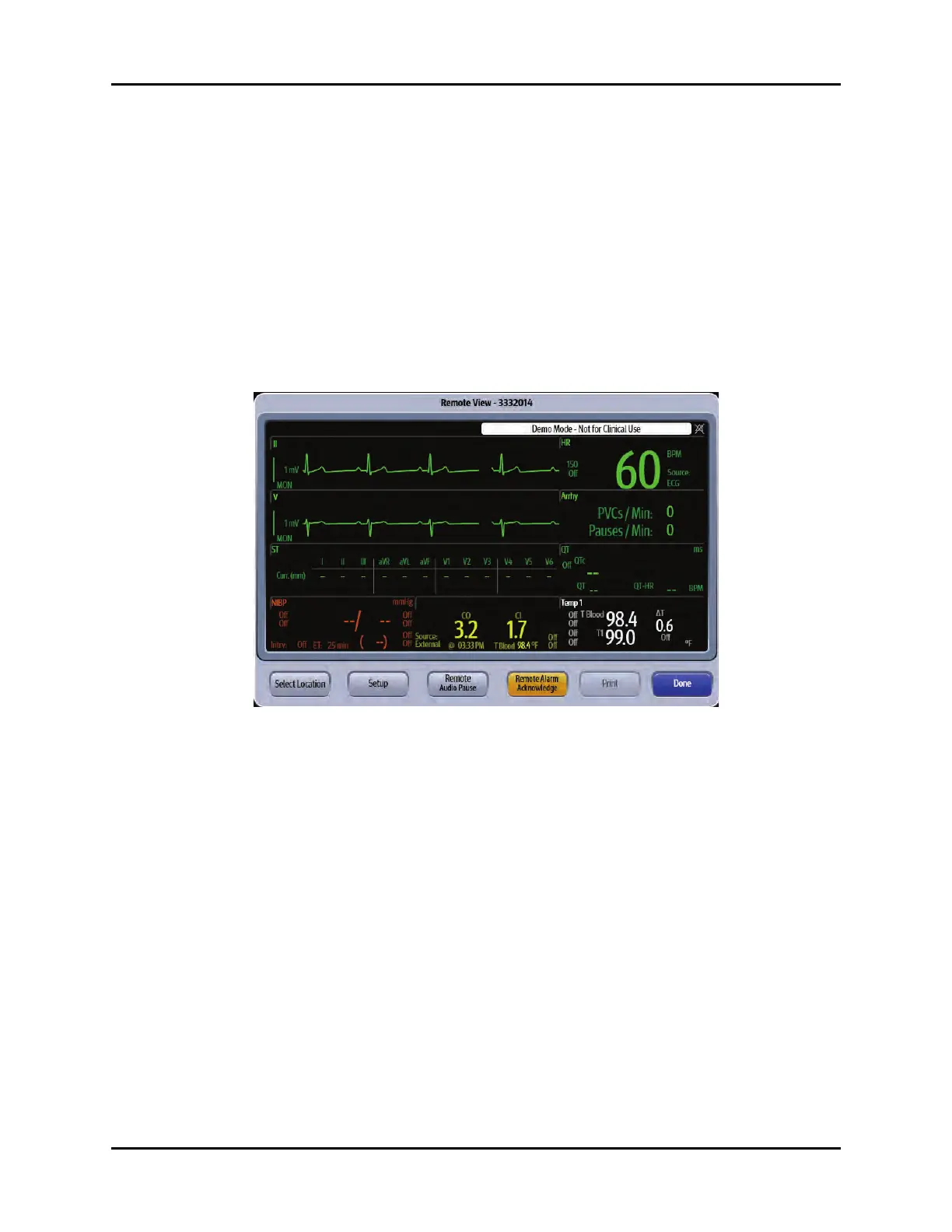

FIGURE 24-2 Example Remote View Dialog
1. Select the Tools tab, then select the Remote View button.
The Remote View dialog displays.
2. If the desired location is not already displayed in the Remote View dialog, choose the Select
Location button, then select the desired location from the listbox.
Data from the selected location displays in the Remote View dialog.
3. Select the Setup button.
The Remote View Display Setup dialog displays.
4. As the screen message indicates, select an area on the grid to see a list of available parameters.
A list of digital or waveform parameters displays to the right of the grid (as shown in FIGURE 24-
3).
NOTE: The Host monitor can display all data with the exception of the
following: NIBP List tile, ST Beat tile, Time tile, overlapped IBP tiles, CCO
tile, CCO STAT tile, SvO2 tile, Hemo tile, rSO2 tile and Gas tile.
