Remote View Remote View
24 - 4 V Series Operating Instructions

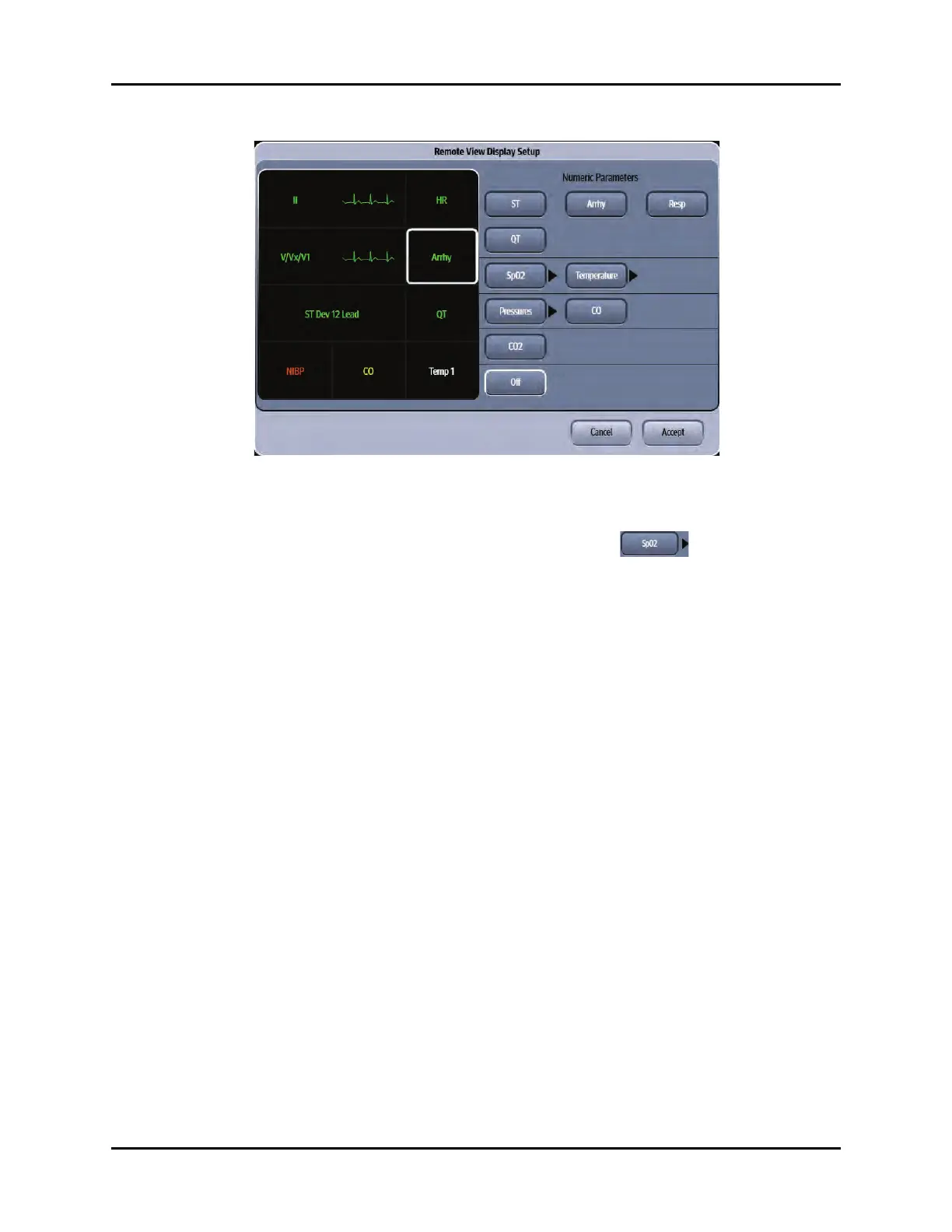

FIGURE 24-3 Example Remote View Display Setup Dialog
5. Select a parameter button.
NOTE: The arrow beside a parameter button (for example, )
indicates that there is a submenu with additional choices available.
6. Select a parameter from the list to add it to the grid.
OR
Select the Off button to leave that portion of the grid empty.
NOTE: The HR parameter tile and the topmost ECG waveform tile cannot be
turned off.
7. Select the Cancel or Accept button.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
8. Optional - select the Done button to close the Remote View dialog.
24.1.3 Managing Alarm Delays from the Host Monitor
• The alarm audio enunciation delay at the Host monitor is dependent on the configuration
settings at the Source monitor. Acknowledgement of alarms can only occur at the Source
monitor. When an alarm is silenced from the Host monitor, the current silence state with a
countdown of the audio resume time displays in the message area (which is above the HR) in the
Remote View dialog and the Source monitor’s message area.
• Manage alarm silencing by using the buttons described in TABLE 24-1.
