V Series Operating Instructions 4 - 5
Mechanical Functions V 12

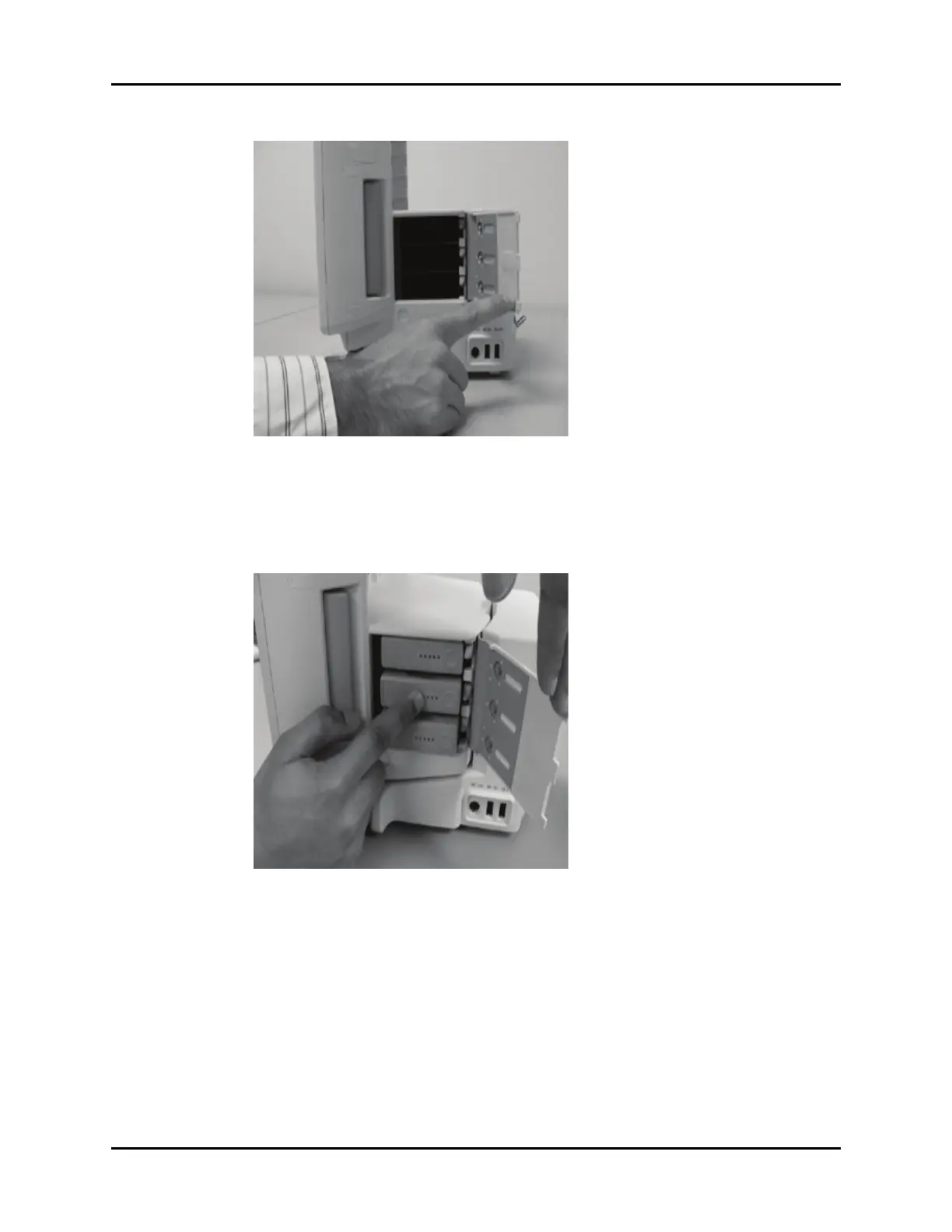

FIGURE 4-6
4. With the other hand, pick up a battery and install it into one of the three revealed battery bays,
pushing it inward until the battery latch engages the battery, with a corresponding audible click
(shown in FIGURE 4-7). (Avoid pressing against the circular button on the end of the battery, to
avoid inadvertent checking of battery charge.)
FIGURE 4-7
5. Swing the door toward the closed position, align the three tabs on the front edge of the door
with the three slots in the V 12 housing and, while pressing the door flush to the housing, slide
it forward, until it latches (shown in FIGURE 4-8).
