Mindray VS-900 - Page 63

To Next Page

To Previous Page

6-7

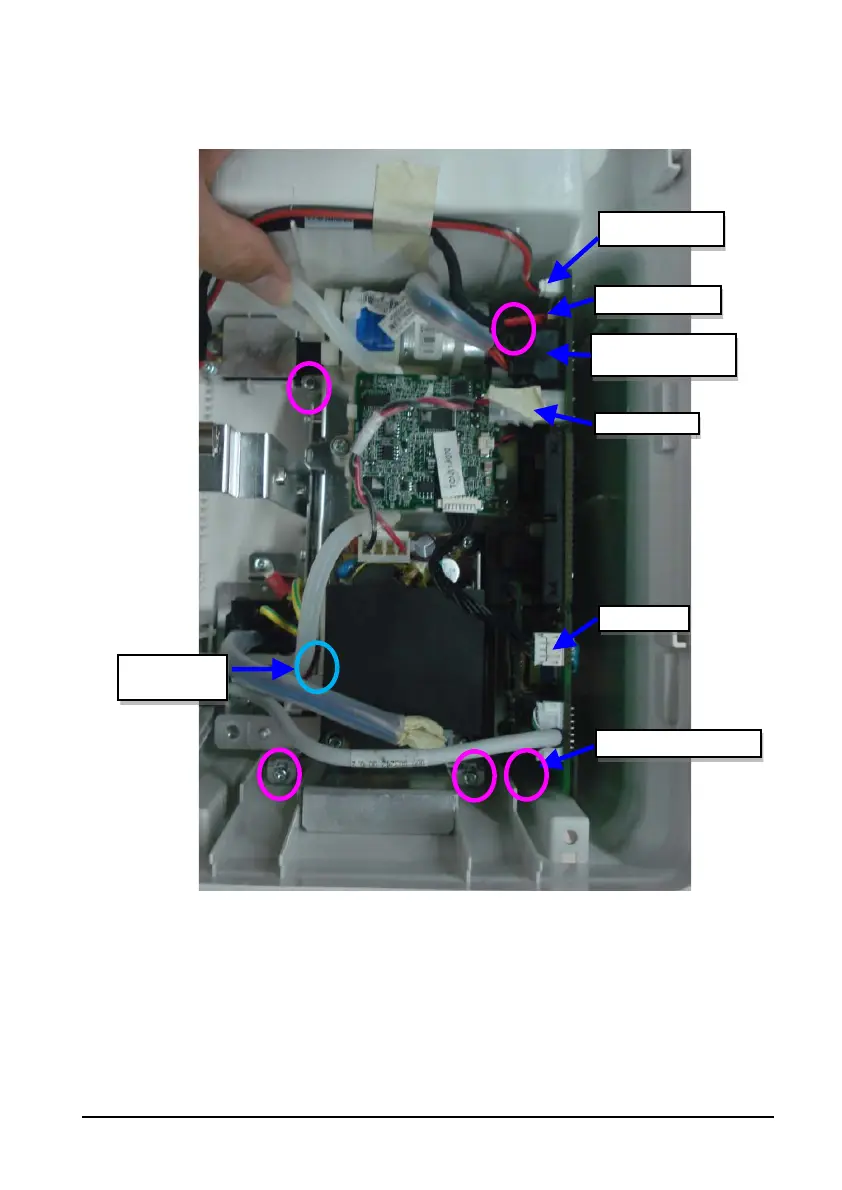

Disconnect the speaker cable, recorder cable, power cable, battery interface board cable,

and NIBP cable. Unscrew the five PT3×8 screws and a M4 screw. Then take out the main

bracket assembly.

Speaker cable

Recorder cable

Battery interface

board cable

Power cord

NIBP cable

5 self-tapping screws

1 grounding

screw
