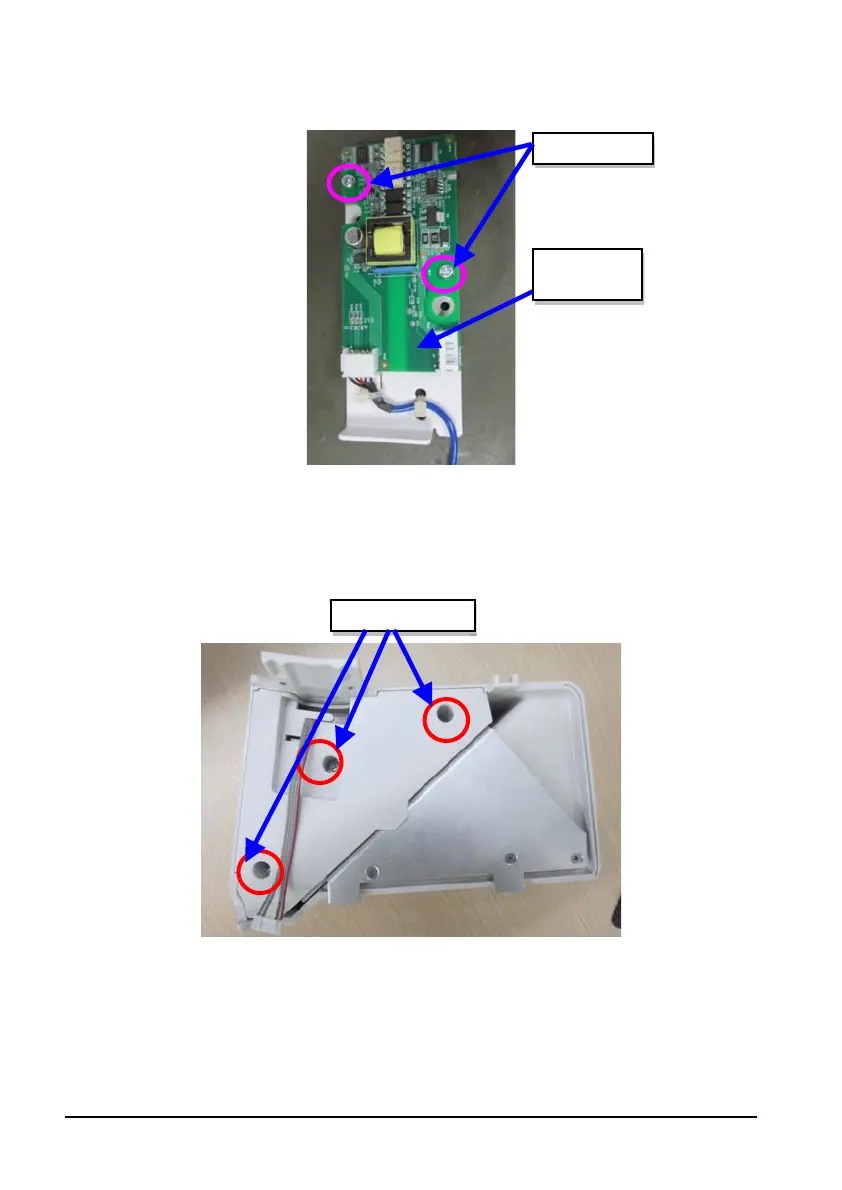

3. Unscrew the two M3×6 screws to take out the separator plate PCBA.
6.6.3 Disassembling the Convidien Infrared Ear Thermometer Module or
Exergen TemporalScanner Themometer Module (Optional)
1. Unscrew three M3×6 screws, and then remove the panel.
Separator
plate PCBA
M3×6 screws
M3×6 screws
