6-23

6.6.2 Disassembling the Separator Plate PCBA

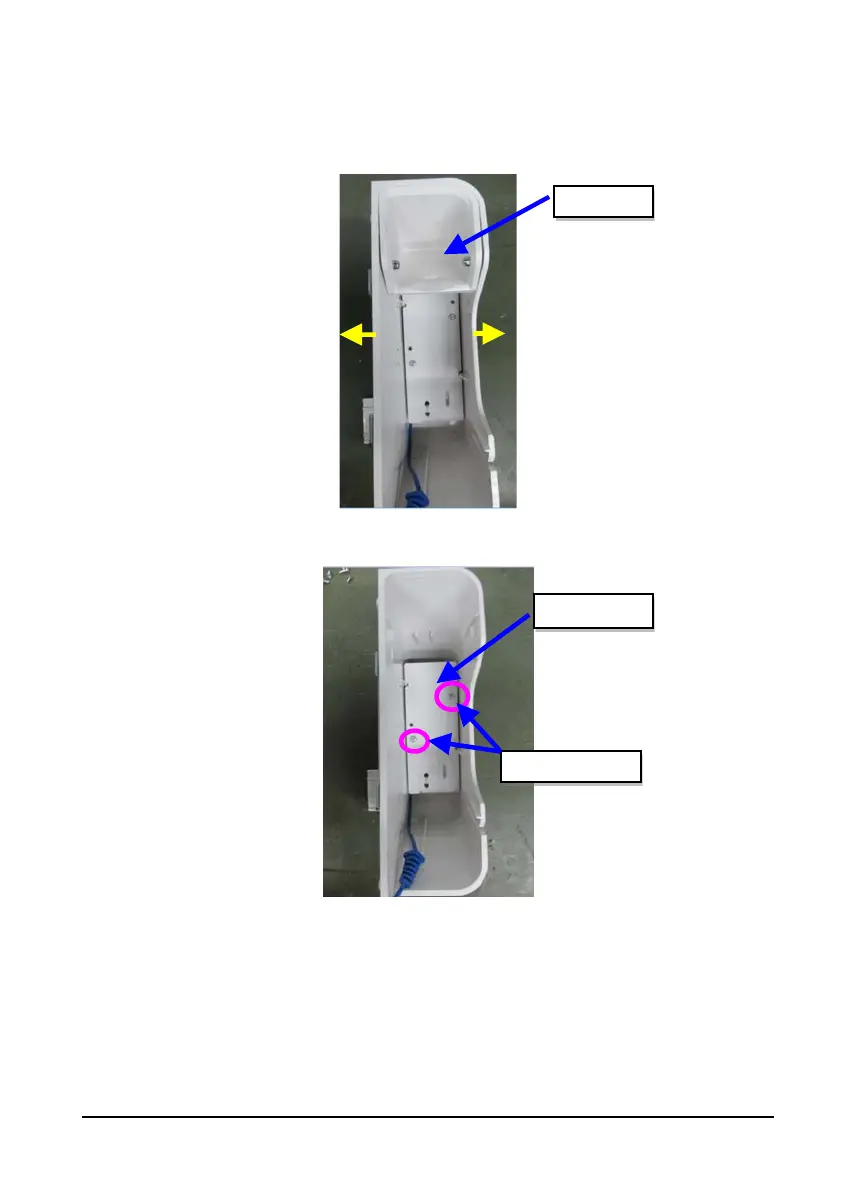

1. As indicated in the figure below, pull both sides of the pop-up unit open, and take out

the stop cover.

2. Unscrew the two PT2.5×6 screws to take out the separator plate.

Stop cover

Separator plate

PT2.5×6 screws
