6.5.2 Disassembling the Temp On-Position Detection Board PCBA

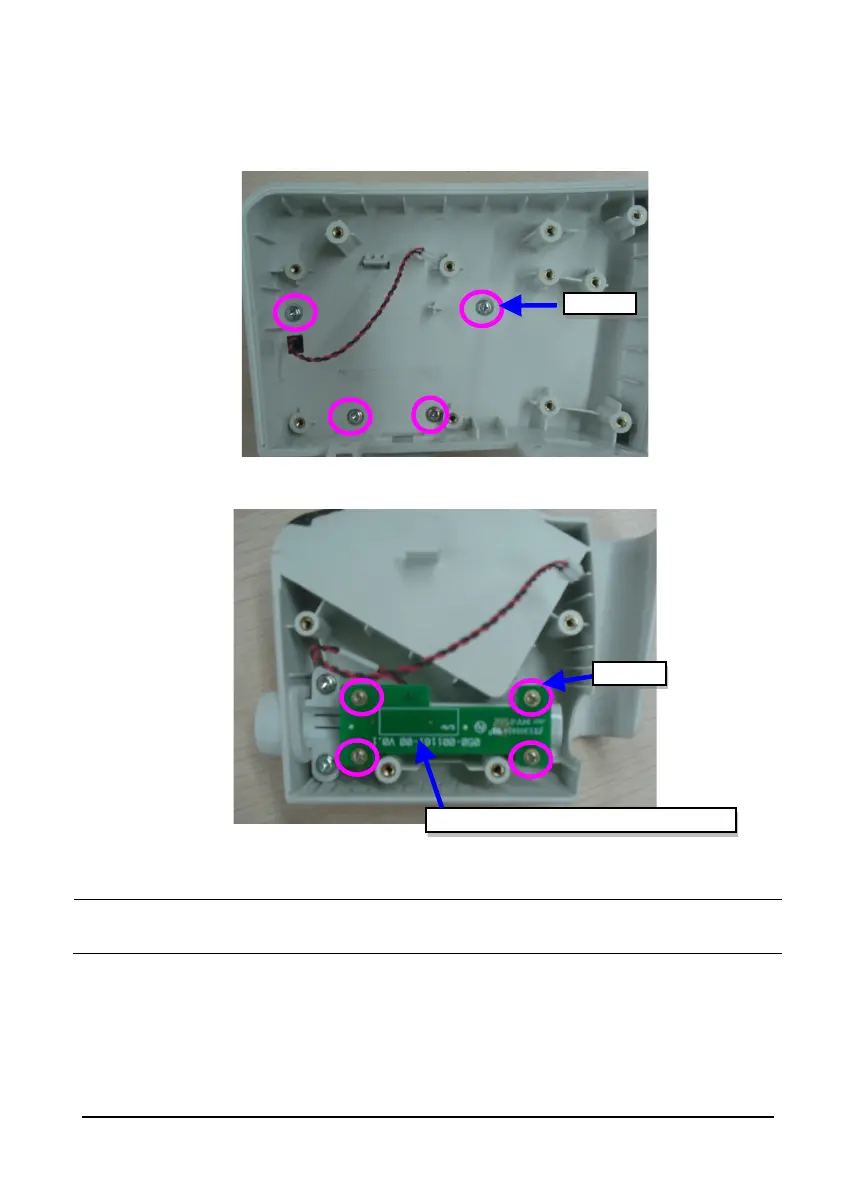

1. Unscrew the four M3×6 screws as indicated and take out the SmarTemp
TM
module
housing.
2. Unscrew the four M2 screws as indicated below and take out the Temp on-position
detection board PCBA.
NOTE
 Remember to assemble the silicon button for the Temp on-position detection switch
during reassembly.
4 screws
4 screws
Temp on-position detection board PCBA
