5-42
4. Pull out No.53 PU tube which connects the vaporizer manifold assembly to the ACGO
assembly. The end of the tube which connects the vaporizer manifold assembly is not
pulled out but the other end is.

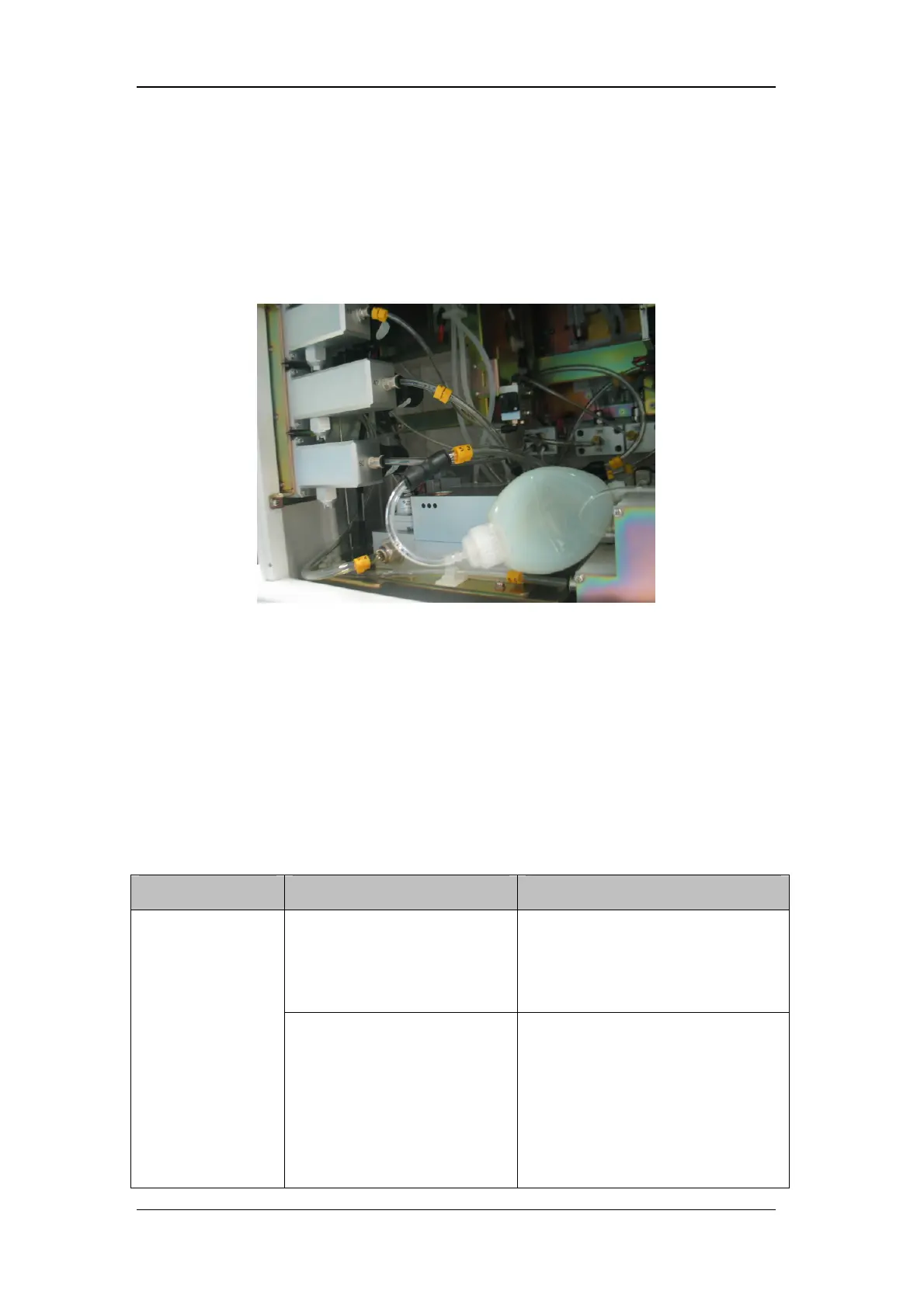

5. Flatten the negative pressure ball to remove the gas inside. Then re-install the gas
outlet switch of the negative pressure ball properly. Connect the other end of the
negative pressure ball to the pulled-out No.53 tube through 3106-06-08 adapter
connector and occlude the pulled-out tube end on the flowmeter as shown below.
6. Release the negative pressure ball. If the negative pressure ball is fully expanded
within 30s, it indicates that the rubber plain washers and seal of the tested pipeline or
its contacted mechanical surface are damaged. Handle this problem as described in the
troubleshooting table.
7. Test each connector on the vaporizer manifold assembly by following the above steps
1 through 6.
5.3.4 Patient Circuit
The following table lists patient circuit related failures.
Failure description Possible cause Recommended action
The sodalime canister is not
installed properly.
Re-install the sodalime canister.
Remove the sodalime at the sealing
connection. Ensure the correct
installation of sadalime canister.
Leak
The sealing components of the
sodalime canister assembly are
damaged, which refer to the seal
for the lifting device
(0601-20-78843) and the sealing
component of the sodalime
canister (0601-20-78842).
Replace the sealing component of the
sodalime canister assembly. It is
required to replace the seal once a
year.
To Next Page
