Mindray WATO EX-65 - Single-Vaporizer Manifold Assembly

7-39
7.1.29 Single-vaporizer Manifold Assembly

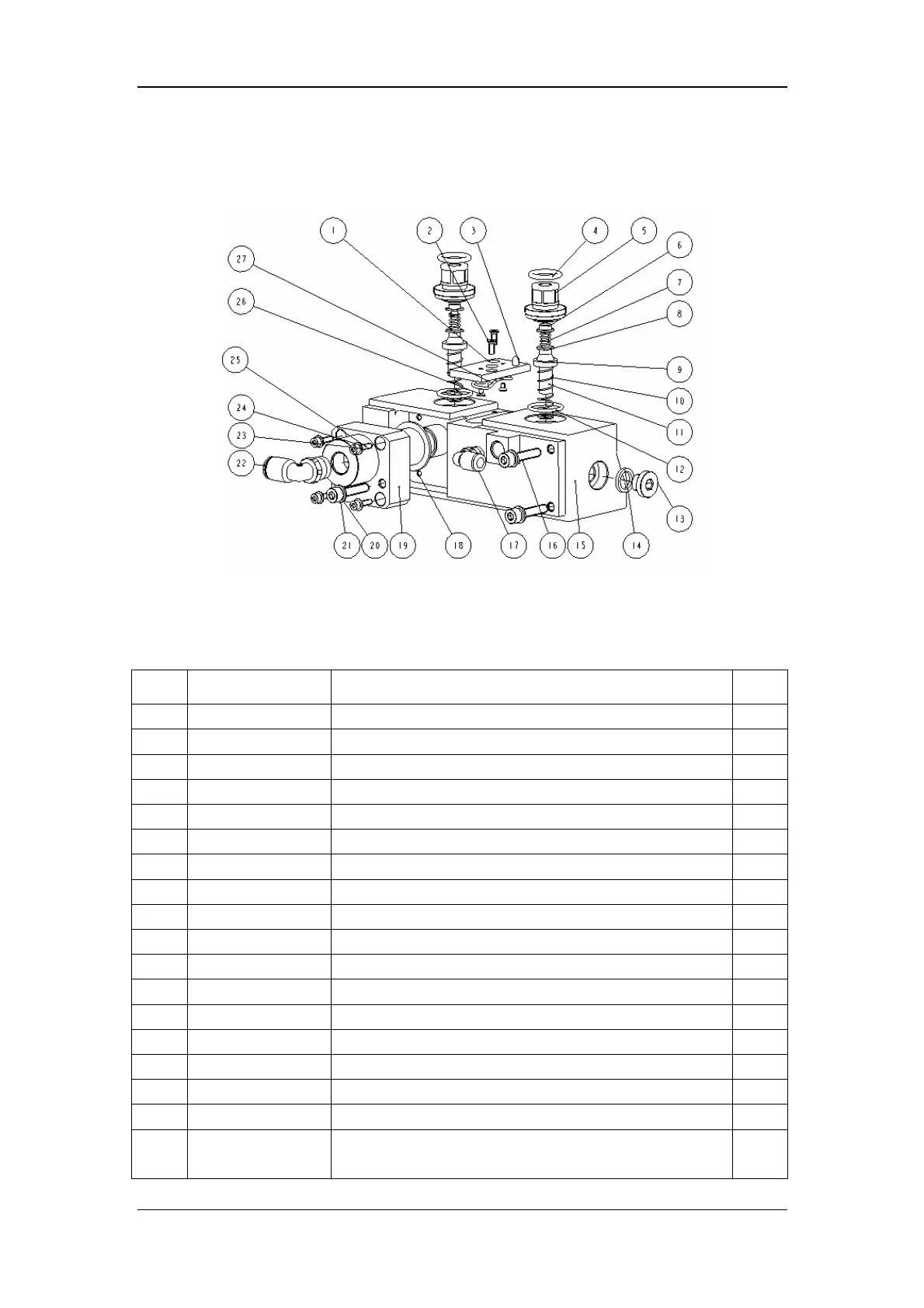

7.1.29.1 Exploded View
7.1.29.2 Parts List
Note: The P/N of this assembly is 0621-30-69455.
S/N P/N Description Qty
1 0611-20-45416 Locking plate 1
2 M04-000405--- Cross recessed countersunk head screw M3X8 2
3 0611-20-45417 Locking pin 1
4 M6M-010014--- Seal, O-ring 14.00X2.65 silicone A50 black 2
5 0611-20-45413 Connector 2
6 0611-20-45412 Slide bar 2
7 0611-20-45403 Spring 2
8 0611-20-45411 Compression slice 2
9 M6M-040001--- Rubber plain washer.6.00X14.00X3.00 silicone A70 black 2
10 0611-20-45404 Spirng 2
11 0611-20-45414 Sleeve 2
12 M6M-010015--- Seal, O-ring 17.17X1.78 silicone A70 black 2
13 M6Q-120036--- Hexagon plug 0919-00-10 1
14 M04-021063--- G1/8 nylon washer 0602 23 1020 1
15 0621-20-69400 Single-vaporizer manifold 1
16 M04-051066--- Hexagon socket cap head screw M5X25 2
17 M6Q-030020--- Connector, L-shaped connector 3109-06-10 1
18 M6Q-020031--- Check valve membrane and check membrane assembly
(25X16)
1
