7.2.10 Lower Cover Assembly

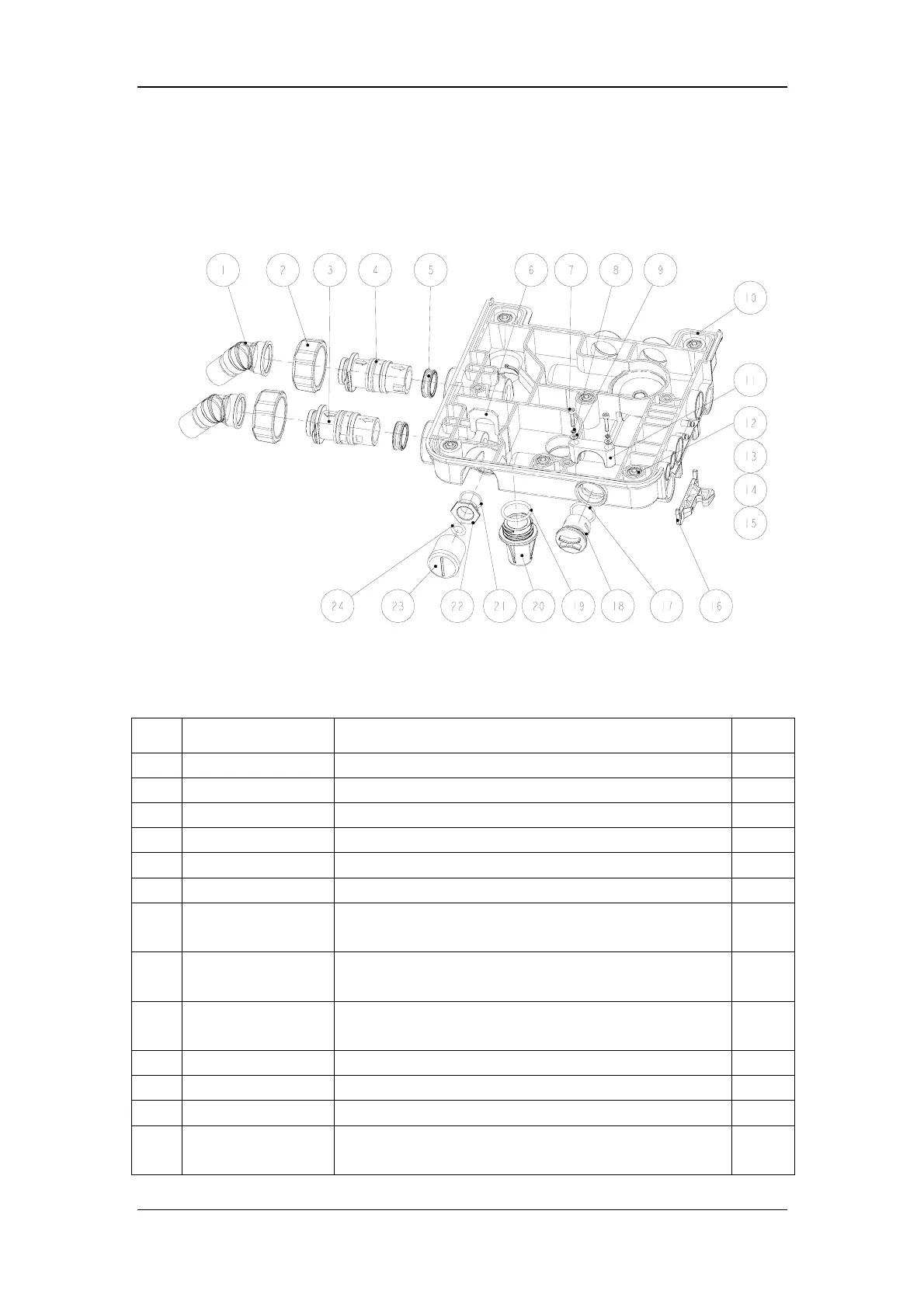

7.2.10.1 Exploded View
7.2.10.2 Parts List
Note: The P/N of this assembly is 0601-30-78871.
S/N P/N Description Qty
1 0601-20-69743-51 Breathing connector (mold MR69743) 2
2 0601-20-69744-51 Cover for breathing connector (mold MR69744) 2
3 0601-30-69700 Inspiratory flow sensor assembly 1
4 0601-30-78894 Expiratory flow sensor assembly 1
5 0601-20-78887 Connector sealing cushion (mold MR78839) 2
6 0601-20-78914 Screw threaded compression slice for O2 sensor 1
7 M04-051123--- SUS316 cross recess head screw GB/T818-2000 M3X16
polishing
2
8 M04-021067--- SUS316 single coil spring lock washer, normal type
GB/T93-1987 3 polishing
2
9 M04-021072--- SUS316 plain washer,normal series,product grade A
GB/T97.1-2002 3 polishing
2
10 0601-20-69897-51 Bottom shell (mold MR69897) 1
11 0601-20-78882 Fixing piece for bag connector (mold MR69744) 1
12 0601-20-69889 Screw base 6
13 M04-021074--- SUS316 plain washer,normal series,product grade
AGB/T97.1-2002 5 polishing
6
To Next Page
