Mindray WATO EX-65 - Ground Plate Assembly of Modular Rack

7-13
S/N P/N Description Qty
9 900E-20-04895 Dustproof cushion 2 1
10 M04-051140--- Cross recessed small pan head screw assembly
GB/T9074.8 M3X8 rustproof nickel plating
5
11 0621-30-69353 Infrared backplane 1
7.1.9 Ground Plate Assembly of Modular Rack

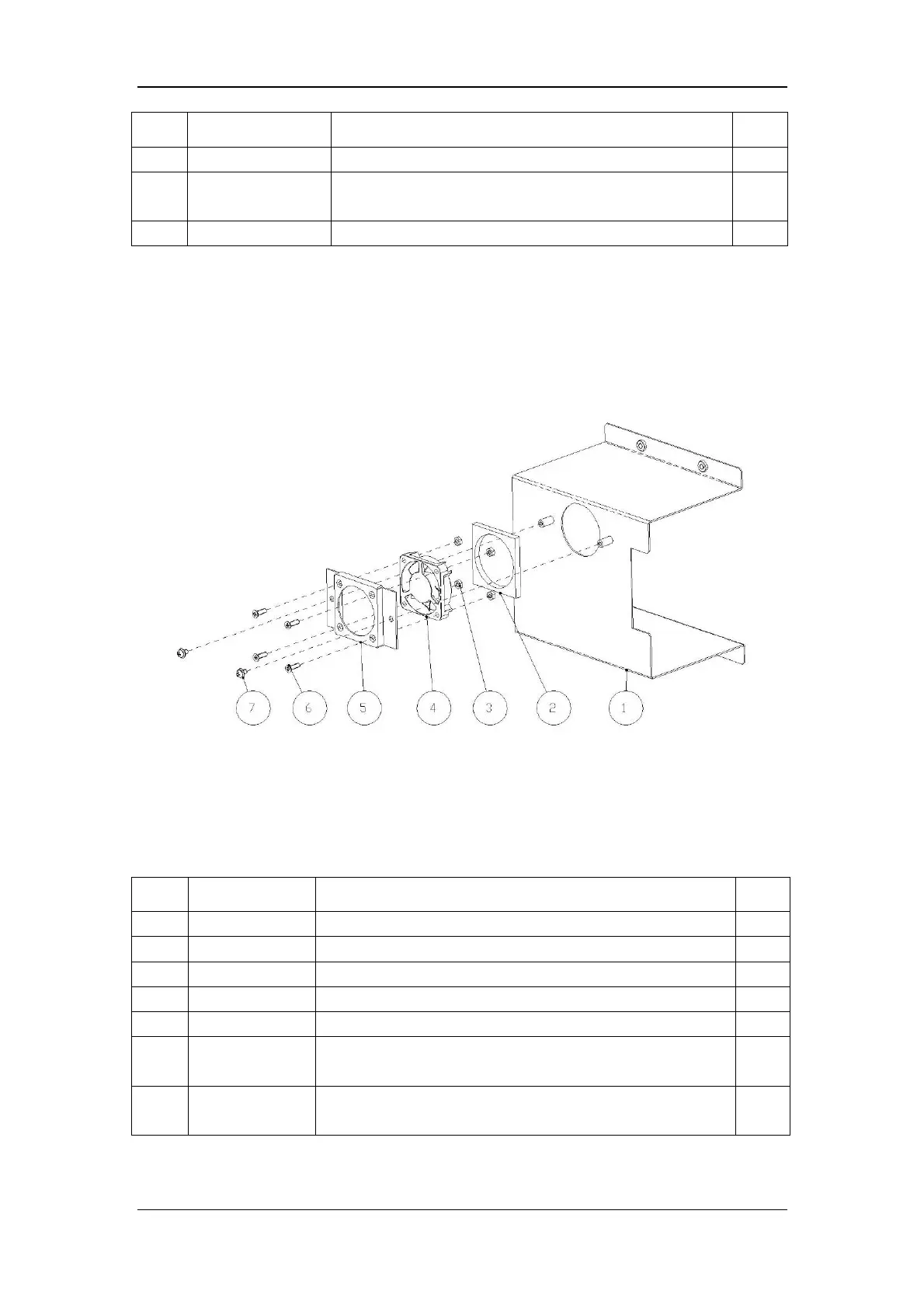

7.1.9.1 Exploded View
7.1.9.2 Parts List
Note: The P/N of this assembly is 0621-30-69590.
S/N P/N Description Qty
1 0621-20-69454 Ground plate of modular rack 1
2 0611-20-58807 Fan cushion 1
3 M04-000301--- Stainless steel hexagon nut GB/T6170-2000 M3 polishing 4
4 0621-20-69412 Fan 1
5 9201-20-35962 Fan mounting plate 1
6 M04-001705--- Cross recessed countersunk head screw GB/T819.1-2000
M3X10 rustproof nickel plating
4
7 M04-051158--- Cross recessed small pan head screw assembly GB/T9074.8
M3X6 rustproof nickel plating
2
