7.1.13 Isolation Transformer Mounting Assembly

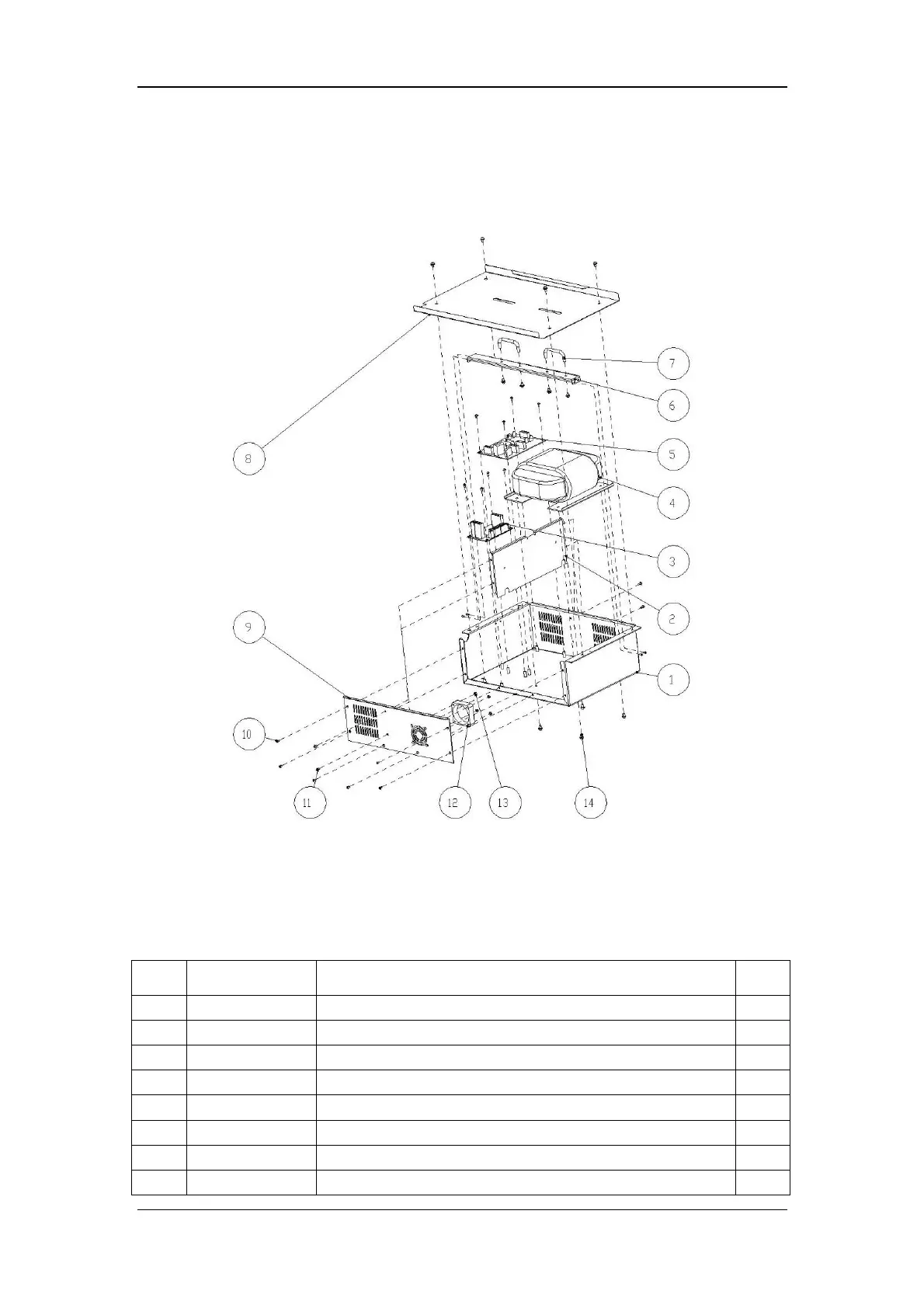

7.1.13.1 Exploded View
7.1.13.2 Parts List
Note: The P/N of this assembly is 0621-30-69592.
S/N P/N Description Qty
1 0621-20-69593 Bottom housing of isolation transformer mounting box 1
2 0621-20-69594 Partition board of isolation transformer mounting box 1
3 0611-30-45408 Power adaptation board (with isolation transformer) 1
4 TSB1-20-20394 Isolation transformer R800 620VA finished goods 1
5 0611-30-45463 Power conversion board (with isolation transformer) 1
6 0621-20-69392 Fixed plate for isolation transformer handle 1
7 2105-20-40482 Handle 2
8 0621-20-69596 Cover plate of isolation transformer mounting box 1
