7.1.8 Modular Rack Assembly

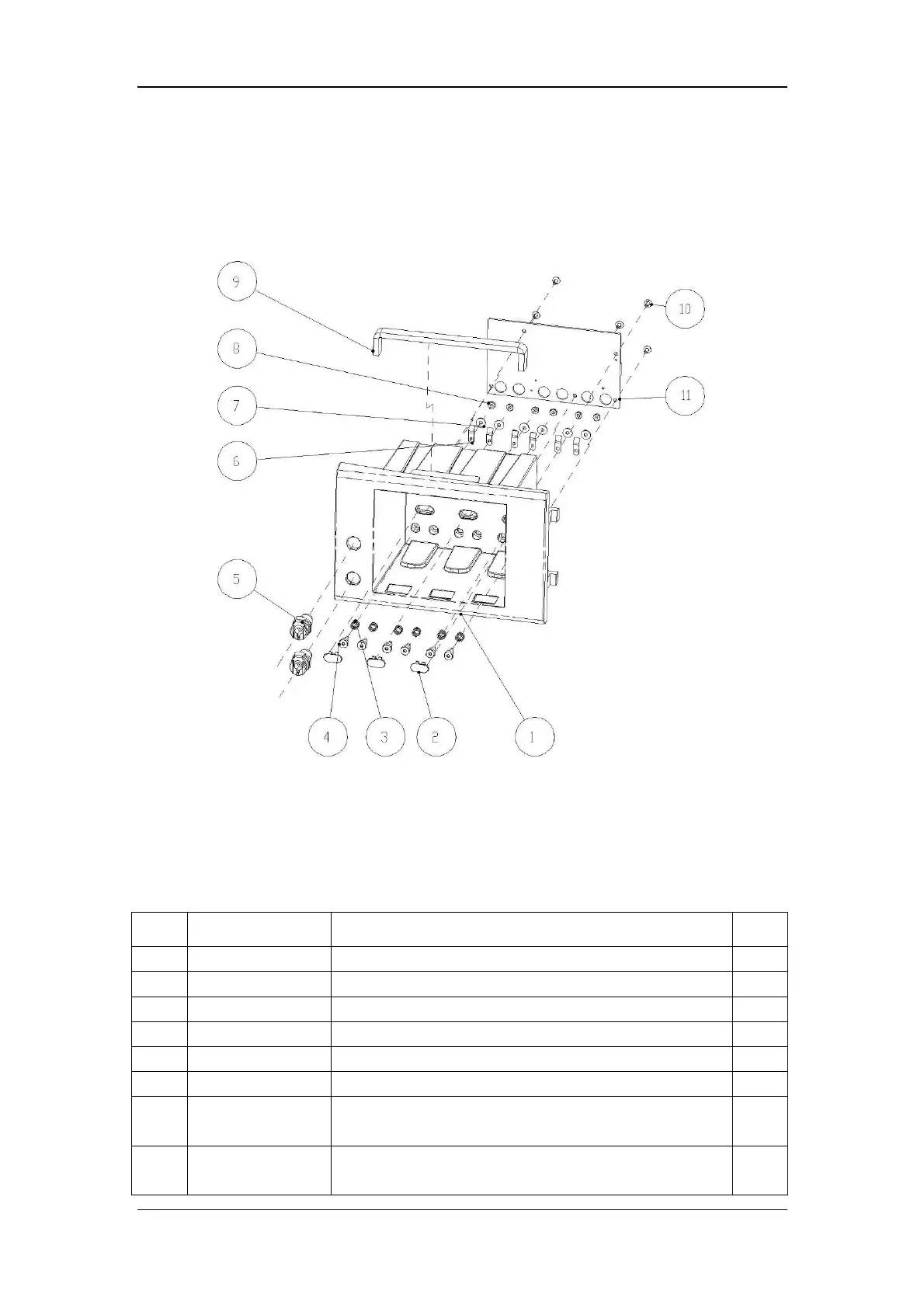

7.1.8.1 Exploded View
7.1.8.2 Parts List
Note: The P/N of this assembly is 0621-30-69414.
S/N P/N Description Qty
1 0621-20-69383-51 Modular rack (mold MR69383) 1
2 6800-20-50279 Infrared eyeglass (mold MR50279) 3
3 6800-20-50261 Contact point spring 6
4 6800-21-51100 Contact point screw 6
5 M6Q-030093--- Connector, easy plug-in and -out, plastic PMCD1601 2
6 6800-20-50388 Shielding finger 6
7 M04-021024--- Plain washer, large series, product grade A
GB/T96.1-20023 rustproof nickel plating
6
8 M04-011002--- Hexagon nut conical lock washer assembly M3 rustproof
nickel plating
6
