7-17
S/N P/N Description Qty
27 M04-021007--- Single coil spring lock washer, normal type GB/T93-1987 5
rustproof nickel plating
4
28 M04-021011--- Plain washer, normal series, product grade A GB/T97.1-20025
rustproof nickel plating
4
7.1.12 Tabletop Operation Console Assembly

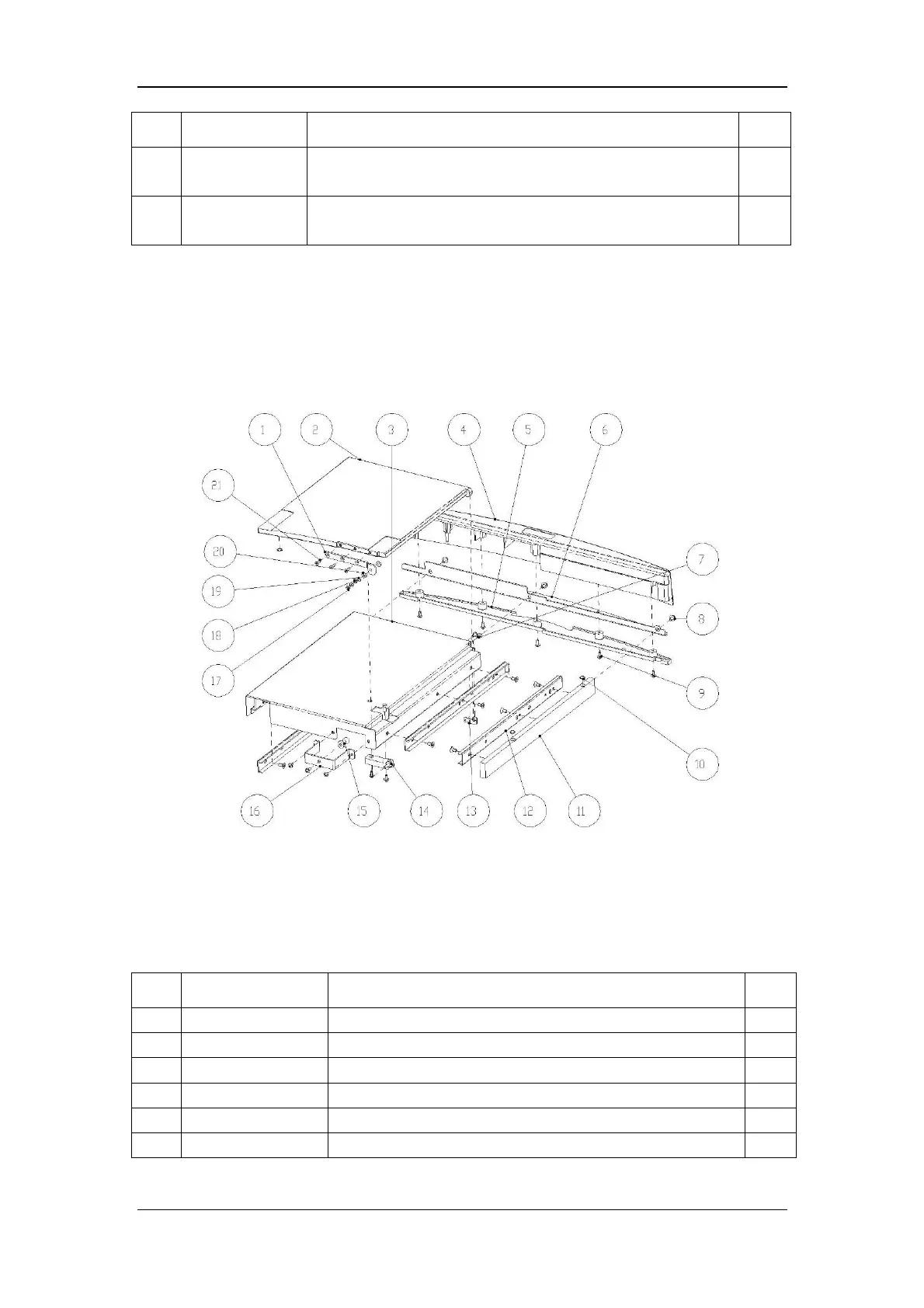

7.1.12.1 Exploded View
7.1.12.2 Parts List
Note: The P/N of this assembly is 0621-30-78580.
S/N P/N Description Qty
1 0621-20-69642-51 Connecting clamp for tabletop rotation axis 1
2 0621-20-69431 Movable operation console 1
3 0621-20-69549-51 Fixed operation console 1
4 0621-20-69428 Operation console panel 1 (mold MR69428) 1
5 0621-20-69429 Operation console panel 2 (mold MR69428) 1
6 0621-20-69551 Connecting bracket for operation console 1
