7-30
3 0010-10-42556 Seal, O-ring 1.5X1 fluororubber A75 brown 2
4 M04-000405--- cross recessed countersunk head screw M3X8 2
5 M04-000104--- Spring washer GB93 3 2
6 0611-20-58716 O2 flush bracket 1
7 M6Q-030020--- Connector, L-shaped connector 3109-06-10 1
8 M6Q-030015--- Connector, straight connector 3175-06-10 1
9 0611-20-58712 O2 flush block 1
7.1.22 ACGO Assembly

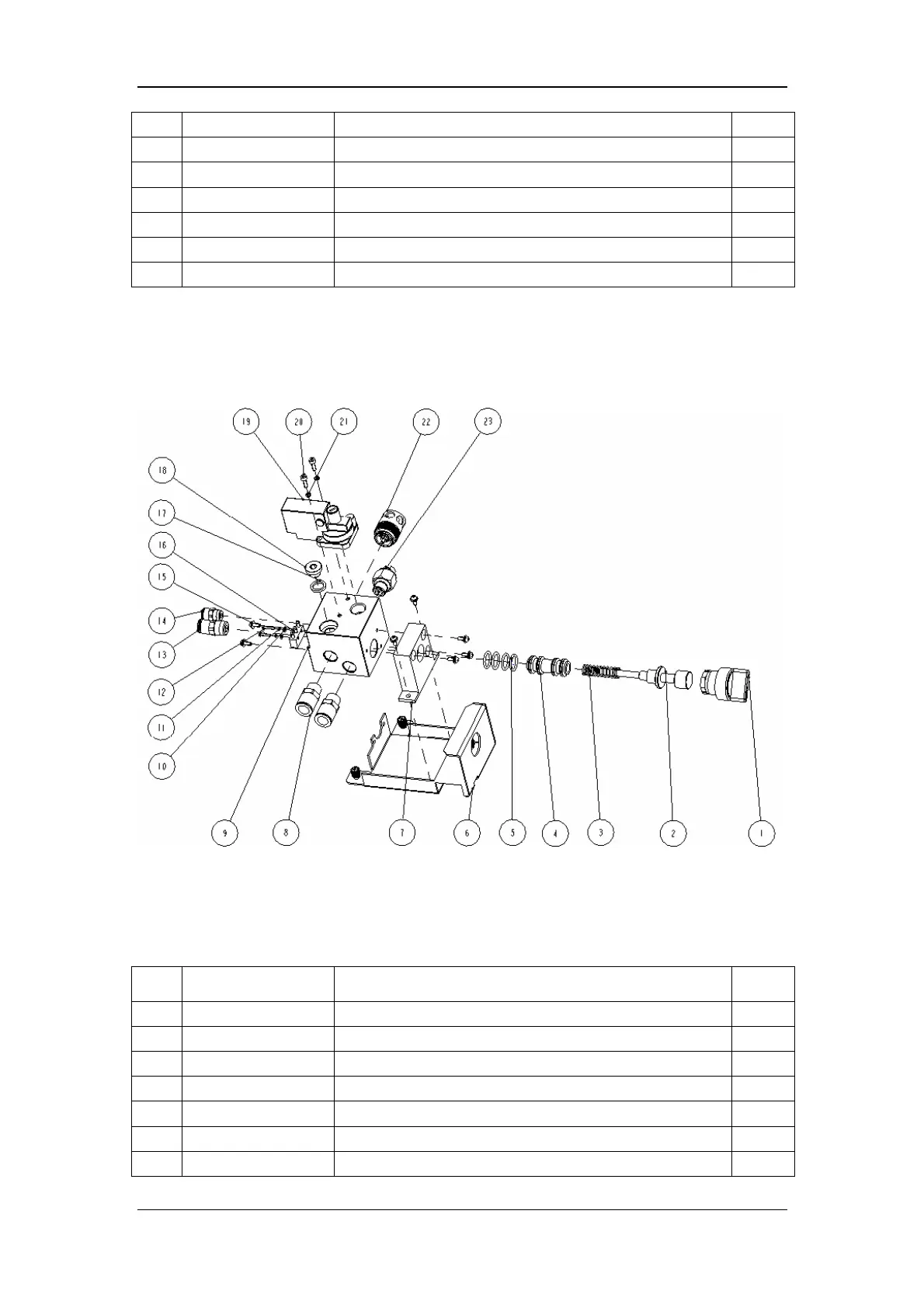

7.1.22.1 Exploded View
7.1.22.2 Parts List
Note: The P/N of this assembly is 0621-30-69416.
S/N P/N Description Qty
1 M6Q-120014--- Rotary switch ZB2-BK127 1
2 C-0621-20-69514 ACGO drive axis 1
3 0611-20-45435 Compression spring 1
4 0611-20-45421 Movable socket 1
5 M6M-010020--- Seal, O-ring 12.42X1.78 EPT A70 black 4
6 0621-20-69512 ACGO base 1
7 0621-20-69513 ACGO positioning block 1
To Next Page
