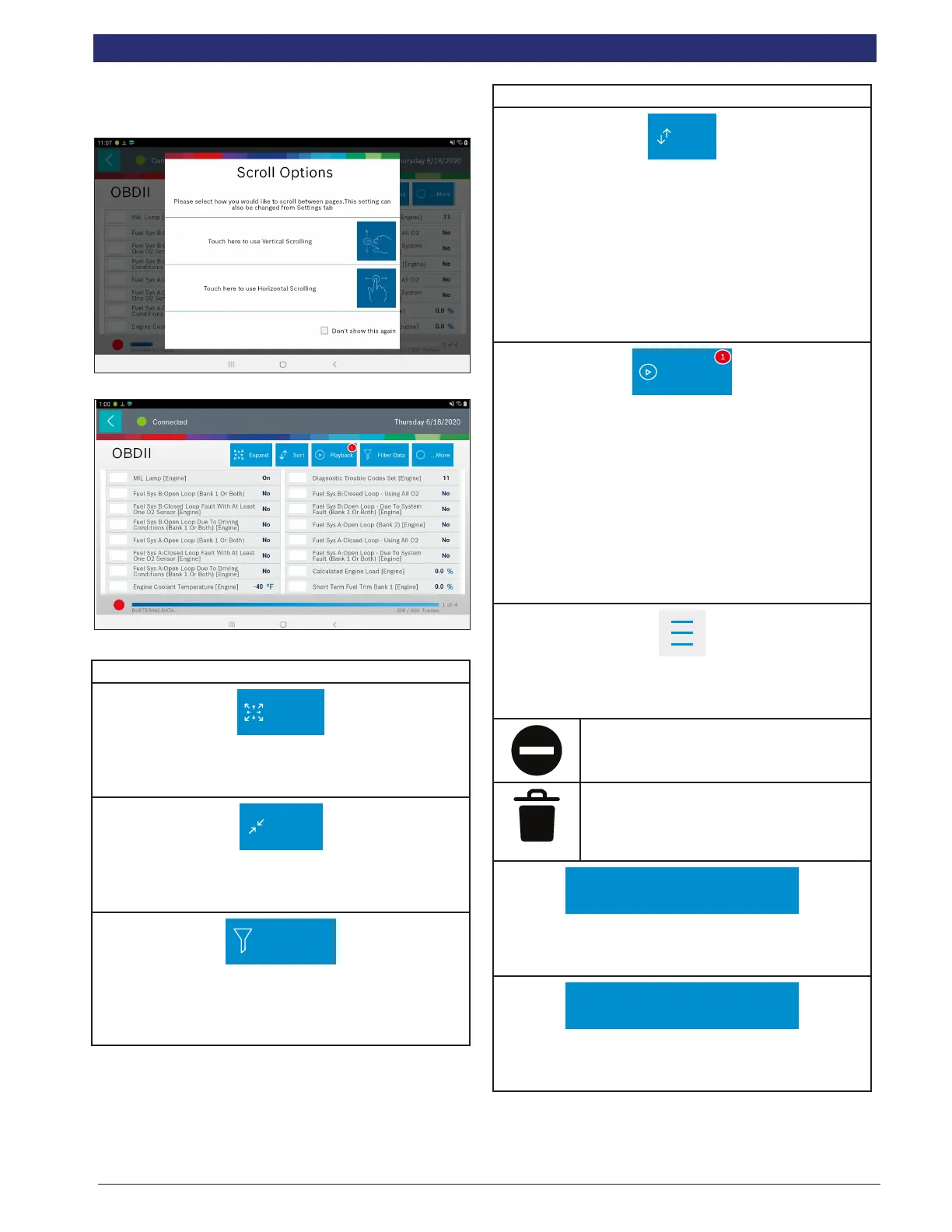

1. Select Data Stream Mode 1 from the Generic OBDII
screen.
2. Select scrolling preference.
3. Follow the prompts on the screen.
Data Stream Button Denitions
Expand
Expand button
To view the data in the enlarge view, press the Expand
button.
Shrink
Shrink Function
To zoom out press the Shrink button.
Filter Data
Customize:
1. Choose only the data you want to view by checking
the box in front of each desired data item.
2. Select the Sort button.
Data Stream Button Denitions
Sort
Sort Function:
• Select Sort to sort data items.
• Data may be sorted alphabetically, by graph, or by
selection (checkbox checked).
• Sorting data items will reset the timeline frame
counter, so sort these items before recording data.
If sorting data while recording the recording will
have a period of time where there is no data avail-
able.
Playback
Playback:
• Select Playback to view previously recorded data
streams.
• Recordings are listed from newest to oldest. When
the folder is full, the newest recording pushes the
oldest one out of the list. Currently, there is no way
to manually delete recordings.
• To view recordings, select the Recordings button
near the top of the display.
• Select the desired recording.
Menu Button
Tapping the Menu button displays a pop-up link that takes
the user to more buttons.
Erase All Recordings.
Clear Data
Select Clear Data to clear displayed data
stream. This function will reset the timeline
frame counter and clear graphed data.
Use Metric Units
Use Metric Units
Selecting Metric Units will switch from English/Standard
Units to Metric Units.
Use English/Standard Units
Use English/Standard Units
Selecting English/Standard Units will switch from Metric
Units to English/Standard Units.
