System
11

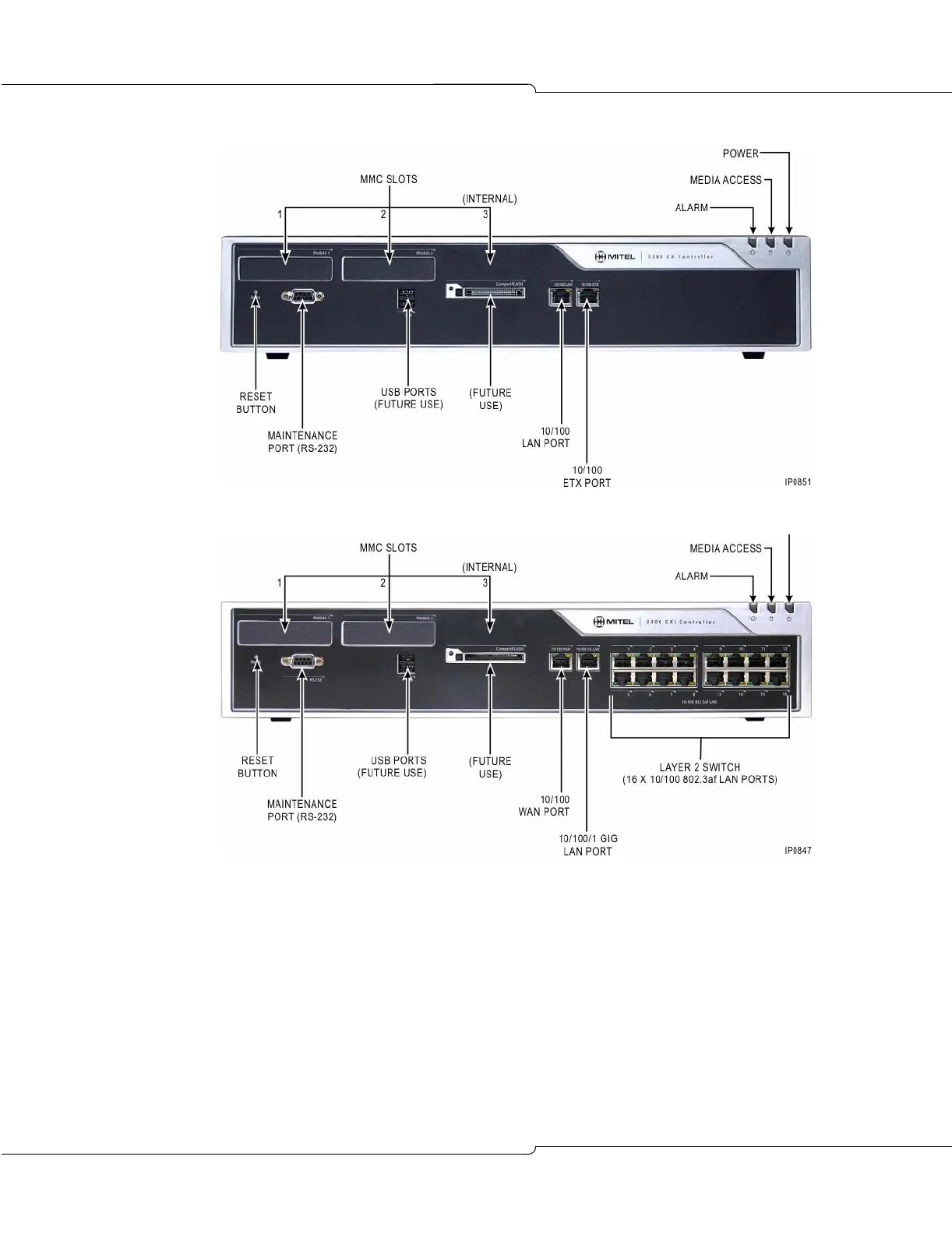

CX Controller Front Panel
CXi Controller Front Panel
The Controller front panel consists of the following components:
• Three slots for expansion modules
• RS-232 maintenance port
• 10/100 BaseT WAN port (RJ-45 connector)
• 10/100/1000 BaseT LAN port (RJ-45 connector)
• CXi only; 16 10/100 BaseT LAN ports connected to an internal Ethernet Layer 2 switch
• Reset pin
• Status LEDs - Ethernet, power, and alarm.
