3300 ICP General Information Guide
12

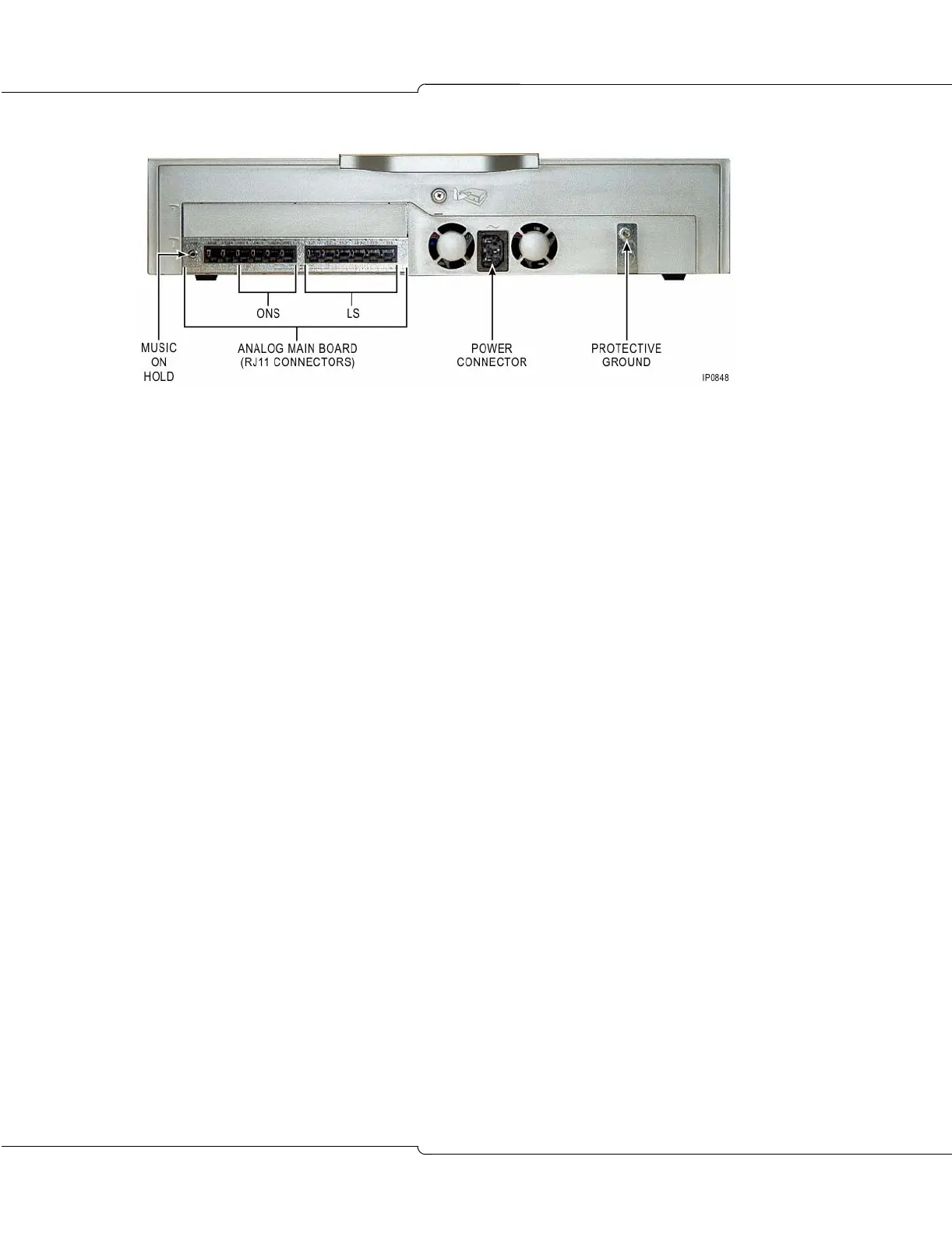

CX and CXi Controller Rear Panel
The Controller rear panel consists of the following components:
• One paging port
• One music on hold (MOH) port
• Input power connector (standard male IEC320 AC)
• Protective ground
• Analog Main Board
• Analog Option Board (optional).
Standard Configuration for CX and CXi Controllers
• One 266 MHz processor
• 256 MB of RAM on the mid-plane
Optional Configuration for CX and CXi Controllers
• DSP module for G.729a compression
• One or two E1/T1 Combo Modules
• One or two Quad BRI Framer modules
• Analog Option Board for additional analog trunks and lines
