11-187 11-187

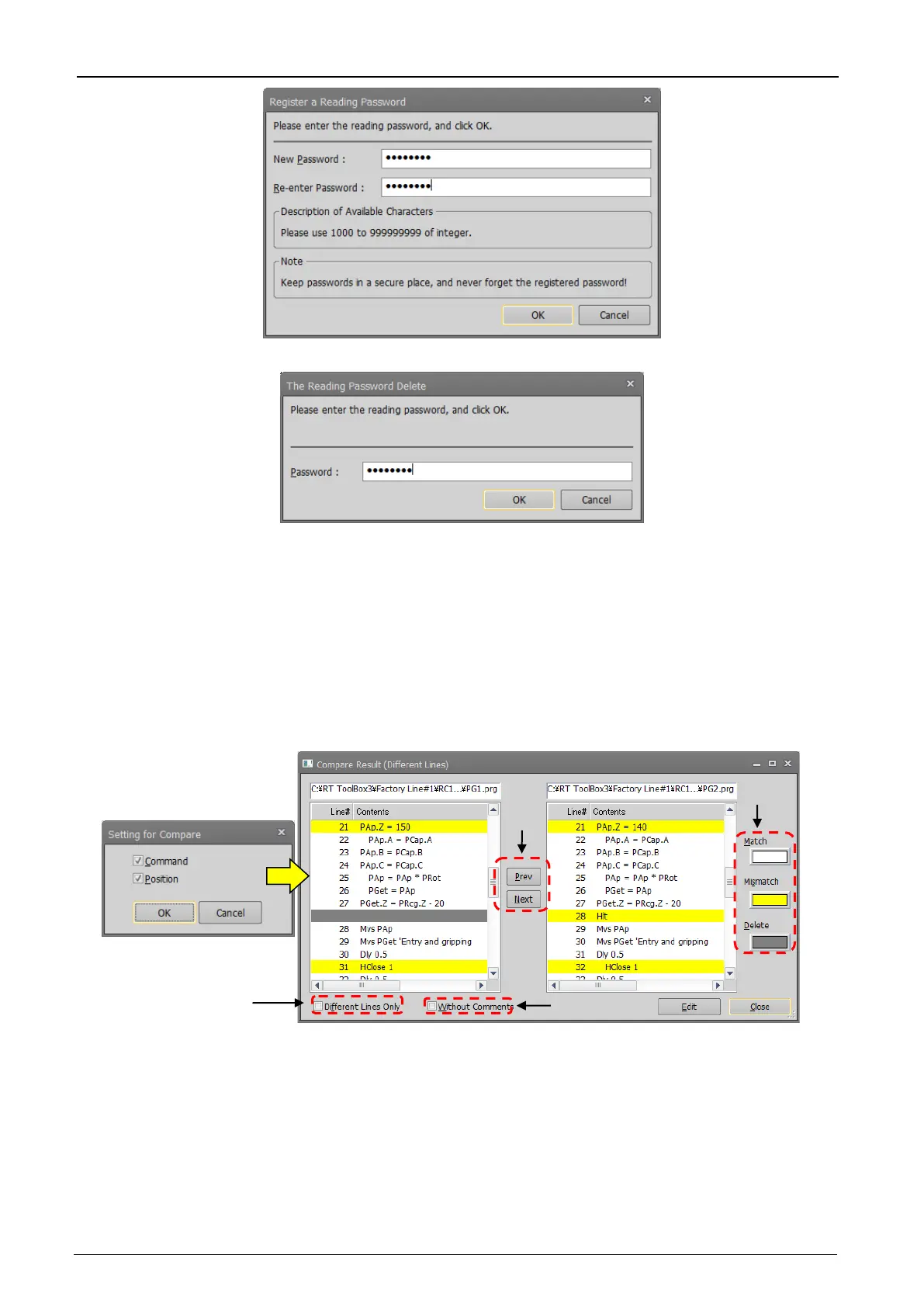

Figure 11-89 Register a reading password Dialog
Figure 11-90 The reading password delete Dialog
11.13.7. Comparison
The program files can be compared. Comparison of only the command statements or only the position variables
is possible. Select the names of the programs to be compared from the left and right lists. A dialog displaying the
corresponding comparison results will appear when the [Compare] button is clicked and the [Setting for compare]
dialog set. The results are shown in the [Compare result] dialog.
The selected program can be opened in the program edit screen by selecting the program line by the list controls
on either the left or right, and clicking the [Edit] button or double-clicking the program line.
Figure 11-91 Program Comparison Settings and Comparison Results
A program which is set with “Read protection” cannot be compared.
