15.4.16. Revision parameter editing
When you select "Edit the value of revision parameter directly" with "15.4.7 Selection of Revision parameter
generation procedure", this screen is displayed.

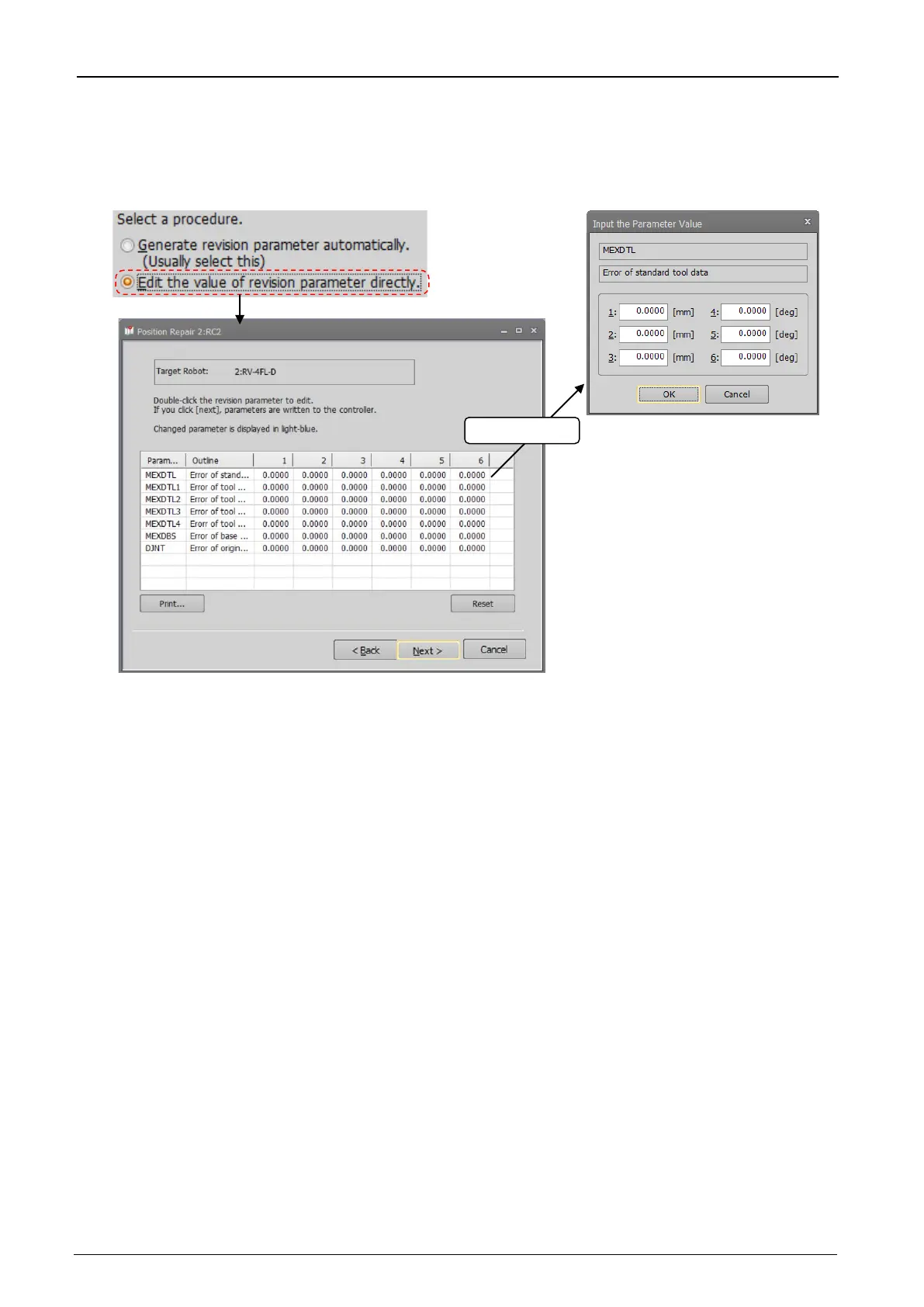

Figure 15-35 Edit Revision Parameters Window
[Print] Print the revision parameter information displayed in the list.
[Reset] Reset all changes.
This displays values of current revision parameters in the robot controller.
Select a parameter from the list and double-click it to display the setting screen. Set the parameter values.
(If the CRn-500 series robot controller version is older than J2, only the origin revision parameter (DJNT) is
shown.)
Click [Next] to write all parameters into the robot controller and proceed to the “Re-start the Power Supply of
the Controller” window.
To Next Page
