21.17. Distance measurement
You can measure the distance between any two points on objects (robots, layouts etc.) displayed in 3D monitor.
To use this function, click the [3D view] tab -> [Tool] group -> [Distance measurement] button on the ribbon. The
"Distance measurement" screen is displayed. Then when you click while entering the space key two points on
objects to be measured, the line and distance (mm) as follows are displayed.
This function can also be used with hand / robot parts / user mech. .

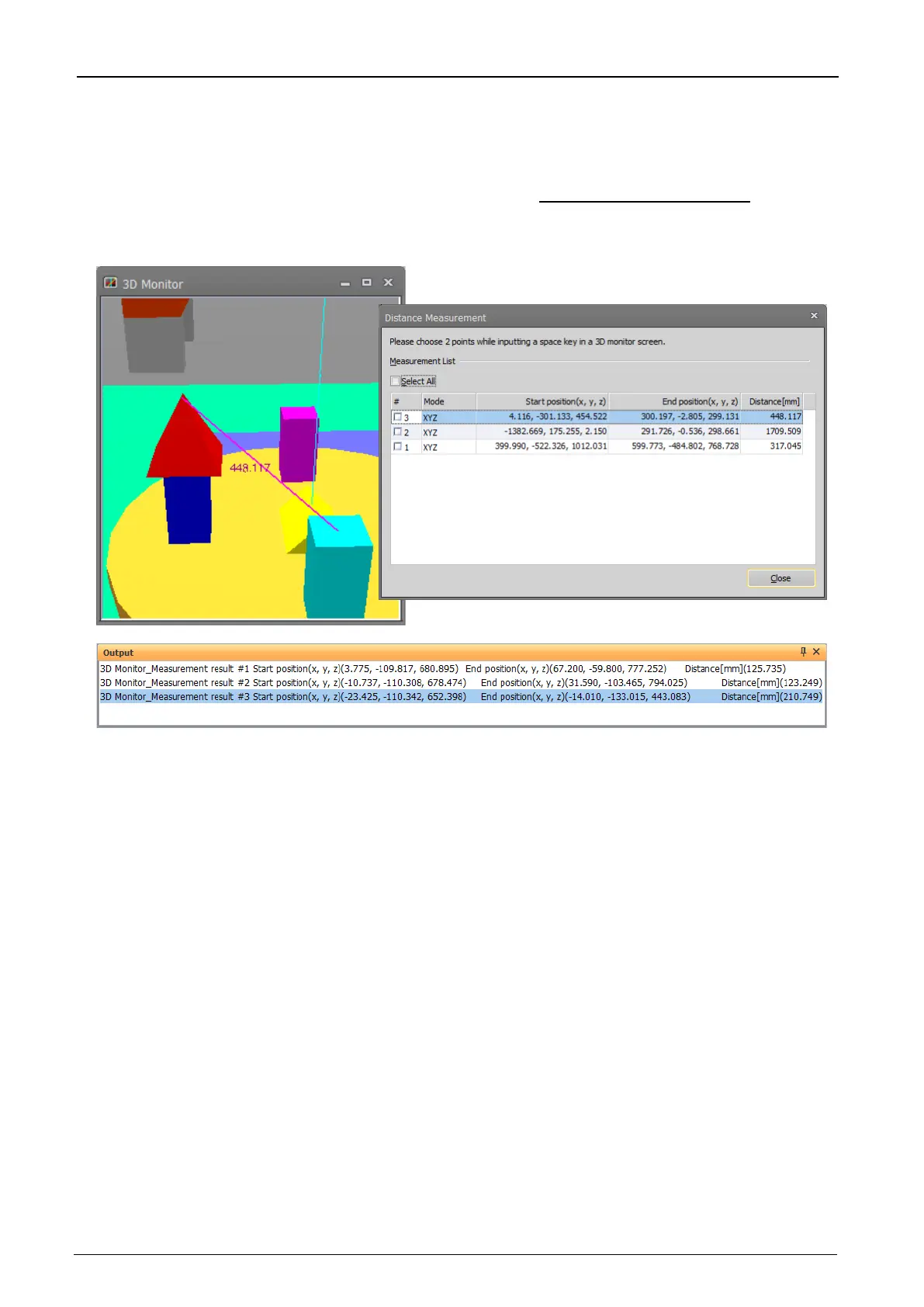

Figure 21-123 Distance measurement between two points
The distance measurement screen displays the history of positions and distances of each measurement. If you
turn ON / OFF a checkbox of each line, you can show / hide the line and the distance of the measurement.
The history keeps during the 3D monitor is opened.
In addition, the measurement result is also displayed in the [Output] window as shown above.
