18.3.2. Editing the user definition screen page
Double-click [Tool] -> [User definition screen] -> [“User definition screen file”] -> [“Page name”] in the project tree.
The edit dialog of the user definition screen is displayed.
When you create a new user definition screen, select [Tool]->[User definition screen] -> [“User definition screen
file”]-in the project tree then click the right mouse button and select "New” in the right button menu. A new “User
definition screen” is displayed.

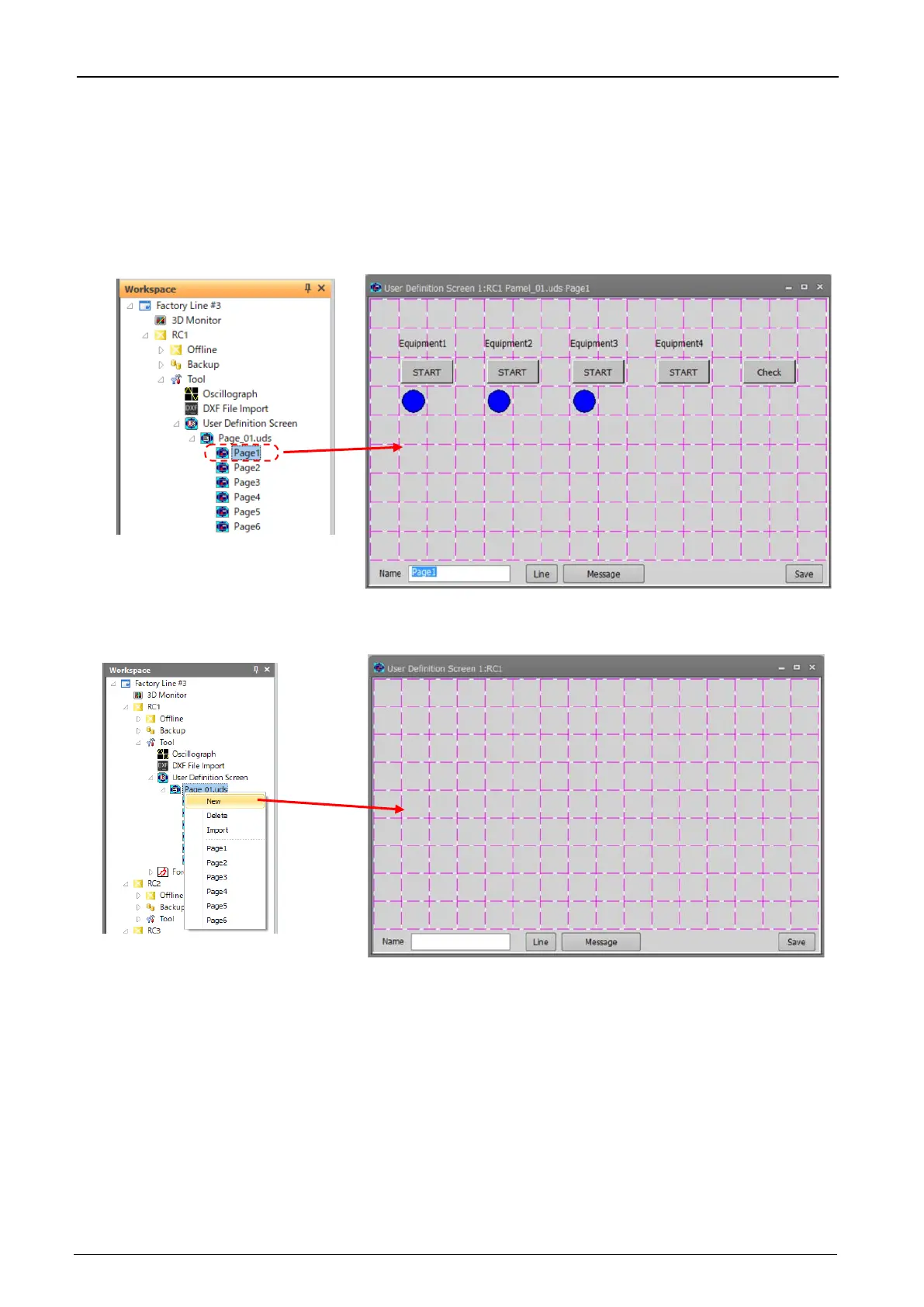

Figure 18-26 Editing the existing user definition screen
Figure 18-27 creating a new user definition screen
