1 FUNCTIONS

1.17 Redundant System Function

235

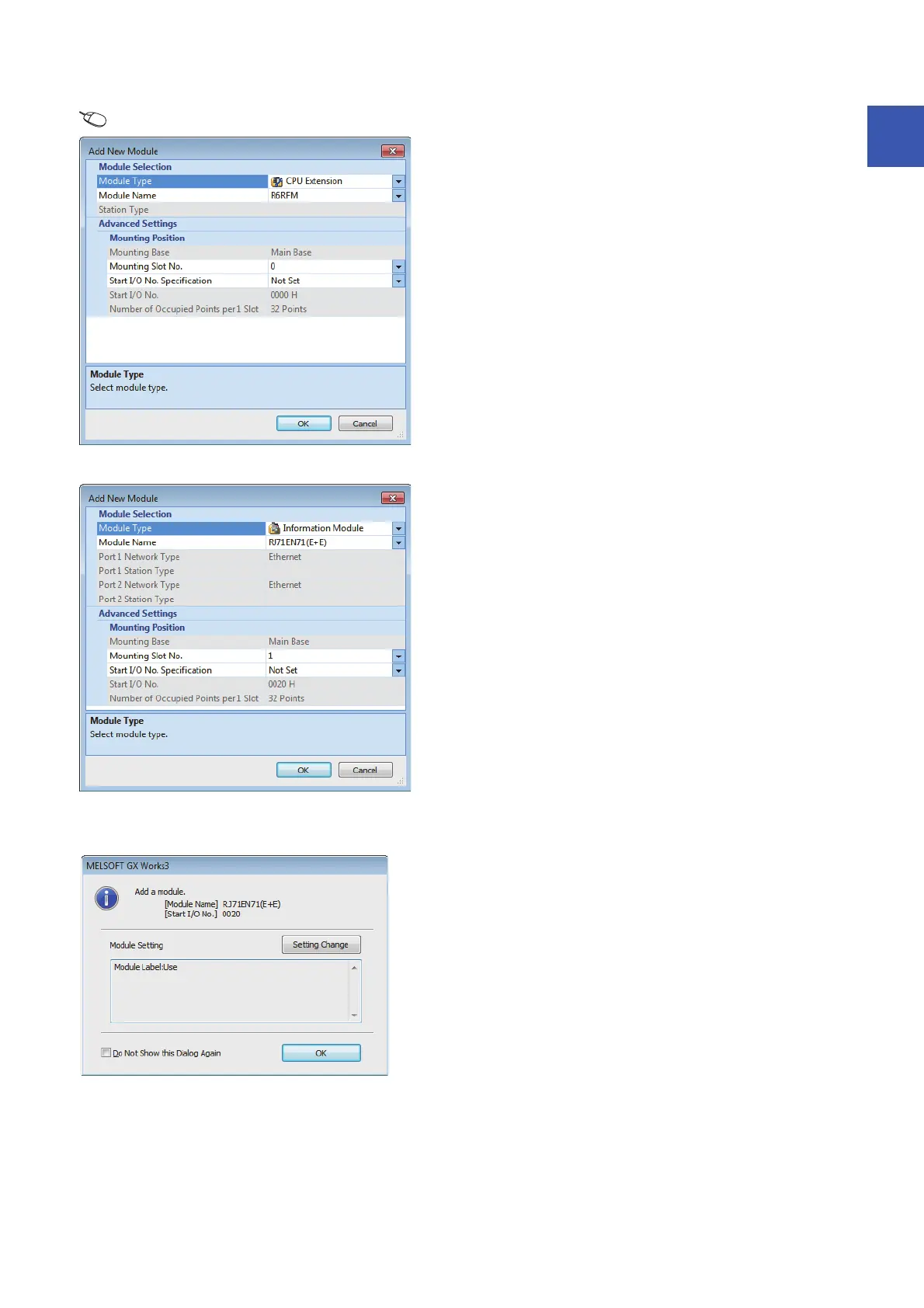

3. In the I/O assignment setting, set the redundant function module for slot No.0.

[Navigation window]  [Parameter]  [System Parameter]  [I/O Assignment] tab  [I/O Assignment Setting]

4. Set the RJ71EN71 for slot No.1

5. Click the [OK] button to add the module labels of the RJ71EN71.
