5 Data set
5.5 Error check
50
FX Configurator-FP
Operation Manual
5.5 Error check
Checking the consistency and the incomplete settings in positioning parameters, servo parameters and table
information.

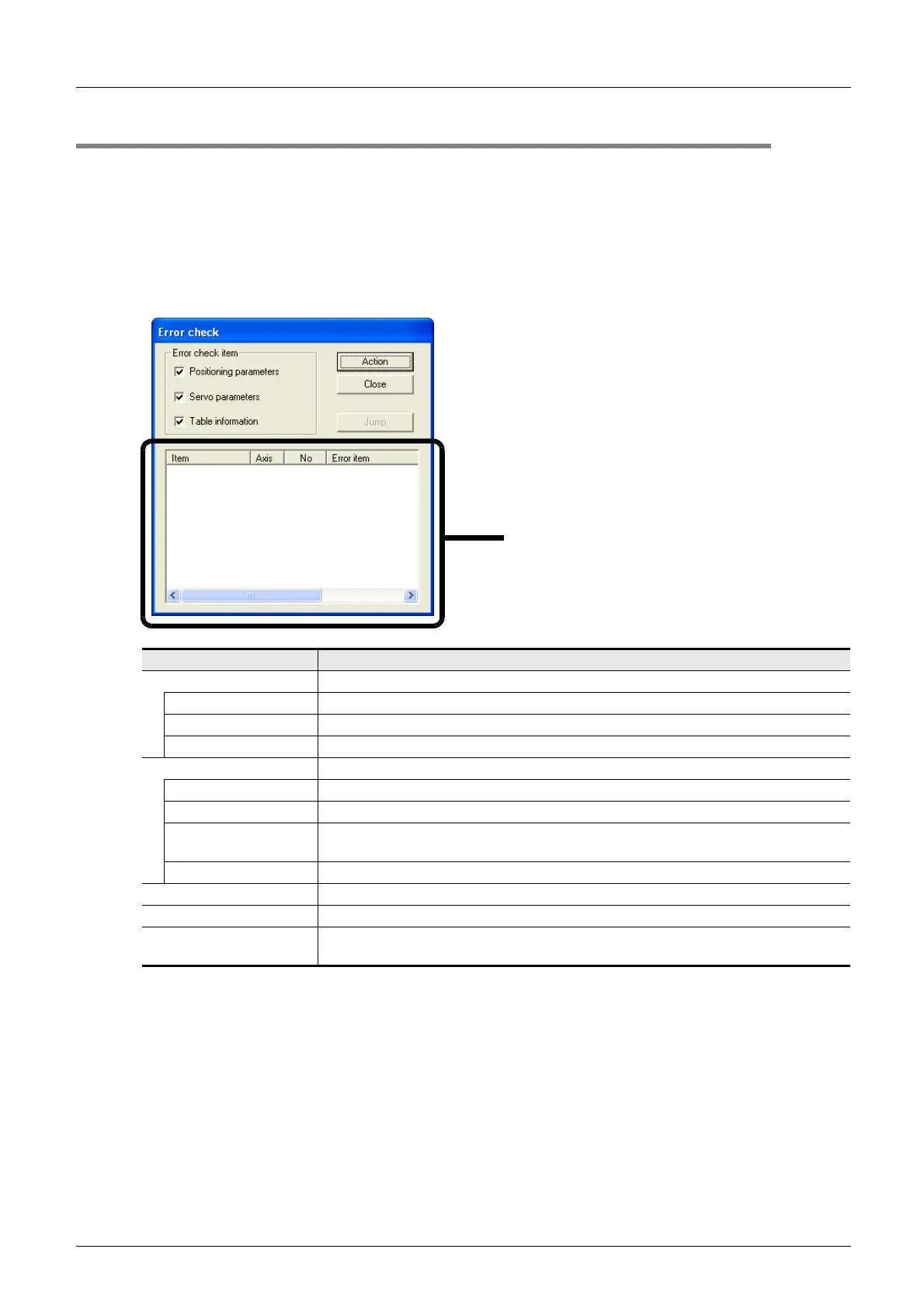

1 Select [Tool]  [Error check].
Error check dialog box appears.
2 Select the item to be checked.
3 Click <Action>.
The error check result of the selected item appears.
Item Description
Error check items Select the item targeted for Error check
Positioning parameters Checks the positioning parameters when ticked off here
Servo parameters Checks the servo parameters when ticked off here
Table information Checks the table information when ticked off here
Error check result Displays the items, axis, No. and error items after the error check
Item Displays the positioning parameter, servo parameter or table information with errors
Axis Displays X, Y, XY-axis with errors
No.
Displays the table information No. with errors
It is blank here when any error in the positioning parameter or servo parameter
Error items Displays the details of the error items
<Action> Executes [Error check]
<Close> Closes the dialog box
<Jump>
Displays the selected error location
Enabled only with error detection
Error check result
